HEADLAMP CLEANER

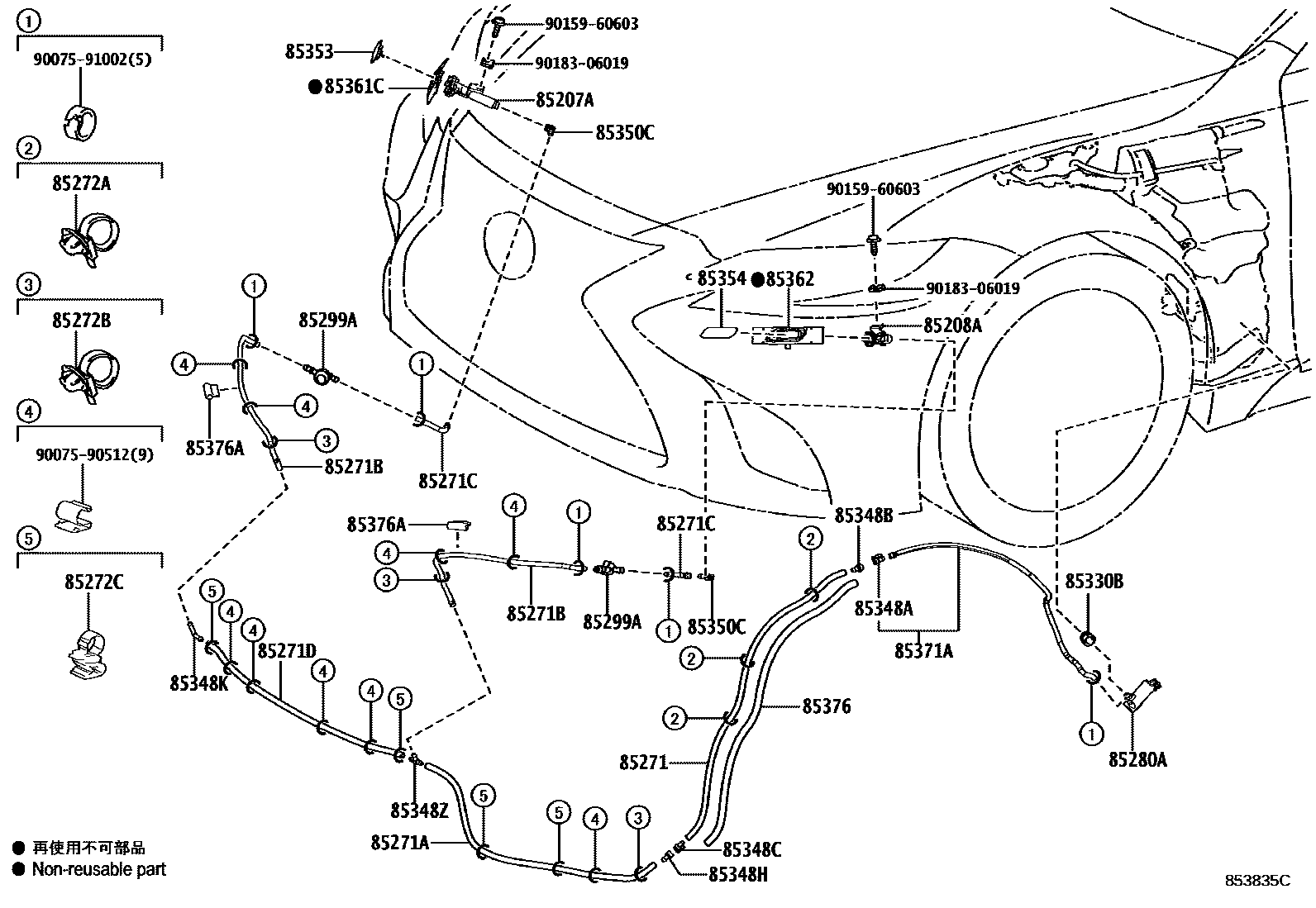

Parts diagram
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
main85207-50080i201710-202010
KOREA SPEC
main85207-50090i202010
COLD AREA SPEC
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
main85208-50080i201710-202010
KOREA SPEC
main85208-50090i202010
COLD AREA SPEC
85271HOSE, HEADLAMP CLEANER, NO.1
main90075-15105i201710-202010
L=750,COLD AREA SPEC
main90075-15107i202111-202510
L=340,LEXUS TEAMMATE
85271AHOSE, HEADLAMP CLEANER, NO.2
main90075-15104i201710-202010
L=700
85271BHOSE, HEADLAMP CLEANER, NO.3
main85275-50060×2i202010
L=630
main90075-15084×2i201710-202010
KOREA SPEC
85271CHOSE, HEADLAMP CLEANER, NO.4
main90075-15055×2i201710-202010
L=100,KOREA SPEC&COLD AREA SPEC
main90075-15103i202010
L=800,COLD AREA SPEC
85271DHOSE, HEADLAMP CLEANER, NO.5
main90075-15103i201710-202010
L=800,KOREA SPEC&COLD AREA SPEC
85272ACLAMP, HEADLAMP CLEANER, NO.1
main82711-16830×3i201710-202010
KOREA SPEC
85272BCLAMP, HEADLAMP CLEANER, NO.2
main82711-16830×3i201710-202010
KOREA SPEC
85272CCLAMP, HEADLAMP CLEANER, NO.3
main82711-45020×4i201710-202010
KOREA SPEC
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
main85280-33030i201710-202010
KOREA SPEC
85299AVALVE ASSY, CHECK
main85376-60A61×2i201710-202010
KOREA SPEC
85330BBUSH, HEADLAMP CLEANER WASHER JAR
main90099-32089i201710-202010
KOREA SPEC
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
main90075-17011i201710-202010
KOREA SPEC
main90075-17009i202111-202510
LEXUS TEAMMATE
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
main90075-17012i201710-202010
KOREA SPEC
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
main90075-17011i201710-202010
KOREA SPEC
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
main90075-17012i201710-202010
KOREA SPEC
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
main90075-17013i201710-202010
KOREA SPEC
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
main90075-17010i202010
COLD AREA SPEC
85350CJOINT, HEADLAMP CLEANER HOSE, NO.6
main90075-17009×2i201710-202010
KOREA SPEC
85353COVER, HEADLAMP WASHER, RH
main85353-50030-A0i201710-202010
WHITE NOVA GF.,083
main85353-50030-A1i201710-202010
KOREA SPEC&COLD AREA SPEC,SONIC QUARTZ,085
main85353-50030-B1i201710-202010
KOREA SPEC,SONIC SILVER,1J2
main85353-50030-B2i201710-202010
SONIC TITANIUM,1J7
main85353-50030-B3i201710-202010
COLD AREA SPEC,MANGANESE LUSTER,1K2
main85353-50030-C0i201710-202010
KOREA SPEC,BLACK,212
main85353-50030-C1i201710-202010
COLD AREA SPEC,GRAPHITE BLACK GF.,223
main85353-50030-D0i201710-202010
KOREA SPEC,RED MC.CS.,3R1
main85353-50030-D2i201710-202010
SONIC AGATE,3U3
main85353-50030-E0i201710-202010
SLEEK ECRU ME.,4U7
main85353-50030-E1i201710-201909
KOREA SPEC&COLD AREA SPEC,AMBER CS.,4X2
main85353-50030-J0i201710-202010
KOREA SPEC&COLD AREA SPEC,HEAT BLUE CONTRAST LAYERI,8X1
main85353-50030-J1i201710-202010
KOREA SPEC&COLD AREA SPEC,DEEP BLUE MC.,8X5
main85353-50040-A0i202010
COLD AREA SPEC,WHITE NOVA GF.,083
main85353-50040-A1i202010
COLD AREA SPEC,SONIC QUARTZ,085
main85353-50040-B0i202010
COLD AREA SPEC,SONIC TITANIUM,1J7
main85353-50040-B1i202010
COLD AREA SPEC,MANGANESE LUSTER,1K2
main85353-50040-B2i202010
COLD AREA SPEC,SONIC IRIDIUM,1L2
main85353-50040-B3i202010
COLD AREA SPEC,I SILVER,1L3
main85353-50040-C0i202010
COLD AREA SPEC,BLACK,212
main85353-50040-C1i202010
COLD AREA SPEC,GRAPHITE BLACK GF.,223
main85353-50040-D0i202010
RED MC.CS.,3R1
main85353-50040-D1i202010
SONIC AGATE,3U3
main85353-50040-J0i202010-202410
COLD AREA SPEC,HEAT BLUE CONTRAST LAYERI,8X1
main85353-50040-J1i202010
COLD AREA SPEC,DEEP BLUE MC.,8X5
85354COVER, HEADLAMP WASHER, LH
main85354-50030-A0i201710-202010
COLD AREA SPEC,WHITE NOVA GF.,083
main85354-50030-A1i201710-202010
KOREA SPEC&COLD AREA SPEC,SONIC QUARTZ,085
main85354-50030-B1i201710-202010
KOREA SPEC,SONIC SILVER,1J2
main85354-50030-B2i201710-202010
COLD AREA SPEC,SONIC TITANIUM,1J7
main85354-50030-B3i201710-202010
COLD AREA SPEC,MANGANESE LUSTER,1K2
main85354-50030-C0i201710-202010
KOREA SPEC,BLACK,212
main85354-50030-C1i201710-202010
COLD AREA SPEC,GRAPHITE BLACK GF.,223
main85354-50030-D0i201710-202010
KOREA SPEC,RED MC.CS.,3R1
main85354-50030-D2i201710-202010
SONIC AGATE,3U3
main85354-50030-E0i201710-202010
SLEEK ECRU ME.,4U7
main85354-50030-E1i201710-201909
KOREA SPEC&COLD AREA SPEC,AMBER CS.,4X2
main85354-50030-J0i201710-202010
KOREA SPEC&COLD AREA SPEC,HEAT BLUE CONTRAST LAYERI,8X1
main85354-50030-J1i201710-202010
KOREA SPEC&COLD AREA SPEC,DEEP BLUE MC.,8X5
main85354-50040-A0i202010
COLD AREA SPEC,WHITE NOVA GF.,083
main85354-50040-A1i202010
COLD AREA SPEC,SONIC QUARTZ,085
main85354-50040-B0i202010
COLD AREA SPEC,SONIC TITANIUM,1J7
main85354-50040-B1i202010
COLD AREA SPEC,MANGANESE LUSTER,1K2
main85354-50040-B2i202010
COLD AREA SPEC,SONIC IRIDIUM,1L2
main85354-50040-B3i202010
COLD AREA SPEC,I SILVER,1L3
main85354-50040-C0i202010
COLD AREA SPEC,BLACK,212
main85354-50040-C1i202010
COLD AREA SPEC,GRAPHITE BLACK GF.,223
main85354-50040-D0i202010
RED MC.CS.,3R1
main85354-50040-D1i202010
SONIC AGATE,3U3
main85354-50040-J0i202010-202410
COLD AREA SPEC,HEAT BLUE CONTRAST LAYERI,8X1
main85354-50040-J1i202010
COLD AREA SPEC,DEEP BLUE MC.,8X5
85361CBRACKET, WASHER
main85361-50070i201710-202010
KOREA SPEC
main85361-50090i202010
COLD AREA SPEC
85362BRACKET, WASHER, NO.2
main85362-50030i202010
COLD AREA SPEC
main85362-50070i201710-202010
KOREA SPEC
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
main85291-50150i202010
COLD AREA SPEC&LEXUS SAFETY SYSTEM+A
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
main85295-50010i201710-202004
KOREA SPEC
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
main85277-50040×2i201710-202004
KOREA SPEC
9007590512
main90075-90512
9007591002
main90075-91002
9015960603
main90159-60603
9018306019
main90183-06019

31 parts on this diagram · 4 diagrams in section
