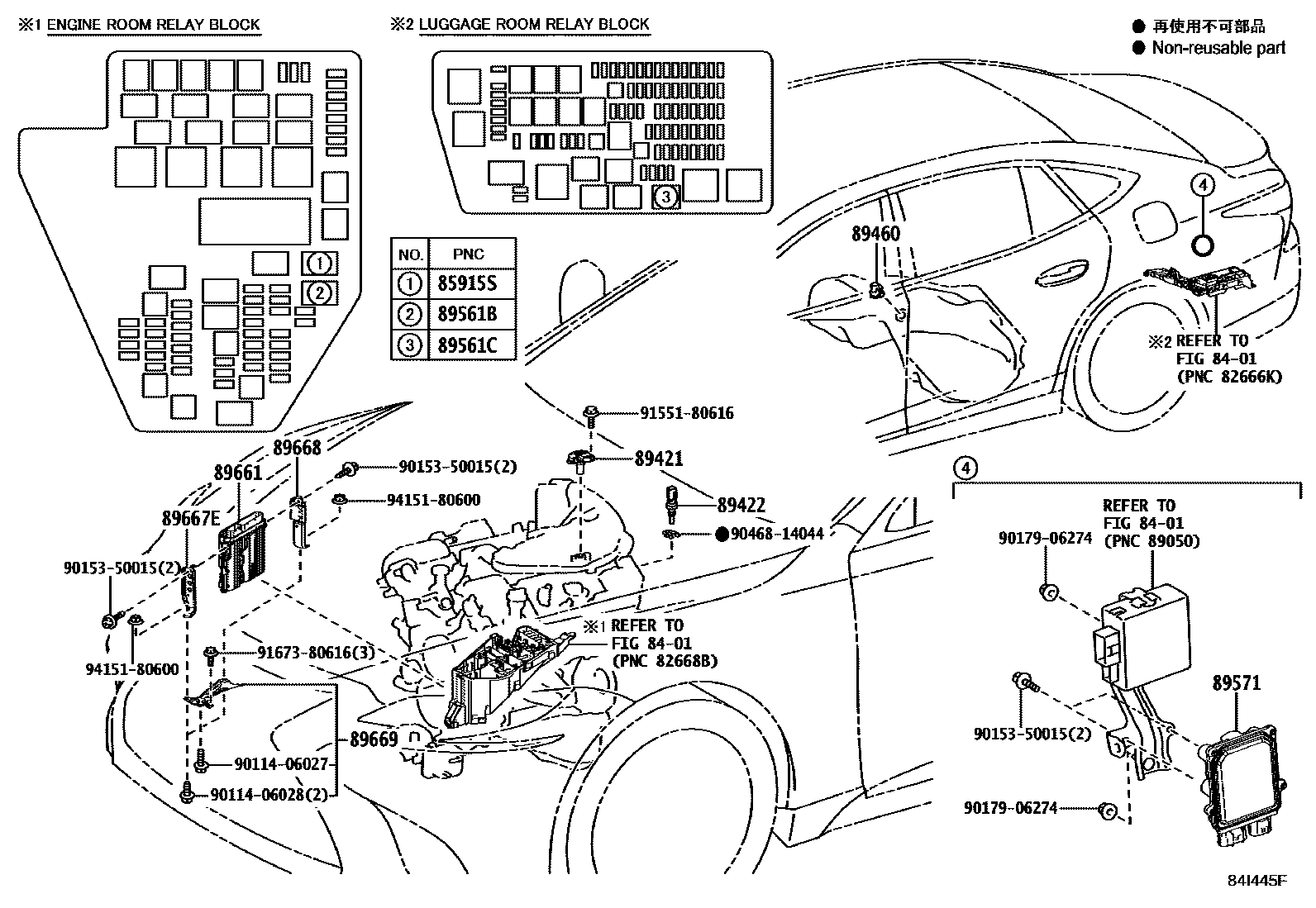

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02025iVXFA5#201712-202010

main90987-02027iGVF55201710-202310

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iVXFA5#201712-202010

main89421-47010iGVF5#201710-202310

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iVXFA5#201712-202010

main89422-47010iGVF50201710-202310

89460SENSOR ASSY, VAPOR PRESSURE

main89461-48020iGVF50201710-202310

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02025iVXFA5#201712-202010

main90987-02027iGVF55201710-202310

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iGVF55,VXFA5#201710-202310

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGVF5#,VXFA5#201710-202005

main89571-58020iGVF5#,VXFA5#202005-202310

89661COMPUTER, ENGINE CONTROL

main89661-50J50iVXFA50202111-202201

DENSO

sub89661-50J51

main89661-50J51iVXFA50202202-202205

DENSO

sub89661-50J52

main89661-50J52iVXFA50202206-202210

DENSO

main89661-50J61iVXFA50201809-201909

DENSO

sub89661-50J62

main89661-50K10iVXFA50201909-202005

DENSO

sub89661-50K11

main89661-50K11iVXFA50202006-202010

DENSO

main89661-50K30iVXFA55201909-202005

DENSO

sub89661-50K31

main89661-50K31iVXFA55202006-202010

DENSO

main89661-50N80iGVF50201710-201804

DENSO

sub89661-50N81

main89661-50N81iGVF50201805-201809

DENSO

sub89661-50N82

main89661-50P60iGVF55201710-201804

DENSO

sub89661-50P61

main89661-50P61iGVF55201805-201809

DENSO

sub89661-50P62

main89661-50R30iGVF50201909-202010

DENSO

main89661-50R40iGVF55201909-202010

DENSO

main89661-50R70iVXFA50202010-202111

DENSO

sub89661-50R71

main89661-50R80iVXFA55202010-202111

DENSO

sub89661-50R81

main89661-50S30iVXFA50201712-201802

DENSO

sub89661-50S31

main89661-50S31iVXFA50201803-201809

DENSO

sub89661-50S32

main89661-50S90iVXFA55201712-201802

DENSO

sub89661-50S91

main89661-50S91iVXFA55201803-201809

DENSO

sub89661-50S92

main89661-50U10iGVF50201809-201909

DENSO

sub89661-50U11

main89661-50U20iGVF55201809-201909

DENSO

sub89661-50U21

main89661-50U90iVXFA55202111-202201

DENSO

sub89661-50U91

main89661-50U91iVXFA55202202-202205

DENSO

sub89661-50U92

main89661-50U92iVXFA55202206-202210

DENSO

main89661-50V01iVXFA55201809-201909

DENSO

sub89661-50V02

main89661-50W80iGVF50202010-202310

DENSO

main89661-50W90iGVF55202010-202310

DENSO

main89661-50Z40iVXFA50202210-202310

DENSO

main89661-50Z50iVXFA55202210-202310

DENSO

main89661-5A070iVXFA5#202310

DENSO

main89661-5A080iGVF55202310-202411

DENSO

main89661-5A081iGVF55202412

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11030iGVF5#201710-202310

main89667-50090iVXFA5#201712-202010

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11030iGVF50201710-202310

main89668-50080iVXFA5#201712-202010

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11010iVXFA5#201712-202010

main89669-11030iGVF50201710-202310

9011406027

main90114-06027

9011406028

main90114-06028

9015350015

main90153-50015

9017906274

main90179-06274

9046814044

main90468-14044

9155180616

main91551-80616

9167380616

main91673-80616

9415180600

main94151-80600

20 parts on this diagram · 2 diagrams in section
