HEADLAMP

0001 1W/O(KOREA SPEC) 0002 1W/O(KOREA SPEC) 0003 1W(KOREA SPEC) 0004 1W(KOREA SPEC)

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-50C20iGVF5#,VXFA5#201710-202010

main81016-50D00iGVF5#,VXFA5#201710-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main81016-50D40iGVF5#,VXFA5#202010-202310

main81016-50D60iGVF50,VXFA50202010-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81016-50D80iGVF55,VXFA55202010-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

main81016-50E30iGVF55202310-202510

LEXUS TEAMMATE

main81016-50E50iGVF55202310-202510

main81016-50E60iVXFA55202310-202510

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81016-50E80iVXFA55202310-202510

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-50B30iGVF55202310-202510

LEXUS TEAMMATE

main81056-50B50iVXFA5#202310-202510

main81056-50B60iVXFA55202310-202510

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81056-50B80iVXFA55202310-202510

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

main81056-50C20iGVF5#,VXFA5#201710-202010

main81056-50D00iGVF5#,VXFA5#201710-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main81056-50D40iGVF5#,VXFA5#202010-202310

main81056-50D60iGVF5#,VXFA5#202010-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81056-50D80iGVF50,VXFA50202010-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

81134GASKET, HEADLAMP

main90075-23003iGVF55,VXFA5#201710-202310

main90075-23003iGVF55,VXFA55202305-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

81135UNIT ASSY, HEADLAMP, RH

main81145-50C20iGVF5#,VXFA5#201710-202010

main81145-50C80iGVF5#,VXFA5#201710-201909

KOREA SPEC

main81145-50C81iGVF5#,VXFA5#201909-202010

KOREA SPEC

main81145-50D00iGVF5#,VXFA5#201710-201909

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

sub81145-50D01

main81145-50D01iGVF5#,VXFA5#201909-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main81145-50D40iGVF5#,VXFA5#202010-202111

main81145-50D41iGVF5#,VXFA5#202111-202209

sub81145-50D42

main81145-50D42iGVF5#,VXFA5#202209-202310

main81145-50D60iGVF5#,VXFA5#202010-202111

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81145-50D61iGVF5#,VXFA5#202111-202209

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

sub81145-50D62

main81145-50D62iGVF55,VXFA55202209-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81145-50D80iGVF5#,VXFA5#202010-202111

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

main81145-50D81iGVF5#,VXFA5#202111-202209

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

sub81145-50D82

main81145-50D82iGVF55,VXFA55202209-202305

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

sub81145-50D83

main81145-50D83iGVF55,VXFA55202305-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

main81145-50E30iGVF55202310-202510

LEXUS TEAMMATE

main81145-50E50iGVF55202310-202510

main81145-50E60iGVF55202310-202510

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81145-50E80iVXFA55202310-202510

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

81136HRIM, HEADLAMP FITTING, RH NO.1

main81136-50C20iGVF5#,VXFA5#201710-202010

81137CRIM, HEADLAMP FITTING, RH NO.2

main81137-50C20iGVF5#,VXFA5#201710-202010

81175UNIT ASSY, HEADLAMP, LH

main81185-50B30iGVF55202310-202510

LEXUS TEAMMATE

main81185-50B50iGVF55202310-202510

main81185-50B60iGVF55202310-202510

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81185-50B80iVXFA55202310-202510

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

main81185-50C20iGVF5#,VXFA5#201710-202010

main81185-50C80iGVF5#,VXFA5#201710-201909

KOREA SPEC

main81185-50C81iGVF5#,VXFA5#201909-202010

KOREA SPEC

main81185-50D00iGVF5#,VXFA5#201710-201909

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

sub81185-50D01

main81185-50D01iGVF5#,VXFA5#201909-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main81185-50D40iGVF5#,VXFA5#202010-202111

main81185-50D41iGVF5#,VXFA5#202111-202209

sub81185-50D42

main81185-50D42iGVF5#,VXFA5#202209-202310

main81185-50D60iGVF5#,VXFA5#202010-202111

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81185-50D61iGVF5#,VXFA5#202111-202209

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

sub81185-50D62

main81185-50D62iGVF55,VXFA55202209-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHB)

main81185-50D80iGVF5#,VXFA5#202010-202111

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

main81185-50D81iGVF5#,VXFA5#202111-202209

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

sub81185-50D82

main81185-50D82iGVF55,VXFA55202209-202305

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

sub81185-50D83

main81185-50D83iGVF55,VXFA55202305-202310

KOREA SPEC&HEADLAMP-LED, WITH(*AHS)

81176DRIM, HEADLAMP FITTING, LH NO.1

main81176-50C20iGVF5#,VXFA5#201710-202010

81177BRIM, HEADLAMP FITTING, LH NO.2

main81177-50C20iGVF5#,VXFA5#201710-202010

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-50060iGVF50201710-202310

81193APROTECTOR, HEADLAMP, RH

main81117-50C20iGVF50201710-202310

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-50050iGVF50201710-202310

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-50050iGVF5#,VXFA5#201710-202310

81194APROTECTOR, HEADLAMP, LH

main81157-50C20iGVF50201710-202310

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-50030iGVF50201710-202310

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-50040iGVF5#,VXFA5#201710-202310

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-50030iGVF5#,VXFA5#201710-202310

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-50040iGVF5#,VXFA5#201710-202310

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-50030iGVF5#,VXFA5#201710-202310

9007502056

main90075-02056

9007502071

main90075-02071

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

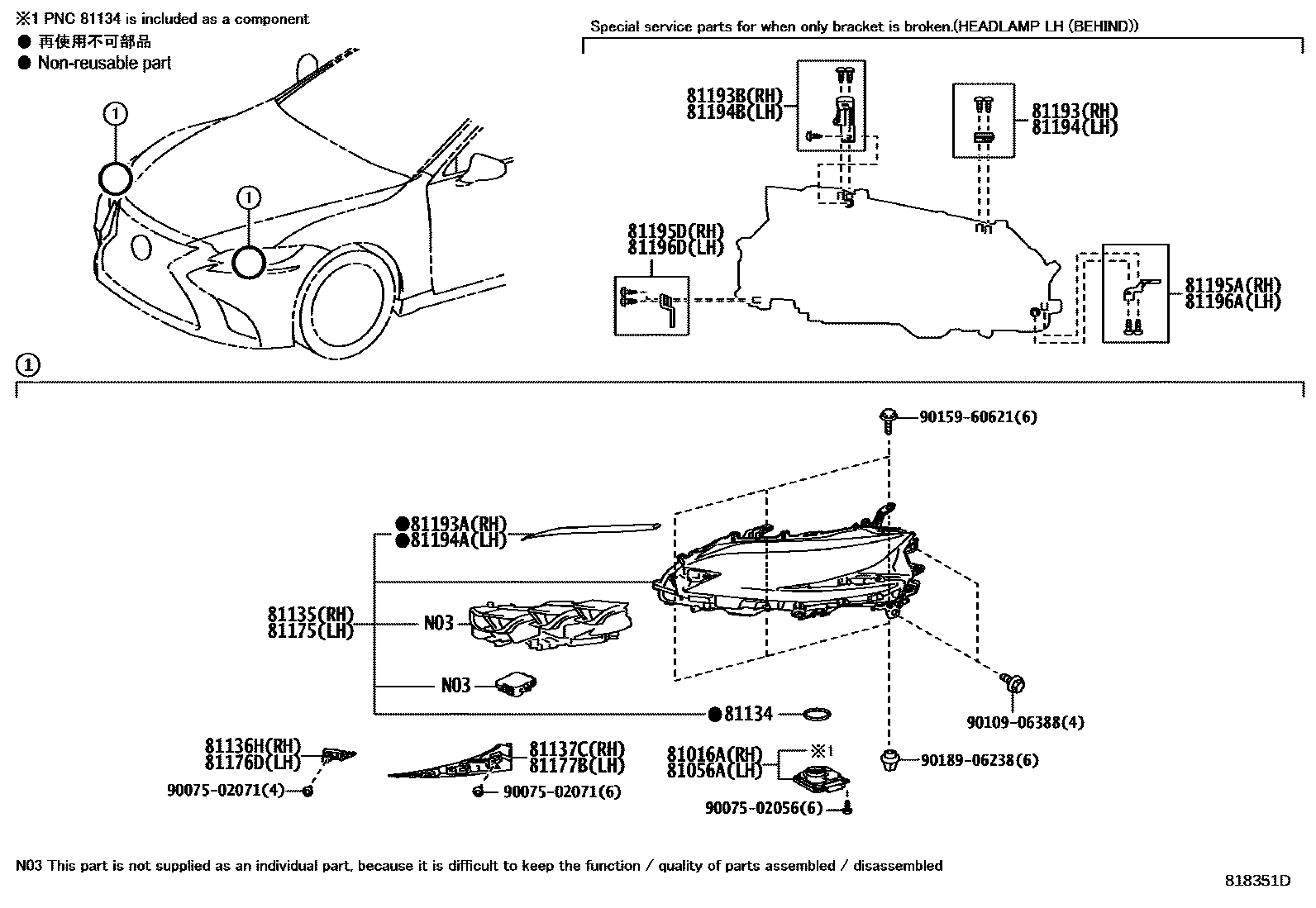

24 parts on this diagram · 4 diagrams in section
