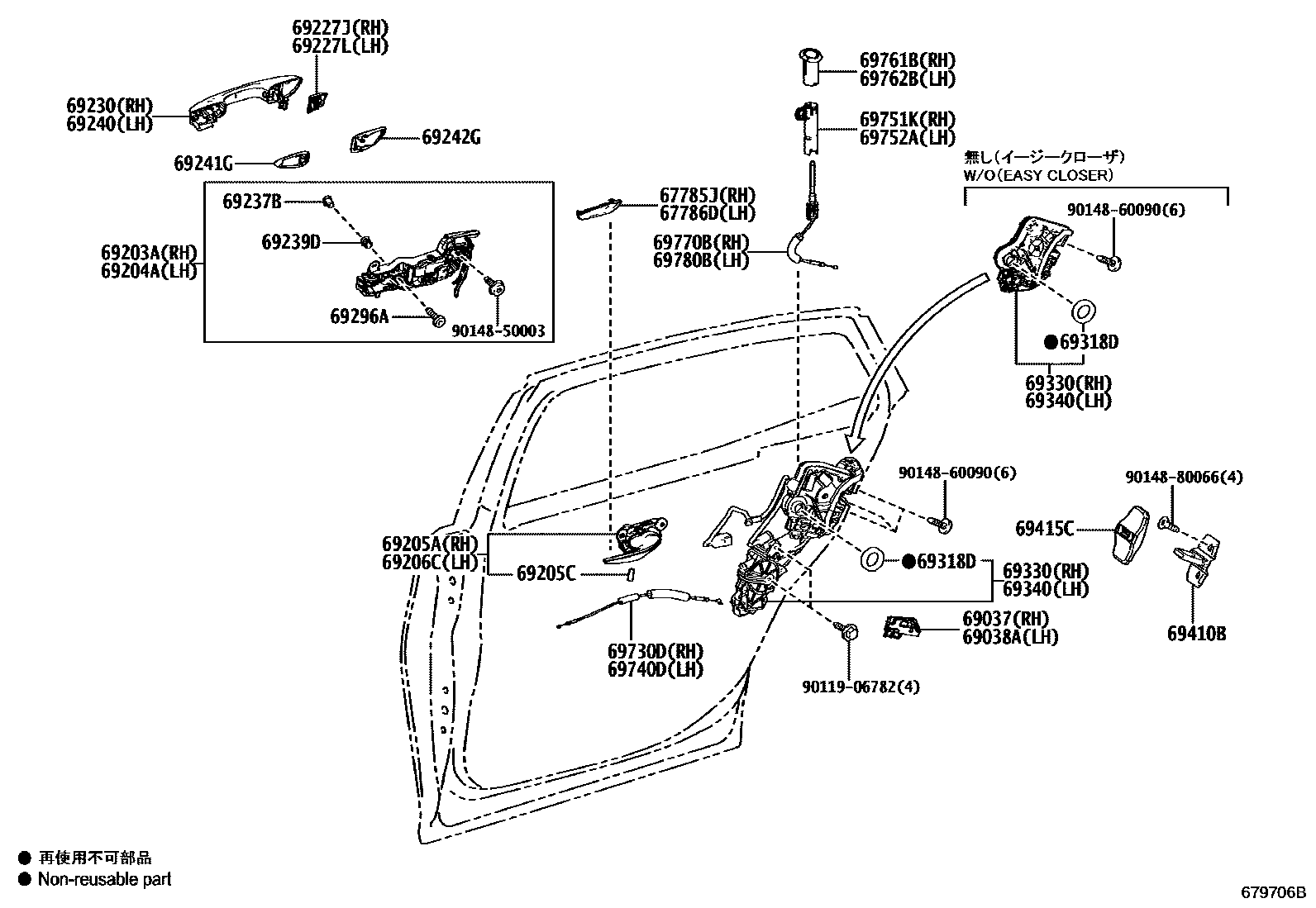

REAR DOOR LOCK & HANDLE
67785JCOVER, REAR DOOR TRIM, UPPER RH
67786DCOVER, REAR DOOR TRIM, UPPER LH
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
I SILVER,1L3
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
I SILVER,1L3
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69751KHOLDER, DOOR LOCK CONTROL KNOB, RH
69752AHOLDER, DOOR LOCK CONTROL KNOB, LH
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
BLACK,TRIM0#,1#,2#,36,38,4#,5#
BLACK,TRIM0#,1#,2#,32,36,38,4#,5#
BLACK,TRIM00,06,2#,36,53
CRIMSON,TRIM30,37
CRIMSON,TRIM30,33
NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
BLACK,TRIM0#,1#,2#,32,36,38,4#,5#
BLACK,TRIM00,06,2#,36,53
BLACK,TRIM0#,1#,2#,36,38,4#,5#
CRIMSON,TRIM30,33
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9011906782
main90119-06782
9014850003
main90148-50003
9014860090
main90148-60090
9014880066
main90148-80066
35 parts on this diagram · 1 diagram in section
