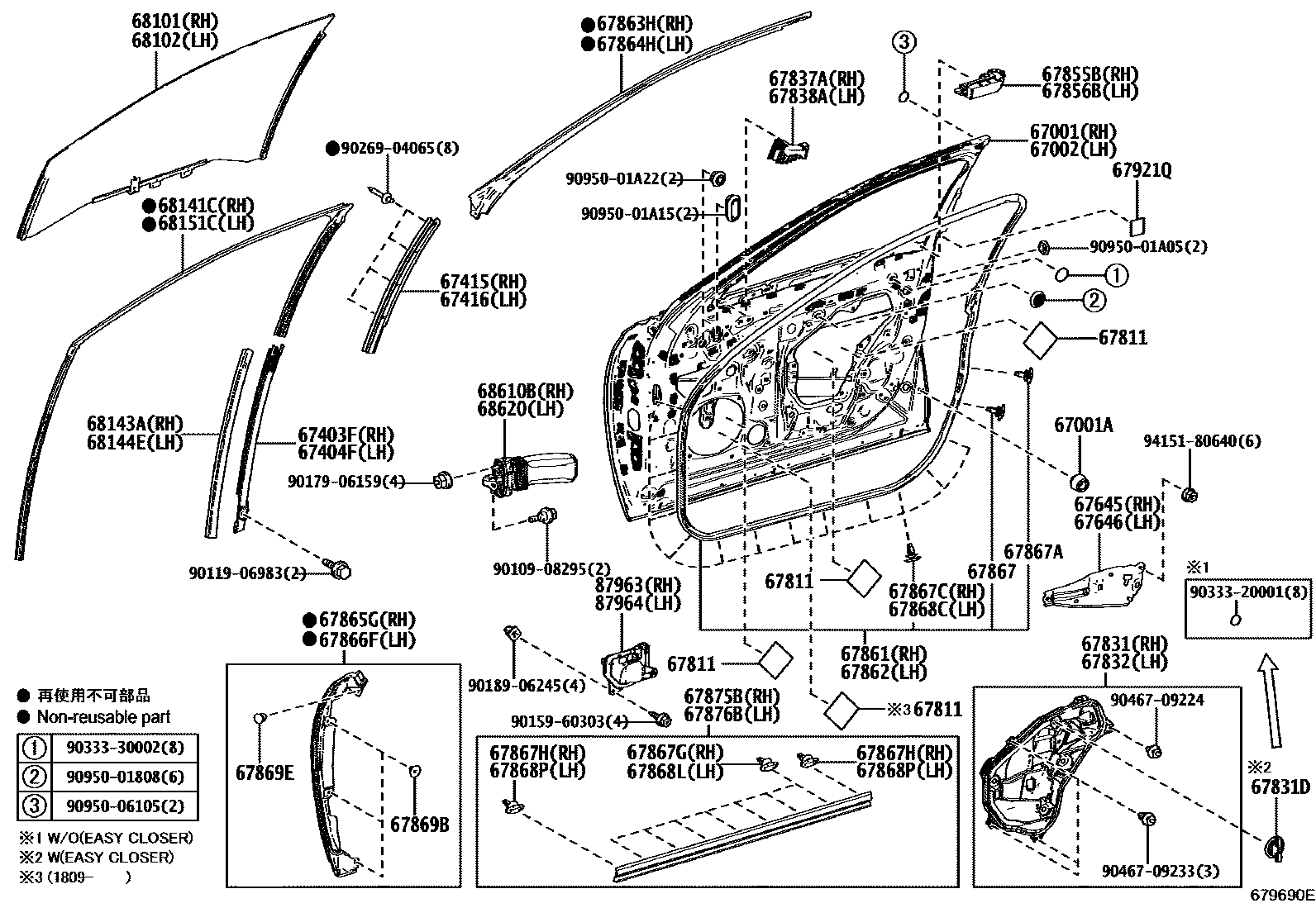

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67415FRAME, FRONT DOOR WINDOW, REAR RH
67416FRAME, FRONT DOOR WINDOW, REAR LH
67645BRACKET, FRONT DOOR ARMREST SET, RH
67646BRACKET, FRONT DOOR ARMREST SET, LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
67838ASEAL, FRONT DOOR VENT, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863HWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864HWEATHERSTRIP, FRONT DOOR, NO.2 LH
67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH
67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH
67867CLIP, DOOR WEATHERSTRIP
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67867HRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67868PRETAINER, DOOR WEATHERSTRIP, NO.1 LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869ECLIP, FRONT DOOR WEATHERSTRIP
67875BWEATHERSTRIP, FRONT DOOR, NO.4 RH
67876BWEATHERSTRIP, FRONT DOOR, NO.4 LH
67921QPAD, FRONT DOOR SCUFF PLATE
68101GLASS SUB-ASSY, FRONT DOOR, RH
"EXECUTIVE"*(E)
"EXECUTIVE"*(E)&COLD AREA SPEC
"VERSION L"*(L)
"VERSION L"*(L)&COLD AREA SPEC
COLD AREA SPEC
68102GLASS SUB-ASSY, FRONT DOOR, LH
"VERSION L"*(L)&COLD AREA SPEC
COLD AREA SPEC
"EXECUTIVE"*(E)
"EXECUTIVE"*(E)&COLD AREA SPEC
"VERSION L"*(L)
68141CRUN, FRONT DOOR GLASS, RH
68143ARUN, FRONT DOOR GLASS, NO.2
68144ERUN, FRONT DOOR GLASS, NO.2 LH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
9010908295
main90109-08295
9011906983
main90119-06983
9015960303
main90159-60303
9017906159
main90179-06159
9018906245
main90189-06245
9026904065
main90269-04065
9033320001
main90333-20001
9033330002
main90333-30002
9046709224
main90467-09224
9046709233
main90467-09233
9095001808
main90950-01808
9095001A05
main90950-01A05
9095001A15
main90950-01A15
9095001A22
main90950-01A22
9095006105
main90950-06105
9415180640
main94151-80640
62 parts on this diagram · 2 diagrams in section
