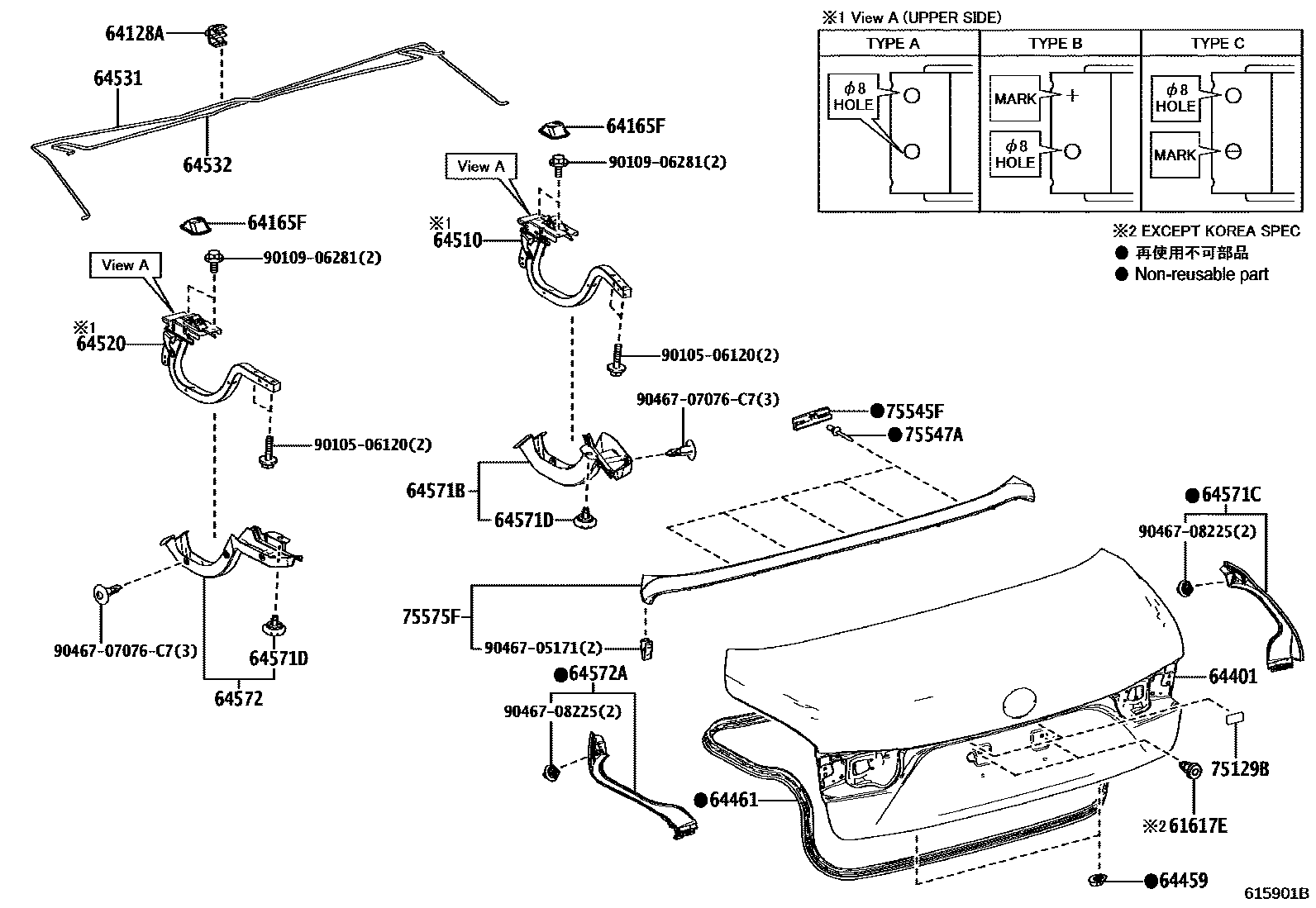

LUGGAGE COMPARTMENT DOOR & LOCK
61617ERETAINER, BACK DOOR BRACKET
64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64165FCOVER, UPPER BACK PANEL HOLE, NO.1
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
KOREA SPEC
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH
75129BCUSHION, REAR LICENCE PLATE
75545FCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75547ACLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75575FMOULDING, BACK WINDOW, OUTSIDE LOWER
9010506120
main90105-06120
9010906281
main90109-06281
9046705171
main90467-05171
9046707076C7
main90467-07076C7
9046708225
main90467-08225
24 parts on this diagram · 2 diagrams in section
