E
EPC Data

CONSOLE BOX & BRACKET

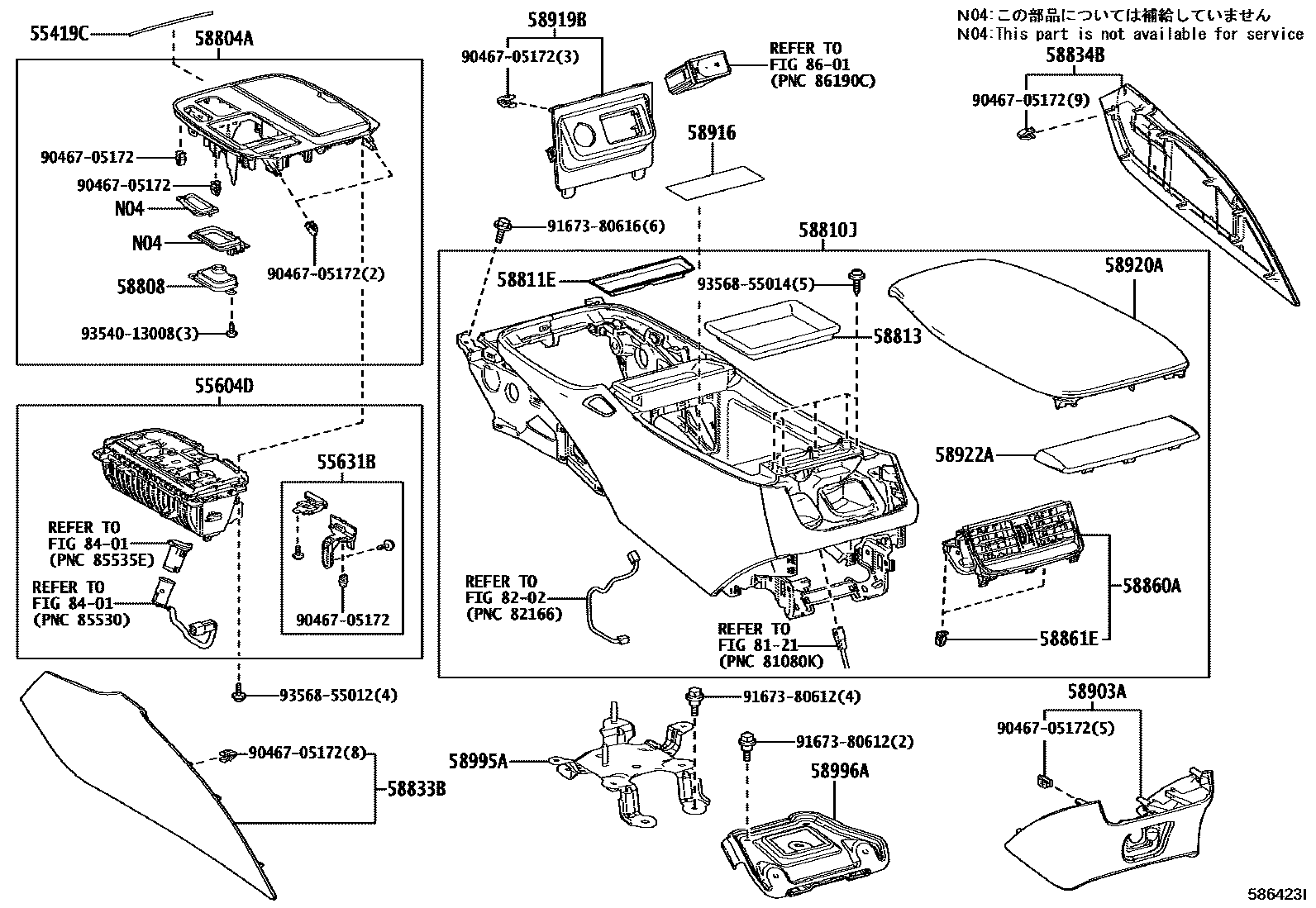

Parts diagram
55419CCUSHION, CONSOLE PANEL, NO.1
main55419-50110i201710-202310
55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-50030i202210-202310
main55604-50050i201710-202210
55631BLOCK, INSTRUMENT PANEL CUP HOLDER, NO.1
main55631-50030i201710-202010
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-50440-B0i201710-202010
LAZER CUT WOOD_22BK66,TRIM22,33
main58804-50440-C0i201710-202010
BLACK,TRIM21,51
main58804-50440-C1i202010-202210
BLACK WOOD,TRIM06,08,26,36
main58804-50440-C1i201711-202010
BLACK WOOD,TRIM06,26,36
main58804-50440-C1i201710-201711
BLACK WOOD,TRIM06,20,26,30,36
main58804-50440-C3i201710-202010
BLACK,TRIM03,23,33,53,93
main58804-50440-C3i202010-202210
BLACK,TRIM03,13
main58804-50440-C4i201710-202010
BLACK,TRIM00,20,30
main58804-50440-C4i202010-202210
BLACK,TRIM01,20,30
main58804-50440-C5i202010-202210
BLACK,TRIM05,07,08,15,2#,37,38,5#
main58804-50440-E0i201710-202010
DK.BROWN,TRIM45
main58804-50440-E1i201710-202010
BROWN,TRIM04,24,44,54,94
main58804-50440-E1i202010-202210
BROWN,TRIM24,44
main58804-50440-E3i201710-202010
OPEN PORE,TRIM1#,40,48,49
main58804-50440-E3i202010-202210
OPEN PORE,TRIM49
main58804-50470-C0i202210
BLACK WOOD,TRIM06,26,36
main58804-50470-C1i202210-202310
BLACK,TRIM03,13
main58804-50470-C2i202210-202310
BLACK,TRIM20,30
main58804-50470-C2i202210
BLACK,TRIM20,30,32
main58804-50470-C3i202210-202310
SUMI BLACK,TRIM05,07,15,21,25,27,37,5#
main58804-50470-E0i202210-202310
BROWN,TRIM24,44
main58804-50470-E1i202210-202310
OPEN PORE,TRIM49
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-50030i201710-202310
58810JBOX ASSY, CONSOLE
main58810-50370-01i201710-202010
IVORY/BROWN,TRIM44
main58810-50370-02i201710-202010
IVORY/OPEN PORE,TRIM40
main58810-50370-20i201710-202010
BLACK/LAZER CUT WOOD,TRIM22
main58810-50370-A6i201710-202010
WHITE,TRIM0#
main58810-50370-C9i201710-202010
BLACK/BLACK WOOD,TRIM26
main58810-50370-D4i201710-202010
RED,TRIM3#
main58810-50370-F5i201710-202010
TOPAZ BROWN/BLACK,TRIM51
main58810-50370-F6i201710-202010
TOPAZ BROWN/BROWN,TRIM54
main58810-50820-D0i202210-202310
RED,TRIM3#
main58810-50380-28i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/BLACK/BLACK,TRIM20
main58810-50380-41i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/BROWN/LT.GRAY,TRIM24
main58810-50380-42i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/BLACK,TRIM30
main58810-50380-44i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/CRIMSON/RED,TRIM33
main58810-50380-A5i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),WHITE/BROWN,TRIM04
main58810-50380-A8i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),WHITE/BLACK,TRIM03
main58810-50390-01i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),WHITE/BLACK,TRIM03
main58810-50390-06i201710-202010
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,IVORY/BROWN,TRIM4#
main58810-50390-08i201909-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),WHITE/BLACK/MWHITE,TRIM00
main58810-50390-45i201710-202010
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK/BLACK/BLACK(WOOD),TRIM20
main58810-50390-48i201710-202010
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK/BROWN,TRIM24
main58810-50390-49i201909-202010
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(30TH ANNIVERSARIES),BLACK/BLACK,TRIM30
main58810-50390-A6i201710-202010
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,WHITE/BROWN,TRIM04
main58810-50390-B4i201710-202010
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),CHATEAU,TRIM1#
main58810-50390-E8i201710-202010
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),NOBLE BROWN/BLACK,TRIM9#
main58810-50390-N1i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),BLACK/CRIMSON/RED,TRIM33
main58810-50400-E6i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),DK.SADDLE TAN/BLACK,TRIM5#
main58810-50400-E8i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),OCHRE,TRIM4#
main58810-50780-A0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),WHITE,TRIM0#
main58810-50780-C0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/CRIMSON,TRIM3#
main58810-50780-C1i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/BLACK,TRIM2#
main58810-50780-E0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),HAZEL,TRIM4#
main58810-50790-A0i202010-202210
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,WHITE,TRIM0#
main58810-50790-B0i202010-202210
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),CHATEAU,TRIM1#
main58810-50790-C0i202010-202210
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK/CRIMSON,TRIM3#
main58810-50790-C1i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),BLACK/BLACK,TRIM2#
main58810-50790-E0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),HAZEL,TRIM4#
main58810-50800-C0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM2#
main58810-50800-E1i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),OCHER,TRIM5#
main58810-50830-A0i202210-202310
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,WHITE,TRIM0#
main58810-50830-B0i202210-202310
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),CHATEAU,TRIM1#
main58810-50830-C0i202210-202310
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK/CRIMSON,TRIM3#
main58810-50830-C1i202210-202310
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),BLACK/BLACK,TRIM2#
main58810-50830-E0i202210-202310
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),HAZEL,TRIM4#
main58810-50840-A0i202210-202310
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),WHITE,TRIM0#
main58810-50840-C0i202210-202310
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/CRIMSON,TRIM3#
main58810-50840-C1i202210-202310
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/BLACK,TRIM2#
main58810-50840-E0i202210-202310
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),HAZEL,TRIM4#
main58810-50860-C0i202210-202310
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM2#
main58810-50860-E0i202210-202310
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),OCHER,TRIM5#
main58810-50A10-A0i202310-202410
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,WHITE,TRIM0#
main58810-50A10-A1i202410-202510
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,WHITE,TRIM0#
main58810-50A10-B0i202310-202410
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),CHATEAU,TRIM1#
main58810-50A10-B1i202410-202510
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,CHATEAU,TRIM1#
main58810-50A10-C0i202310-202410
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK/CRIMSON,TRIM3#
main58810-50A10-C1i202310-202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),BLACK/BLACK,TRIM2#
main58810-50A10-C2i202410-202510
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK/CRIMSON,TRIM3#
main58810-50A10-C3i202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),BLACK/BLACK,TRIM2#
main58810-50A10-E0i202310-202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),HAZEL,TRIM4#
main58810-50A10-E1i202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),HAZEL,TRIM4#
main58810-50A20-A0i202310-202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),WHITE,TRIM0#
main58810-50A20-A1i202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),WHITE,TRIM0#
main58810-50A20-C0i202310-202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/CRIMSON,TRIM3#
main58810-50A20-C1i202310-202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/BLACK,TRIM2#
main58810-50A20-C2i202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/CRIMSON,TRIM3#
main58810-50A20-C3i202410-202510
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK/BLACK,TRIM2#
main58810-50A20-E0i202310-202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),HAZEL,TRIM4#
main58810-50A20-E1i202410-202510
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),HAZEL,TRIM4#
main58810-50A40-C0i202310-202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM2#
main58810-50A40-C1i202410-202510
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM2#
main58810-50A40-E0i202310-202410
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),OCHER,TRIM5#
main58810-50A40-E1i202410-202510
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),OCHER,TRIM5#
58811EBOX, CONSOLE, UPPER
main58813-50070i202210-202310
58813BOX, CONSOLE, UPPER
main58813-50110i201710-202310
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
main58833-50030-C2i202010-202410
BLACK,TRIM0#,1#,2#,36,38,4#,5#
main58833-50030-C2i201710-202010
BLACK,TRIM00,06,2#,36,53
main58833-50030-C3i202410
BLACK,TRIM0#,1#,2#,32,36,4#,5#
main58833-50030-D2i202010-202410
CRIMSON,TRIM30,37
main58833-50030-D2i201710-202010
CRIMSON,TRIM30,33
main58833-50030-D3i202410
CRIMSON,TRIM30,37
main58833-50030-E1i201710-202010
NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
main58834-50080-C2i202010-202410
BLACK,TRIM0#,1#,2#,36,38,4#,5#
main58834-50080-C2i201710-202010
BLACK,TRIM00,06,2#,36,53
main58834-50080-C3i202410
BLACK,TRIM0#,1#,2#,32,36,4#,5#
main58834-50080-D2i202010-202410
CRIMSON,TRIM30,37
main58834-50080-D2i201710-202010
CRIMSON,TRIM30,33
main58834-50080-D3i202410
CRIMSON,TRIM30,37
main58834-50080-E1i201710-202010
NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#
58860AREGISTER ASSY, CONSOLE BOX
main58860-50100-B0i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LAZER CUT WOOD_22BK66,TRIM33
main58860-50100-C0i201710-202010
BLACK,TRIM21,51
main58860-50100-C1i201710-202010
BLACK WOOD,TRIM06,20,26,30,36
main58860-50100-E1i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),BROWN,TRIM04,24,44,54,94
main58860-50100-E2i201710-202010
OPEN PORE,TRIM1#,40
main58860-50110i202010-202310
main58860-50100-C2i201710-202010
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),BLACK,TRIM03,23,33,93
main58860-50100-C3i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM20,30
main58860-50100-E0i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),DK.BROWN,TRIM45
58861ECLIP, CONSOLE BOX DUCT
main90467-05172i201710-202310
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-50320-C2i202010-202310
TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM0#,2#,4#,5#
main58903-50320-C3i202410-202510
TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM0#,2#,4#,5#
main58903-50320-D2i202010-202410
TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),CRIMSON,TRIM3#
main58903-50320-D3i202410-202510
TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),CRIMSON,TRIM3#
main58903-50320-E1i201710-202010
TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),NOBLE BROWN,TRIM0#,4#
main58903-50330-C2i202010-202410
ACCESSORY CONNECTOR-12V(2)&100V/120V(1)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM0#,2#,4#,5#
main58903-50330-C3i202410
ACCESSORY CONNECTOR-12V(2)&100V/120V(1)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM0#,2#,4#,5#
main58903-50330-D2i202010-202410
ACCESSORY CONNECTOR-12V(2)&100V/120V(1)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),CRIMSON,TRIM3#
main58903-50330-D3i202410
ACCESSORY CONNECTOR-12V(2)&100V/120V(1)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),CRIMSON,TRIM3#
main58903-50330-E1i201710-202010
ACCESSORY CONNECTOR-12V(2)&100V/120V(1)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),NOBLE BROWN,TRIM0#,4#
main58903-50350-C2i202010-202410
ACCESSORY CONNECTOR-12V(2)&100V/120V(1),BLACK,TRIM0#,1#,2#,36,38,4#
main58903-50350-C3i202410
ACCESSORY CONNECTOR-12V(2)&100V/120V(1),BLACK,TRIM0#,1#,2#,32,36,4#
main58903-50350-D2i202010-202410
ACCESSORY CONNECTOR-12V(2)&100V/120V(1),CRIMSON,TRIM30,37
main58903-50350-D3i202410
ACCESSORY CONNECTOR-12V(2)&100V/120V(1),CRIMSON,TRIM30,37
main58903-50350-E1i201710-202010
ACCESSORY CONNECTOR-12V(2)&100V/120V(1),NOBLE BROWN,TRIM03,04,1#,4#,5#,9#
58916MAT, BOX BOTTOM
main58916-50220i202210-202310
main58916-50230i201710-202210
58919BPLATE, CONSOLE BOX
main58919-50150i201710-202210
58920AARMREST ASSY, REAR CONSOLE
main58920-50520-C2i201710-202010
BLACK,TRIM2#
main58920-50520-D2i201710-202210
RED,TRIM3#
main58920-50570-A1i202410
WHITE,TRIM0#
main58920-50570-B1i202410
CHATEAU,TRIM1#
main58920-50570-C0i202210-202410
BLACK,TRIM2#
main58920-50570-C1i202410
BLACK,TRIM2#
main58920-50570-D0i202210-202410
RED,TRIM3#
main58920-50570-D1i202410
RED,TRIM3#
main58920-50570-E1i202410
HAZEL,TRIM4#
main58920-50530-A0i201710-202010
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,IVORY,TRIM4#
sub58920-50550
main58920-50530-A1i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),WHITE,TRIM0#
sub58920-50550
main58920-50530-B0i201710-202010
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),CHATEAU,TRIM1#
sub58920-50550
main58920-50530-C0i201710-202010
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK,TRIM2#,3#
sub58920-50550
main58920-50530-E0i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),NOBLE BROWN,TRIM9#
sub58920-50550
main58920-50540-E1i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),OCHER,TRIM4#
sub58920-50560
main58920-50540-E2i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),DK.SADDLE TAN,TRIM5#
sub58920-50560
main58920-50550-A0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),WHITE,TRIM0#
main58920-50550-B0i202010-202210
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),CHATEAU,TRIM1#
main58920-50550-C0i202010-202210
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK,TRIM2#,3#
main58920-50550-E0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),HAZEL,TRIM4#
main58920-50560-C0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM2#
main58920-50560-E0i202010-202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),OCHER,TRIM5#
main58920-50580-A0i202210-202310
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,WHITE,TRIM0#
main58920-50580-B0i202210-202310
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L),CHATEAU,TRIM1#
main58920-50580-C0i202210-202310
SEAT COVER MATERIAL-SEMI ANILINE LEATHER,BLACK,TRIM2#,3#
main58920-50580-E0i202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE),HAZEL,TRIM4#
main58920-50590-C0i202210
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),BLACK,TRIM2#
main58920-50590-E0i202210-202510
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),OCHER,TRIM5#
58922APLATE, BOX, UPPER NO.2
main58922-50030i201710-202310
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-50050i201710-202210
main58995-50060i202210-202310
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-50080i201710-202310
8121
8202
8401
8601
9046705172
main90467-05172
9167380612
main91673-80612
9167380616
main91673-80616
9354013008
main93540-13008
9356855012
main93568-55012
9356855014
main93568-55014

29 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
