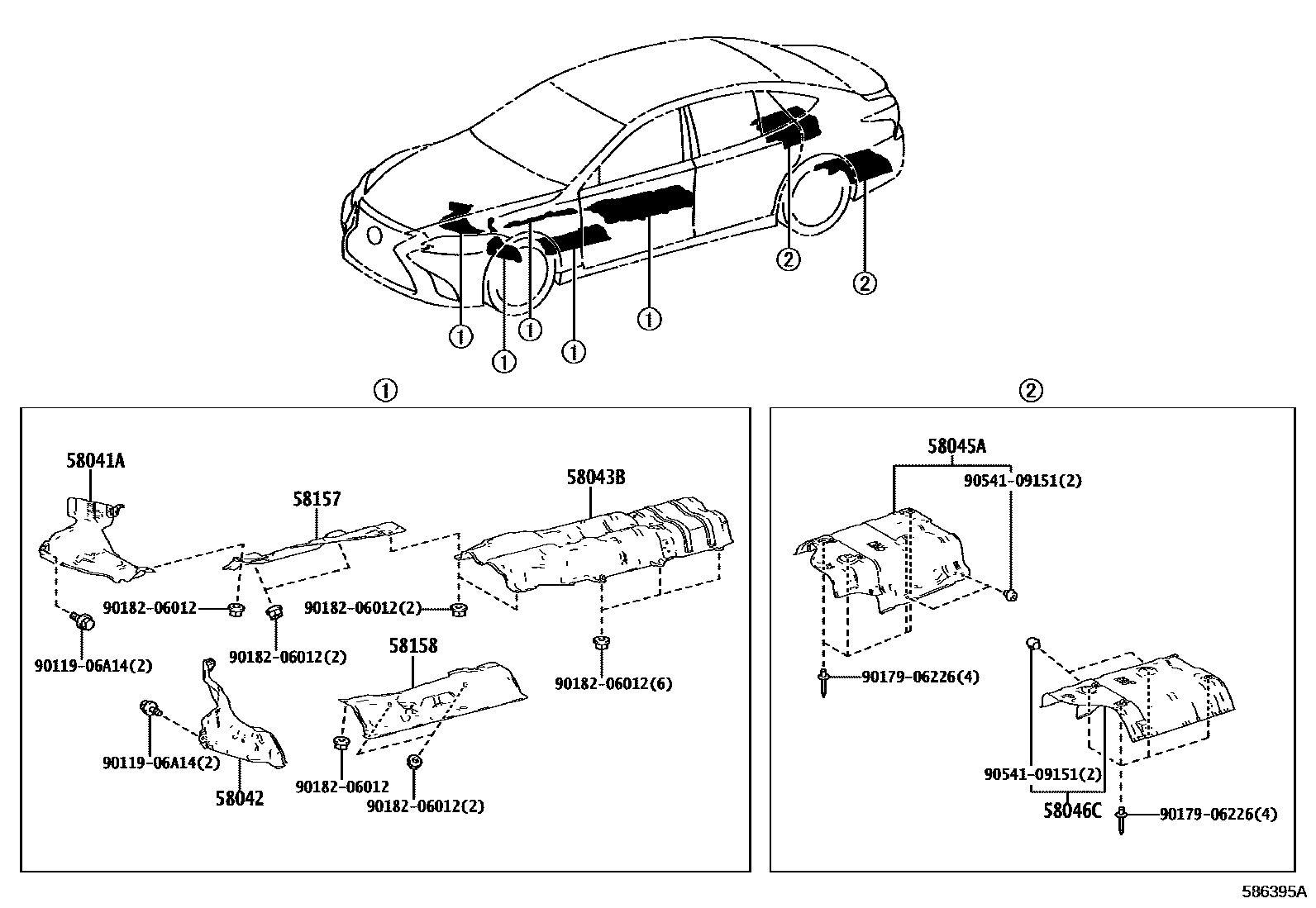

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-11010iGVF5#201710-201811

sub58041-11011

main58041-11011iGVF5#201812-202310

main58041-50050iVXFA5#201712-201808

sub58041-50051

main58041-50051iVXFA5#201809-202010

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-11010iGVF50201710-202310

main58042-50050iVXFA50201712-201808

sub58042-50051

main58042-50051iVXFA50201809-202010

main58042-50060iVXFA55201712-201808

sub58042-50061

main58042-50061iVXFA55201809-202010

main58042-50070iGVF55201710-202010

58043BINSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.1

main58043-50040iGVF50201710-202310

main58043-50050iGVF55,VXFA55201710-202010

58045AINSULATOR SUB-ASSY, REAR FLOOR HEAT

main58045-50010iGVF5#,VXFA5#201710-202310

58046CINSULATOR SUB-ASSY, REAR FLOOR HEAT, NO.2

main58046-50010iGVF5#,VXFA5#201710-202310

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-11010iGVF50201710-202310

main58157-50070iVXFA5#201712-202010

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-11010iGVF50201710-202310

main58158-50060iGVF55,VXFA55201710-202010

main58158-50080iVXFA50201712-202010

9011906A14

main90119-06A14

9017906226

main90179-06226

9018206012

main90182-06012

9054109151

main90541-09151

11 parts on this diagram · 4 diagrams in section
