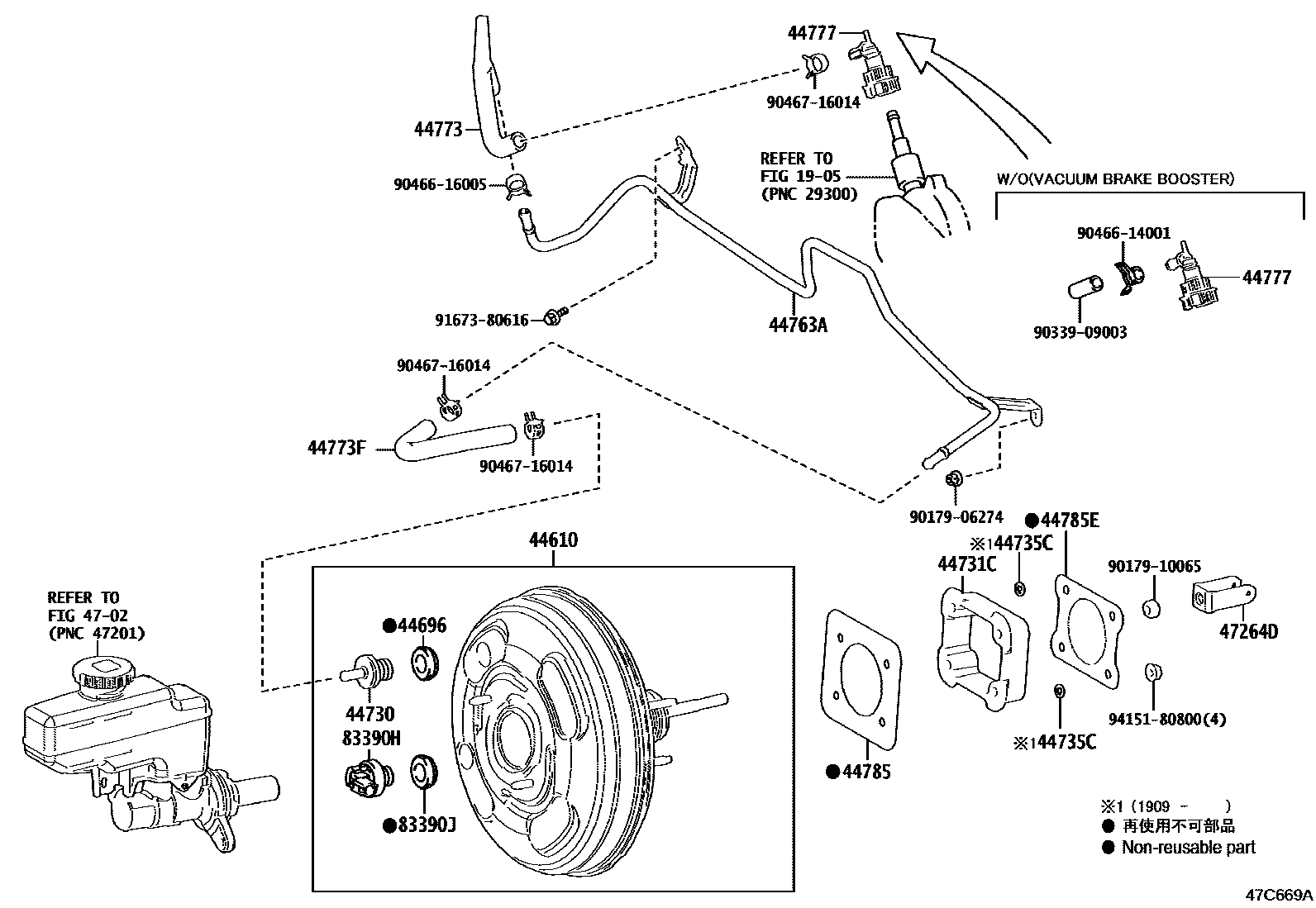

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-50410iVXFA5#201712-202010

44696GROMMET, CHECK VALVE

main90480-24439iVXFA5#201712-202010

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iVXFA5#201712-202010

44731CBRACKET, BRAKE BOOSTER

main44731-50030iVXFA5#201712-202010

44735CRING, BOOSTER BRACKET STOPPER

main44735-30020iVXFA5#201909-202010

44763ATUBE, HOSE TO HOSE, NO.1

main44763-50050iVXFA5#201712-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main44763-50050iVXFA5#202010

44773HOSE, VACUUM, NO.2

main44773-50060iVXFA50201712-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main44773-50060iVXFA50202010

main44773-50070iVXFA55202010

main44773-50070iVXFA55201712-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

44773FHOSE, UNION TO CHECK VALVE

main44773-50100iVXFA5#201712-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main44773-50100iVXFA5#202010

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iVXFA5#201712-202010

44785GASKET, BRAKE BOOSTER

main44785-47010iVXFA5#201712-202010

44785EGASKET, BRAKE BOOSTER, NO.2

main44785-12040iVXFA5#201712-202010

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iVXFA5#201712-202402

main47264-48020iVXFA5#202403

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iVXFA5#201712-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main83390-28120iVXFA5#202010

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iVXFA5#201712-202010

9017906274

main90179-06274

9017910065

main90179-10065

9033909003

main90339-09003

9046614001

main90466-14001

9046616005

main90466-16005

9046716014

main90467-16014

9167380616

main91673-80616

9415180800

main94151-80800

24 parts on this diagram · 1 diagram in section
