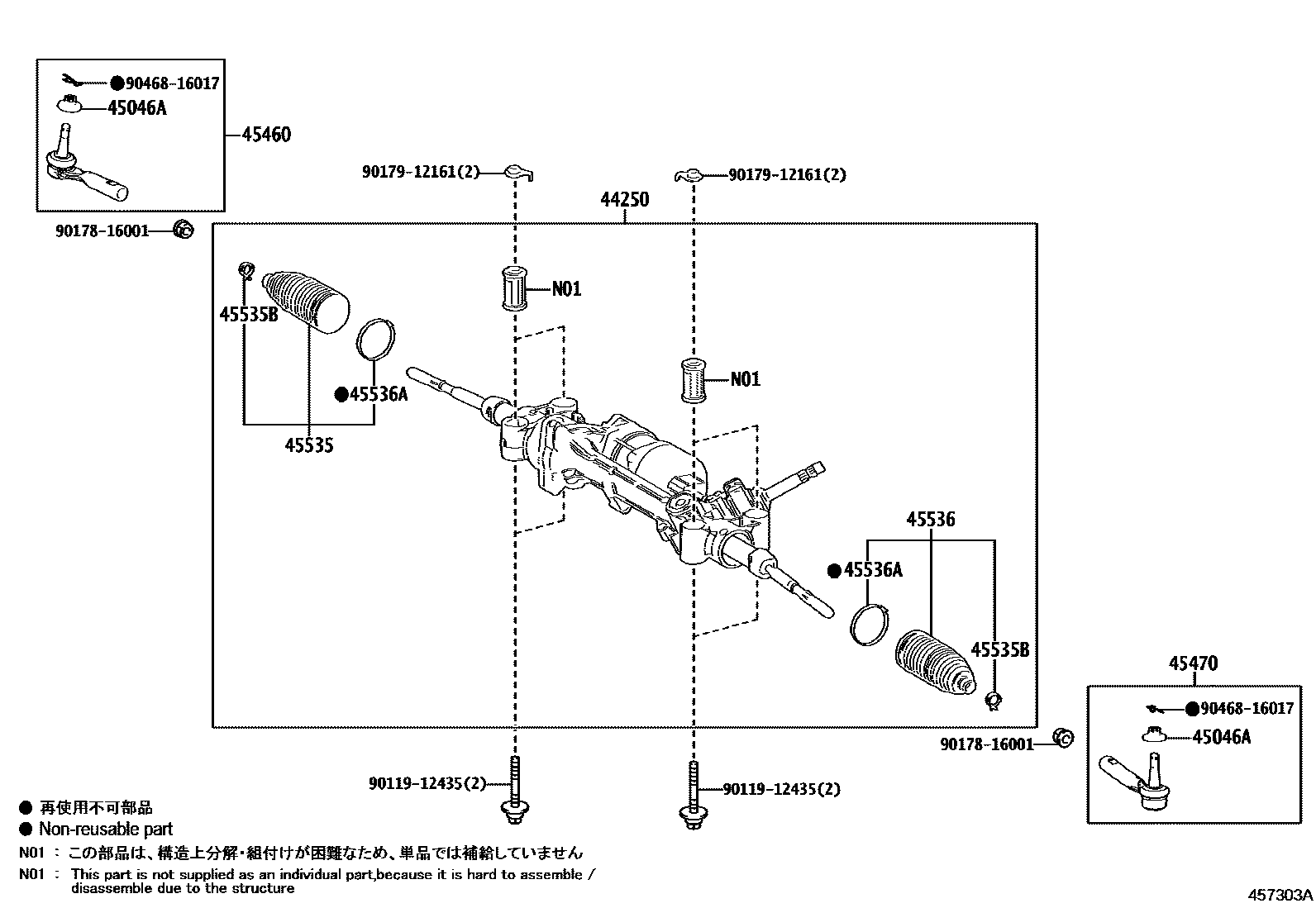

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-50492iGVF50202010-202111

*614

main44250-50492iGVF50202010-202111

SUSPENSION-AIR SUSPENSION & *AVS,*614

main44250-50500iGVF50,VXFA50201710-202010

main44250-50501iVXFA50202010-202111

*614

main44250-50532iGVF55202010-202111

*614

main44250-50532iGVF55202010-202111

SUSPENSION-AIR SUSPENSION & *AVS,*614

main44250-50540iGVF55,VXFA55201710-202010

main44250-50541iVXFA55202010-202111

*614

main44250-50690iVXFA50202310

main44250-50710iGVF55,VXFA55202310

main44250-50850iGVF50202111-202310

SUSPENSION-AIR SUSPENSION & *AVS,*614

main44250-50850iGVF50202111-202310

*614

main44250-50870iVXFA50202111-202310

*614

main44250-50890iVXFA55202111-202210

SUSPENSION-AIR SUSPENSION & *AVS,*614

main44250-50890iVXFA55202111-202210

*614

main44250-50891iGVF55202210-202310

SUSPENSION-AIR SUSPENSION & *AVS,*614

main44250-50891iVXFA55202210-202310

*614

main44250-50A10iVXFA55202111-202310

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iGVF5#,VXFA5#201710-202310

45460ROD ASSY, TIE, RH

main45460-19255iVXFA50201710-202310

main45460-59125iGVF55,VXFA55201710-202010

45470ROD ASSY, TIE, LH

main45470-19085iGVF50,VXFA50201710-202310

main45470-59145iGVF55,VXFA55201710-202010

45535BOOT, STEERING RACK, NO.1

main45535-19005iGVF5#,VXFA5#201710-202310

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iGVF5#,VXFA5#201710-202310

45536BOOT, STEERING RACK, NO.2

main45535-19005iGVF5#,VXFA5#201710-202310

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02070iGVF50201710-202310

9011912435

main90119-12435

9017816001

main90178-16001

9017912161

main90179-12161

9046816017

main90468-16017

12 parts on this diagram · 2 diagrams in section
