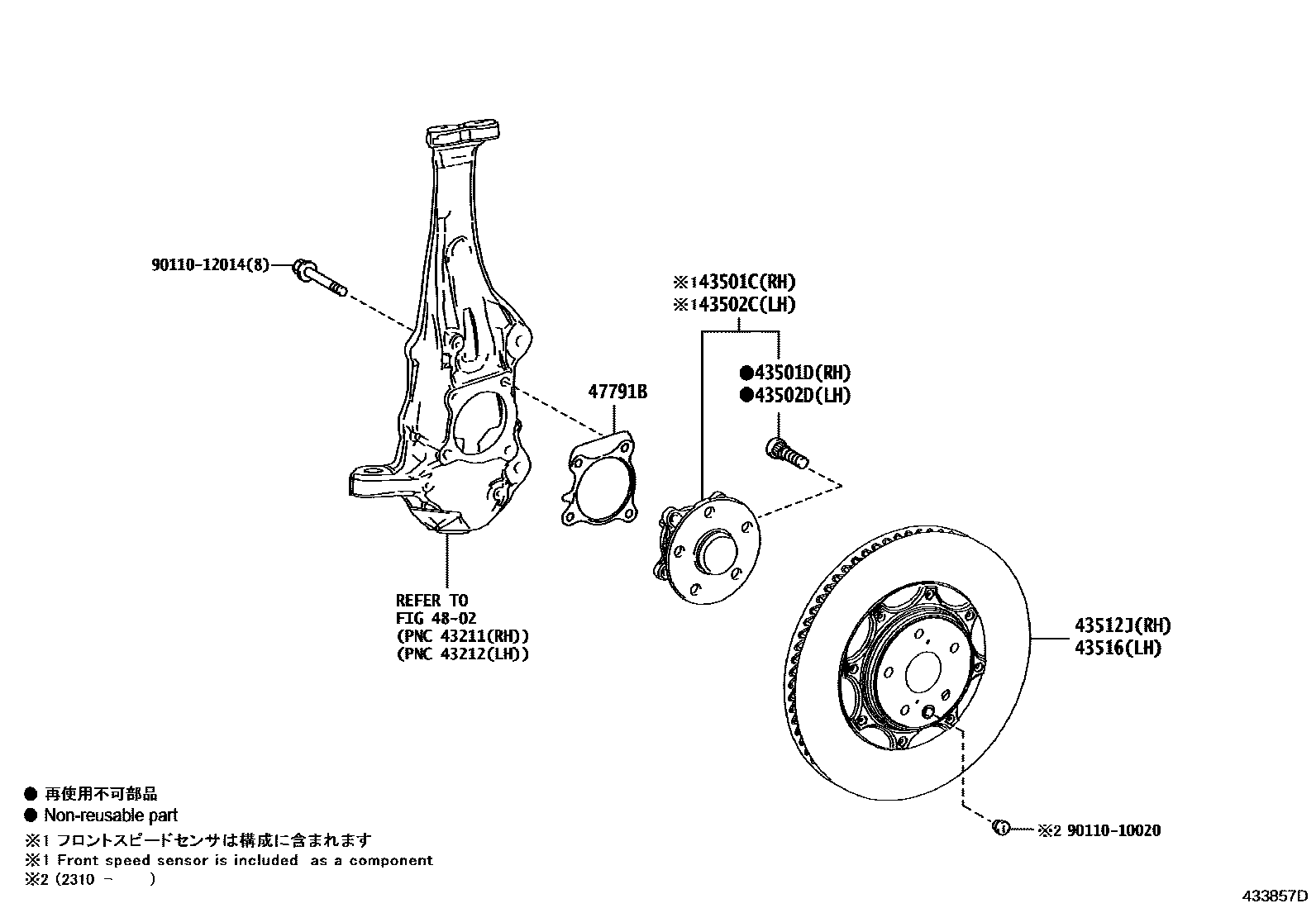

FRONT AXLE HUB

0001 1 0002 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-11020iGVF50,VXFA50201710-202010

main43550-50070iGVF55,VXFA55201710-202310

main43550-50080iGVF55,VXFA55202310

main43550-50100iVXFA50202310

main43550-62020iGVF50,VXFA50202010-202310

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083iGVF5#,VXFA5#201710-202310

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-11020iGVF50,VXFA50201710-202010

main43550-50070iGVF55,VXFA55201710-202310

main43550-50080iGVF55,VXFA55202310

main43560-50040iVXFA50202310

main43560-62020iGVF50,VXFA50202010-202310

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083iGVF5#,VXFA5#201710-202310

43512JDISC, FRONT RH

main43512-11010iGVF50201710-202310

"F SPORT"*(F)

sub43512-11031

main43512-11010iGVF5#,VXFA5#201909-202010

FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

sub43512-11031

main43512-11010iGVF5#,VXFA5#201909-202010

FRONT WHEEL BRAKE-20INCH,F SPORT

sub43512-11031

main43512-11030iGVF55,VXFA5#202310-202403

"F SPORT"*(F)

sub43512-11031

main43512-11031iGVF55,VXFA5#202404-202510

"F SPORT"*(F)

main43512-50250iGVF5#,VXFA5#201710-202310

sub43512-50260

main43512-50260iGVF55,VXFA5#202310

43516DISC, FRONT LH

main43516-11010iGVF5#,VXFA5#201909-202010

FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

sub43516-11031

main43516-11010iGVF5#,VXFA5#201909-202010

FRONT WHEEL BRAKE-20INCH,F SPORT

sub43516-11031

main43516-11010iGVF5#,VXFA5#201710-202310

"F SPORT"*(F)

sub43516-11031

main43516-11030iGVF55,VXFA5#202310-202403

"F SPORT"*(F)

sub43516-11031

main43516-11031iGVF55,VXFA5#202404-202510

"F SPORT"*(F)

main43516-50010iGVF5#,VXFA5#201710-202310

sub43516-50020

main43516-50020iGVF55,VXFA5#202310

47791BPLATE, DISC BRAKE AIR GUIDE

main47791-11010iGVF50201710-202310

4802

9011010020

main90110-10020

9011012014

main90110-12014

10 parts on this diagram · 2 diagrams in section
