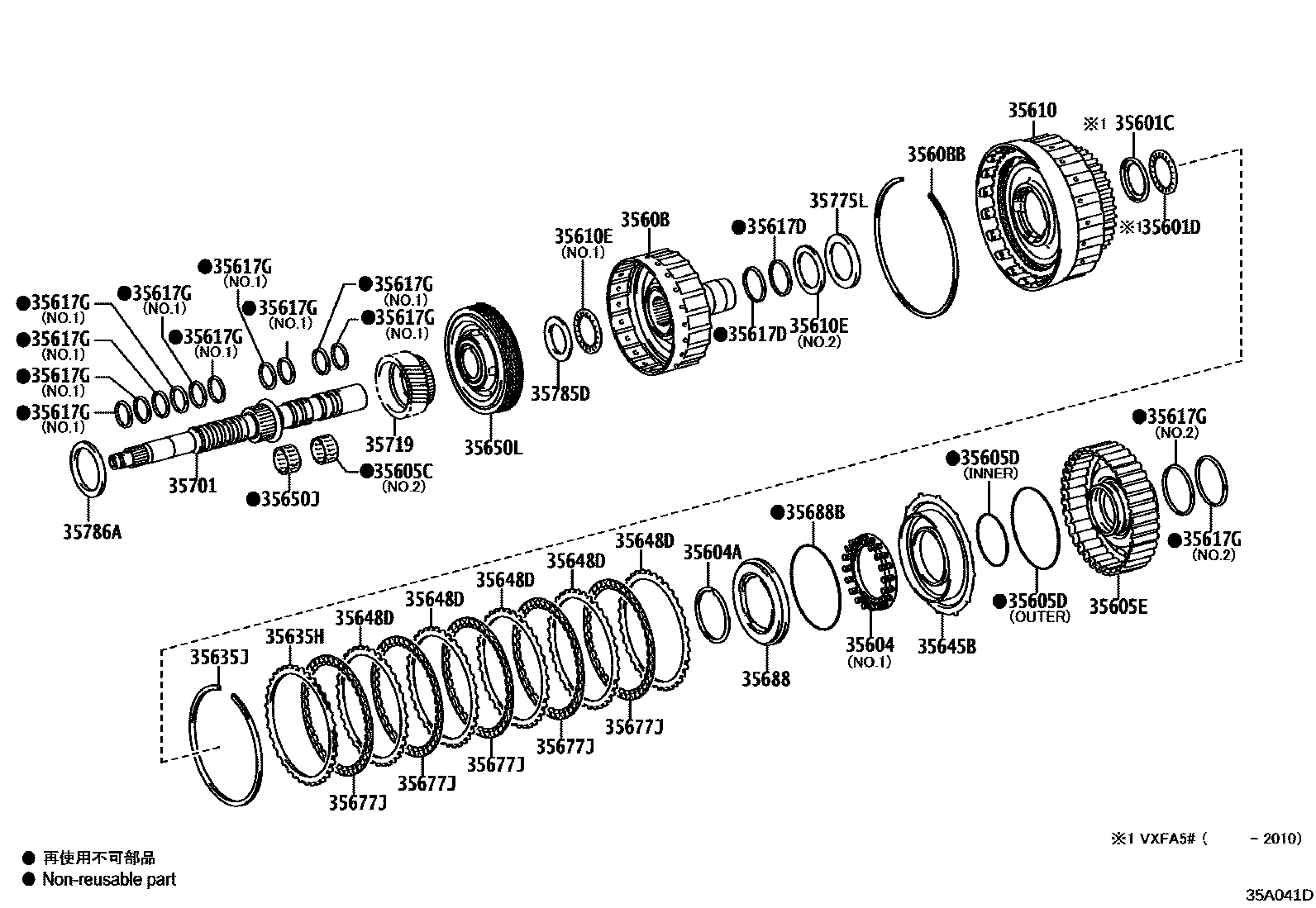

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601CRACE, THRUST BEARING (FOR FRONT CLUTCH DRUM)
35601DBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
NO.1
NO.2
35604ARING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON)
35605CBEARING, NEEDLE ROLLER
NO.2
NO.1
35605DRING, O(FOR DIRECT CLUTCH DRUM)
INNER
OUTER
35605EDRUM SUB-ASSY, C-3
3560BDRUM SUB-ASSY, C-2
3560BBRING, HOLE SNAP(FOR C-2 DRUM)
35610CLUTCH ASSY, FRONT MULTIPLE DISC
35610EBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DISC)
NO.1
NO.2
35617DRING, CLUTCH DRUM OIL SEAL
35617GRING, CLUTCH DRUM OIL SEAL
NO.2
NO.1
NO.3
NO.1
NO.4
35635FLANGE, FORWARD CLUTCH
T=3.9
T=4.0
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
35635HFLANGE, CLUTCH
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
T=3.8
T=3.9
35635JRING, HOLE SNAP(FOR C-3 CLUTCH FLANGE)
35645BPISTON, C-3 CLUTCH
35648DPLATE, CLUTCH, NO.3
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35650LCLUTCH ASSY, C-2
35677JDISC, CLUTCH, NO.3
35688BALANCER, CLUTCH, NO.3
35688BRING, O (FOR CLUTCH BALANCER NO.3)
35701SHAFT SUB-ASSY, INPUT
35719GEAR, PLANETARY SUN
35775LRACE, THRUST BEARING, NO.5
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
28 parts on this diagram · 2 diagrams in section
