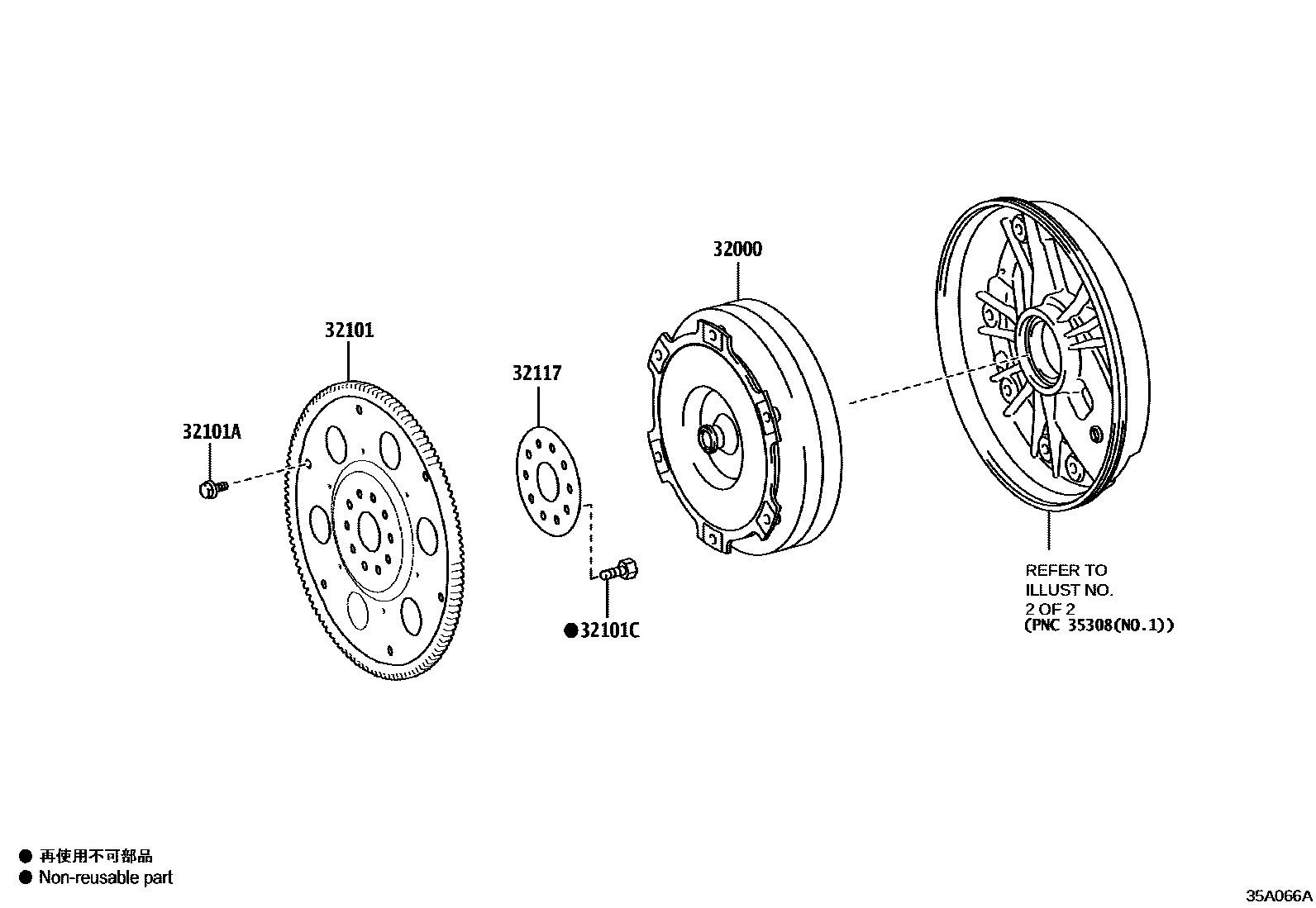

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AGA0E,AGA0F 0002 1AGA0E,AGA0F

32000CONVERTER ASSY, TORQUE

main32000-50060iVXFA5#201712-202010

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-50030iVXFA5#201712-202010

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10595iVXFA5#201712-202010

*10-1.5PX14.8-6.2,BLACK

main90105-10596iVXFA5#201712-202010

*10-1.5PX14.8-6.5,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90910-02129iVXFA5#201712-202010

*10-1.25PX23-16,(J)

main90910-02129iVXFA5#202010-202104

*10-1.25PX23-16

main90910-A2002iVXFA5#201712-202010

*10-1.25PX23-16,(L)

32117SPACER, DRIVE PLATE, REAR

main32117-50020iVXFA5#201712-202010

5 parts on this diagram · 2 diagrams in section
