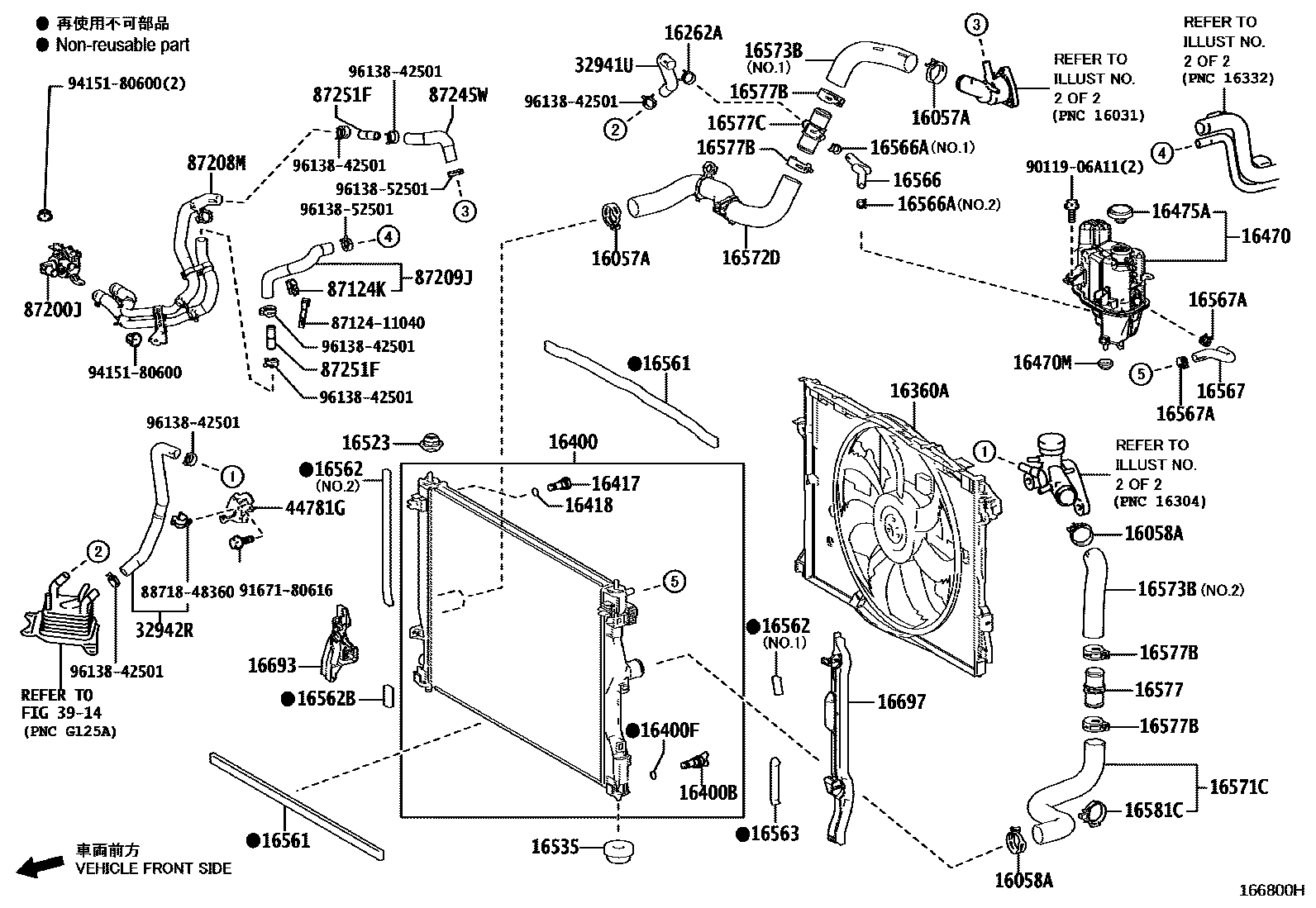

RADIATOR & WATER OUTLET
16057ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)
16058ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16360AFAN ASSY, W/MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16475ACAP, RESERVE TANK
16523CUSHION, SUB-RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
NO.1
NO.2
16562BSEAL, RADIATOR TO SUPPORT, NO.4
16563SEAL, RADIATOR TO SUPPORT, NO.3
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
NO.1
NO.1:REFER ILLUST.
NO.2
NO.2:REFER ILLUST.
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571CHOSE, RADIATOR, NO.1
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
NO.1
NO.2
16577PIPE, RADIATOR, NO.7
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16577CPIPE, RADIATOR
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16693PLATE, RADIATOR SIDE AIR GUIDE, RR RH
16697PLATE, RADIATOR SIDE AIR GUIDE, RR LH
32941UHOSE, OIL COOLER INLET
32942RHOSE, OIL COOLER OUTLET
3914
44781GBRACKET, HOSE
87124KCLAMP, HEATER
87200JACCESSORY ASSY, HEATER
87208MPIPE SUB-ASSY, WATER
87209JHOSE SUB-ASSY, WATER
87245WHOSE, WATER
87251FJOINT, WATER
8712411040CLAMP, HEATER
main87124-11040
8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-48360
9011906A11
9167180616
9415180600
9613842501
9613852501
49 parts on this diagram · 8 diagrams in section
