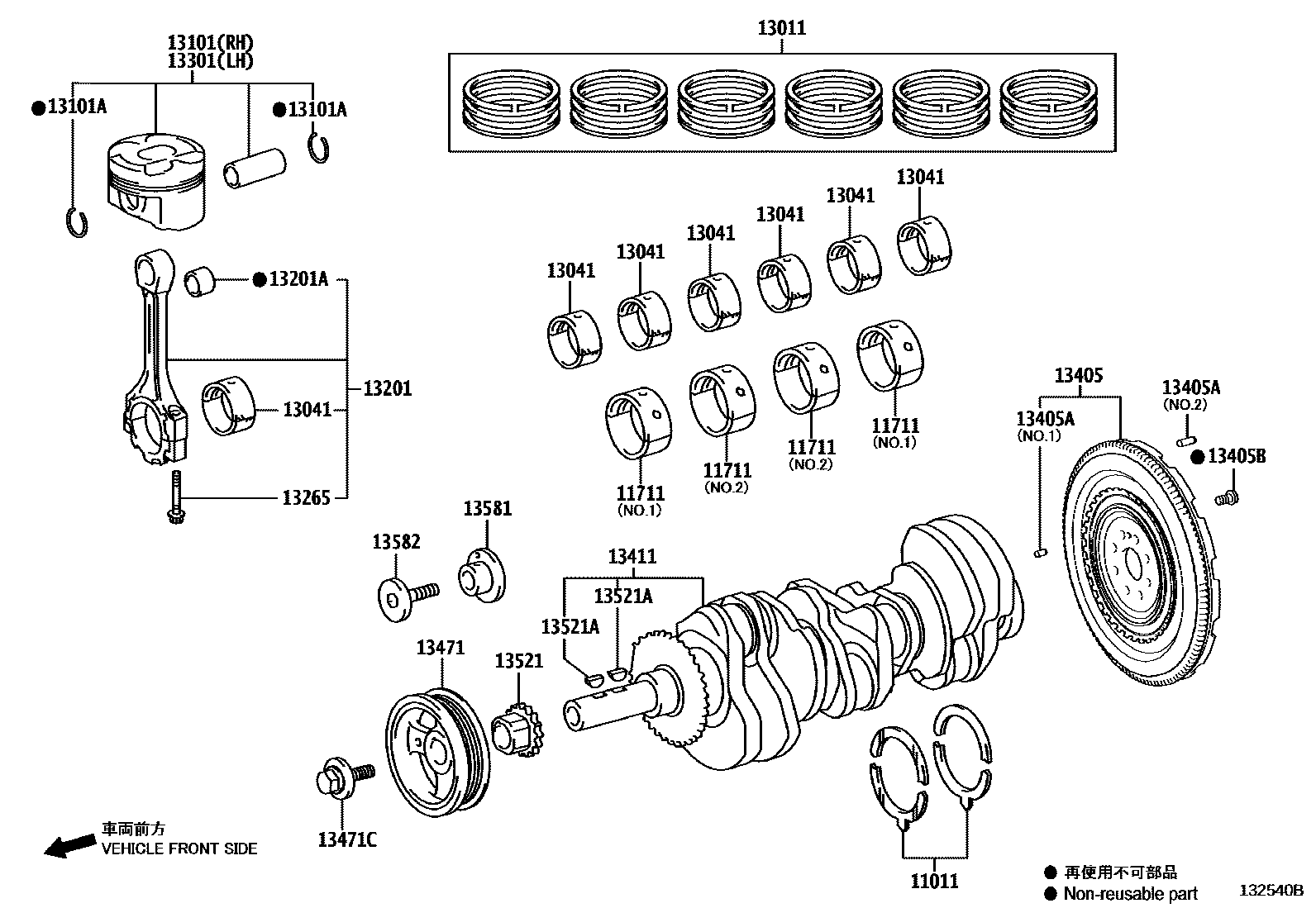

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK UPPER 1 LOWER 2,NO.2,REFER R/M
MARK UPPER 2 LOWER 3,NO.2,REFER R/M
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
MARK UPPER 1 LOWER 1,NO.3,REFER R/M
MARK UPPER 2 LOWER 2,NO.3,REFER R/M
MARK UPPER 3 LOWER 3,NO.3,REFER R/M
MARK UPPER 4 LOWER 4,NO.3,REFER R/M
MARK UPPER 5 LOWER 5,NO.3,REFER R/M
MARK UPPER 1 LOWER 2,NO.3,REFER R/M
MARK UPPER 2 LOWER 3,NO.3,REFER R/M
MARK UPPER 3 LOWER 4,NO.3,REFER R/M
MARK UPPER 4 LOWER 5,NO.3,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK UPPER 1 LOWER 2,NO.1,REFER R/M
MARK UPPER 2 LOWER 3,NO.1,REFER R/M
MARK UPPER 3 LOWER 4,NO.1,REFER R/M
MARK UPPER 4 LOWER 5,NO.1,REFER R/M
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK A,RH BANK
STD,MARK B,RH BANK
STD,MARK C,RH BANK
13201ROD SUB-ASSY, CONNECTING
MARK A
MARK B
MARK C
13201ABUSH(FOR CONNECTING ROD SMALL END)
13301PISTON SUB-ASSY, W/PIN, LH
STD,MARK A,LH BANK
STD,MARK B,LH BANK
STD,MARK C,LH BANK
STD
STD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=10,OD=6,NO.1
L=23,OD=8,NO.2
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
*714
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
