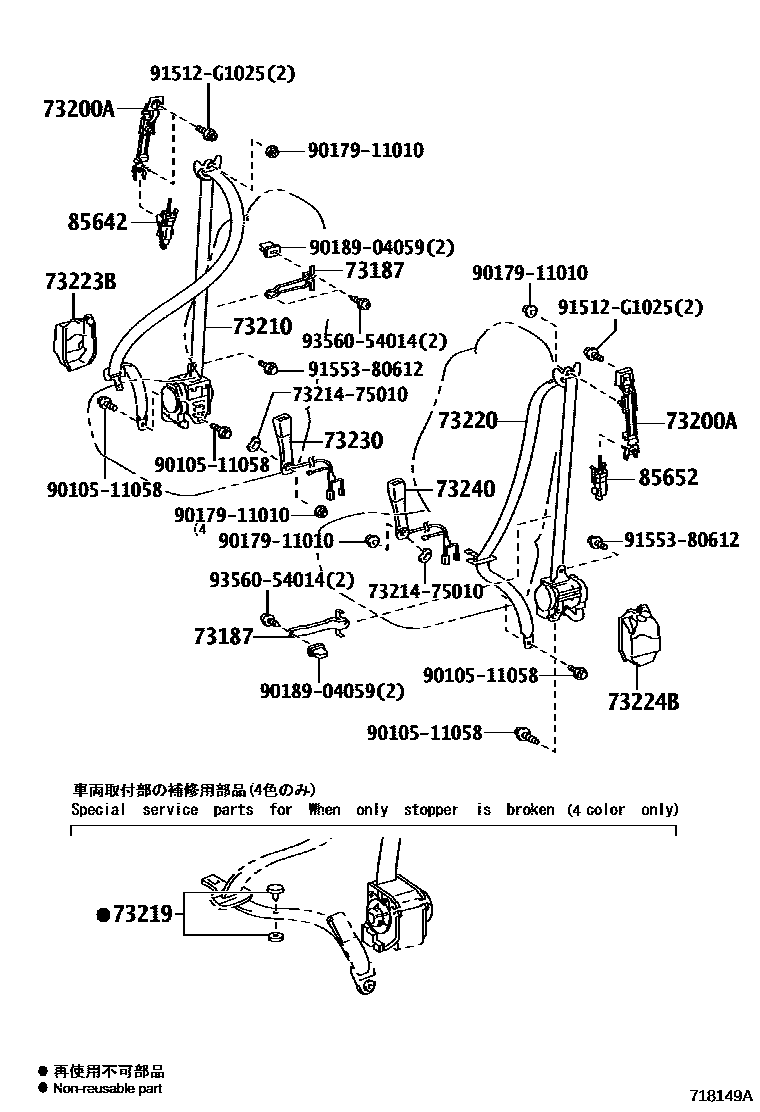

SEAT BELT & CHILD RESTRAINT SEAT
73187GUIDE, FRONT SEAT SHOULDER BELT
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK/IVORY,TRIM41,43,50,51
BLACK/IVORY,TRIM41,5#
BLACK/LT.GRAY,TRIM20,23,24,40
BLACK/LT.GRAY,TRIM2#,40
BLACK/BLACK,TRIM21,3#,42,43,52
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM0#
GRAY,TRIM1#
BLACK/IVORY,TRIM4#,5#
BLACK/IVORY,TRIM41,43,51
BLACK/LT.GRAY,TRIM23,24
BLACK/LT.GRAY,TRIM2#
BLACK/BLACK,TRIM21,3#,42,43,52
73223COVER, SEAT BELT RETRACTOR
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#,4#,5#
PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),BLACK,TRIM2#,4#,5#
BLACK,TRIM2#,3#,4#,5#
73240BELT ASSY, FRONT SEAT INNER, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,4#,5#
PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),BLACK,TRIM2#,4#,5#
85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH
85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH
7321475010PLATE, FRONT SEAT BELT ANCHOR
9010511058
9017911010
9018904059
91512G1025
9155380612
9356054014
19 parts on this diagram · 4 diagrams in section
