REAR SEAT & SEAT TRACK

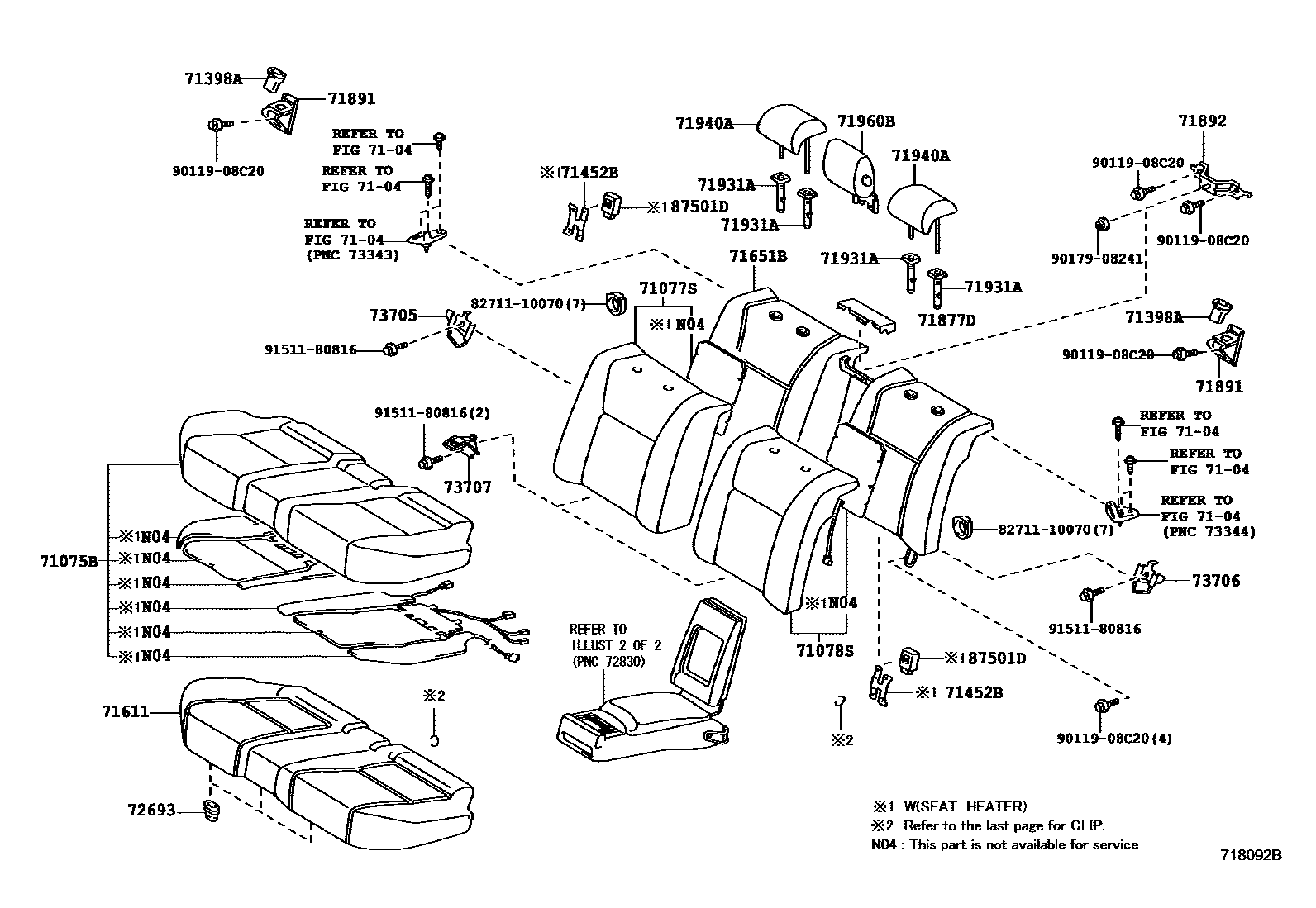

Parts diagram
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-50J60-21i201209-201708
BLACK/GRAY,TRIM20,23
main71075-50J60-21i201209-201708
BLACK/GRAY,TRIM2#
main71075-50J60-22i201209-201708
BLA/SADDLE TAN/SADDLE TAN,TRIM4#
main71075-50J60-23i201209-201708
BLACK/WHITE/LT.GRAY,TRIM21
main71075-50J60-A9i201209-201708
IVORY/IVORY,TRIM0#
main71075-50J60-B3i201209-201708
LT.GRAY/DK.GRAY,TRIM1#
main71075-50J60-F3i201209-201708
TOPAZ BROWN/IVORY,TRIM5#
main71075-50J70-02i201209-201407
VERSION C,IVORY/IVORY,TRIM0#
main71075-50J70-02i201209-201407
KOREA SPEC,IVORY/IVORY,TRIM0#
main71075-50J70-02i201209-201407
KOREA SPEC&VERSION C,IVORY/IVORY,TRIM0#
main71075-50J70-02i201209-201407
IVORY/IVORY,TRIM0#
main71075-50J70-25i201209-201407
KOREA SPEC,BLACK/GRAY,TRIM2#
main71075-50J70-25i201209-201407
KOREA SPEC&VERSION C,BLACK/GRAY,TRIM2#
main71075-50J70-25i201209-201407
VERSION C,BLACK/GRAY,TRIM20,23
main71075-50J70-25i201209-201407
BLACK/GRAY,TRIM2#
main71075-50J70-26i201209-201407
KOREA SPEC,BLACK/SADDLE TAN/SADDLE T,TRIM4#
main71075-50J70-26i201209-201407
KOREA SPEC&VERSION C,BLACK/SADDLE TAN/SADDLE T,TRIM4#
main71075-50J70-26i201209-201407
VERSION C,BLACK/SADDLE TAN/SADDLE T,TRIM4#
main71075-50J70-26i201209-201407
BLACK/SADDLE TAN/SADDLE T,TRIM4#
main71075-50J70-B5i201209-201407
KOREA SPEC&VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71075-50J70-B5i201209-201407
LT.GRAY/DK.GRAY,TRIM1#
main71075-50J70-B5i201209-201407
KOREA SPEC,LT.GRAY/DK.GRAY,TRIM1#
main71075-50J70-B5i201209-201407
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71075-50J70-F5i201209-201407
KOREA SPEC,TOPAZ BROWM/IVORY,TRIM5#
main71075-50J70-F5i201209-201407
KOREA SPEC&VERSION C,TOPAZ BROWM/IVORY,TRIM5#
main71075-50J70-F5i201209-201407
VERSION C,TOPAZ BROWM/IVORY,TRIM5#
main71075-50J70-F5i201209-201407
TOPAZ BROWM/IVORY,TRIM5#
main71075-50J71-02i201407-201708
IVORY/IVORY,TRIM0#
main71075-50J71-02i201407-201708
KOREA SPEC,IVORY/IVORY,TRIM0#
main71075-50J71-02i201407-201708
KOREA SPEC&VERSION C,IVORY/IVORY,TRIM0#
main71075-50J71-02i201407-201708
VERSION C,IVORY/IVORY,TRIM0#
main71075-50J71-25i201407-201708
BLACK/GRAY,TRIM2#
main71075-50J71-25i201407-201708
KOREA SPEC,BLACK/GRAY,TRIM2#
main71075-50J71-25i201407-201708
KOREA SPEC&VERSION C,BLACK/GRAY,TRIM2#
main71075-50J71-25i201407-201708
VERSION C,BLACK/GRAY,TRIM23
main71075-50J71-26i201407-201708
BLACK/SADDLE TAN/SADDLE T,TRIM4#
main71075-50J71-26i201407-201708
KOREA SPEC,BLACK/SADDLE TAN/SADDLE T,TRIM4#
main71075-50J71-26i201407-201708
KOREA SPEC&VERSION C,BLACK/SADDLE TAN/SADDLE T,TRIM4#
main71075-50J71-26i201407-201708
VERSION C,BLACK/SADDLE TAN/SADDLE T,TRIM4#
main71075-50J71-B5i201407-201708
KOREA SPEC,LT.GRAY/DK.GRAY,TRIM1#
main71075-50J71-B5i201407-201708
LT.GRAY/DK.GRAY,TRIM1#
main71075-50J71-B5i201407-201708
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71075-50J71-B5i201407-201708
KOREA SPEC&VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71075-50J71-F5i201407-201708
KOREA SPEC,TOPAZ BROWM/IVORY,TRIM5#
main71075-50J71-F5i201407-201708
KOREA SPEC&VERSION C,TOPAZ BROWM/IVORY,TRIM5#
main71075-50J71-F5i201407-201708
VERSION C,TOPAZ BROWM/IVORY,TRIM5#
main71075-50J71-F5i201407-201708
F SPORT,TOPAZ BROWM/IVORY,TRIM5#
main71075-50J71-F5i201407-201708
TOPAZ BROWM/IVORY,TRIM5#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-50G50-A9i201209-201708
IVORY/IVORY,TRIM0#
main71077-50G50-B3i201209-201708
LT.GRAY/DK.GRAY,TRIM1#
main71077-50G50-C7i201209-201708
BLACK/GRAY,TRIM20,23
main71077-50G50-C7i201209-201708
BLACK/GRAY,TRIM2#
main71077-50G50-C8i201209-201708
BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G50-C9i201209-201708
BLACK/WHITE/BLACK/LT.GRAY,TRIM21
main71077-50G50-F2i201209-201708
T BROWM/T BROWN/IVORY,TRIM5#
main71077-50G60-02i201209-201407
KOREA SPEC,IVORY/IVORY,TRIM0#
main71077-50G60-02i201209-201407
IVORY/IVORY,TRIM0#
main71077-50G60-02i201209-201407
VERSION C,IVORY/IVORY,TRIM0#
main71077-50G60-02i201209-201407
KOREA SPEC&VERSION C,IVORY/IVORY,TRIM0#
main71077-50G60-20i201209-201407
KOREA SPEC&VERSION C,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G60-20i201209-201407
BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G60-20i201209-201407
KOREA SPEC,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G60-20i201209-201407
VERSION C,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G60-B4i201209-201407
KOREA SPEC,LT.GRAY/DK.GRAY,TRIM1#
main71077-50G60-B4i201209-201407
KOREA SPEC&VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71077-50G60-B4i201209-201407
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71077-50G60-B4i201209-201407
LT.GRAY/DK.GRAY,TRIM1#
main71077-50G60-C9i201209-201407
KOREA SPEC,BLACK/GRAY,TRIM2#
main71077-50G60-C9i201209-201407
KOREA SPEC&VERSION C,BLACK/GRAY,TRIM2#
main71077-50G60-C9i201209-201407
VERSION C,BLACK/GRAY,TRIM20,23
main71077-50G60-C9i201209-201407
BLACK/GRAY,TRIM2#
main71077-50G60-F3i201209-201407
KOREA SPEC&VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71077-50G60-F3i201209-201407
TOPAZ BROWN/IVORY,TRIM5#
main71077-50G60-F3i201209-201407
KOREA SPEC,TOPAZ BROWN/IVORY,TRIM5#
main71077-50G60-F3i201209-201407
VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71077-50G61-02i201407-201708
VERSION C,IVORY/IVORY,TRIM0#
main71077-50G61-02i201407-201708
KOREA SPEC&VERSION C,IVORY/IVORY,TRIM0#
main71077-50G61-02i201407-201708
KOREA SPEC,IVORY/IVORY,TRIM0#
main71077-50G61-02i201407-201708
IVORY/IVORY,TRIM0#
main71077-50G61-20i201407-201708
VERSION C,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G61-20i201407-201708
BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G61-20i201407-201708
KOREA SPEC,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G61-20i201407-201708
KOREA SPEC&VERSION C,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71077-50G61-B4i201407-201708
LT.GRAY/DK.GRAY,TRIM1#
main71077-50G61-B4i201407-201708
KOREA SPEC,LT.GRAY/DK.GRAY,TRIM1#
main71077-50G61-B4i201407-201708
KOREA SPEC&VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71077-50G61-B4i201407-201708
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71077-50G61-C9i201407-201708
BLACK/GRAY,TRIM2#
main71077-50G61-C9i201407-201708
KOREA SPEC,BLACK/GRAY,TRIM2#
main71077-50G61-C9i201407-201708
KOREA SPEC&VERSION C,BLACK/GRAY,TRIM2#
main71077-50G61-C9i201407-201708
VERSION C,BLACK/GRAY,TRIM23
main71077-50G61-F3i201407-201708
F SPORT,TOPAZ BROWN/IVORY,TRIM5#
main71077-50G61-F3i201407-201708
TOPAZ BROWN/IVORY,TRIM5#
main71077-50G61-F3i201407-201708
KOREA SPEC,TOPAZ BROWN/IVORY,TRIM5#
main71077-50G61-F3i201407-201708
KOREA SPEC&VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71077-50G61-F3i201407-201708
VERSION C,TOPAZ BROWN/IVORY,TRIM5#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-50E30-A9i201209-201708
IVORY/IVORY,TRIM0#
main71078-50E30-B3i201209-201708
LT.GRAY/DK.GRAY,TRIM1#
main71078-50E30-C7i201209-201708
BLACK/GRAY,TRIM20,23
main71078-50E30-C7i201209-201708
BLACK/GRAY,TRIM2#
main71078-50E30-C8i201209-201708
BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E30-C9i201209-201708
BLACK/WHITE/BLACK/LT.GRAY,TRIM21
main71078-50E30-F2i201209-201708
T BROWM/T BROWN/IVORY,TRIM5#
main71078-50E40-02i201209-201407
KOREA SPEC,IVORY/IVORY,TRIM0#
main71078-50E40-02i201209-201407
KOREA SPEC&VERSION C,IVORY/IVORY,TRIM0#
main71078-50E40-02i201209-201407
VERSION C,IVORY/IVORY,TRIM0#
main71078-50E40-02i201209-201407
IVORY/IVORY,TRIM0#
main71078-50E40-20i201209-201407
KOREA SPEC,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E40-20i201209-201407
KOREA SPEC&VERSION C,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E40-20i201209-201407
VERSION C,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E40-20i201209-201407
BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E40-B4i201209-201407
KOREA SPEC&VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71078-50E40-B4i201209-201407
LT.GRAY/DK.GRAY,TRIM1#
main71078-50E40-B4i201209-201407
KOREA SPEC,LT.GRAY/DK.GRAY,TRIM1#
main71078-50E40-B4i201209-201407
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71078-50E40-C9i201209-201407
KOREA SPEC&VERSION C,BLACK/GRAY,TRIM2#
main71078-50E40-C9i201209-201407
VERSION C,BLACK/GRAY,TRIM20,23
main71078-50E40-C9i201209-201407
KOREA SPEC,BLACK/GRAY,TRIM2#
main71078-50E40-C9i201209-201407
BLACK/GRAY,TRIM2#
main71078-50E40-F3i201209-201407
KOREA SPEC,TOPAZ BROWN/IVORY,TRIM5#
main71078-50E40-F3i201209-201407
KOREA SPEC&VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71078-50E40-F3i201209-201407
VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71078-50E40-F3i201209-201407
TOPAZ BROWN/IVORY,TRIM5#
main71078-50E41-02i201407-201708
IVORY/IVORY,TRIM0#
main71078-50E41-02i201407-201708
KOREA SPEC,IVORY/IVORY,TRIM0#
main71078-50E41-02i201407-201708
KOREA SPEC&VERSION C,IVORY/IVORY,TRIM0#
main71078-50E41-02i201407-201708
VERSION C,IVORY/IVORY,TRIM0#
main71078-50E41-20i201407-201708
BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E41-20i201407-201708
KOREA SPEC,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E41-20i201407-201708
KOREA SPEC&VERSION C,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E41-20i201407-201708
VERSION C,BLACK/S TAN/BLACK/S TAN,TRIM4#
main71078-50E41-B4i201407-201708
LT.GRAY/DK.GRAY,TRIM1#
main71078-50E41-B4i201407-201708
KOREA SPEC,LT.GRAY/DK.GRAY,TRIM1#
main71078-50E41-B4i201407-201708
KOREA SPEC&VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71078-50E41-B4i201407-201708
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71078-50E41-C9i201407-201708
BLACK/GRAY,TRIM2#
main71078-50E41-C9i201407-201708
KOREA SPEC,BLACK/GRAY,TRIM2#
main71078-50E41-C9i201407-201708
KOREA SPEC&VERSION C,BLACK/GRAY,TRIM2#
main71078-50E41-C9i201407-201708
VERSION C,BLACK/GRAY,TRIM23
main71078-50E41-F3i201407-201708
KOREA SPEC&VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71078-50E41-F3i201407-201708
TOPAZ BROWN/IVORY,TRIM5#
main71078-50E41-F3i201407-201708
KOREA SPEC,TOPAZ BROWN/IVORY,TRIM5#
main71078-50E41-F3i201407-201708
VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71078-50E41-F3i201407-201708
F SPORT,TOPAZ BROWN/IVORY,TRIM5#
71398AHOLDER, REAR SEATBACK
main71398-30010i201209
71452BBRACKET, REAR SEATBACK
main71452-50030i201209-201708
KOREA SPEC&VERSION C
main71452-50030i201209-201708
KOREA SPEC
main71452-50030i201209-201708
VERSION C&SEMI-ANILINE LEATHER SEAT
main71452-50030i201209-201708
VERSION C
71611PAD, REAR SEAT CUSHION
main71503-50110i201209
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-50050i201209
71877DCOVER, REAR SEAT ARMREST HOLE
main71877-50030-A2i201209-201708
IVORY,TRIM0#
sub71877-50030
main71877-50030-B0i201209-201708
LT.GRAY,TRIM1#
sub71877-50030
main71877-50030-C0i201209-201708
BLACK,TRIM2#,4#,5#
sub71877-50030
main71877-50030-C0i201209-201708
VERSION C&SEMI-ANILINE LEATHER SEAT,BLACK,TRIM2#,4#,5#
sub71877-50030
main71877-50030-C0i201209-201708
BLACK,TRIM2#,3#,4#,5#
sub71877-50030
71891BRACKET, REAR SEATBACK SET, NO.1
main71891-50020i201209
71892BRACKET, REAR SEATBACK SET, NO.2
main71892-50010i201209
71931ASUPPORT, REAR SEAT HEADREST
main71930-52030-A3i201209-201708
W(LOCK)&W(BUTTON),IVORY,TRIM0#
sub71930-52030
main71930-52030-B5i201209-201708
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
sub71930-52030
main71930-52030-C0i201209-201708
W(LOCK)&W(BUTTON),BLACK,TRIM2#,3#,4#,5#
sub71930-52030
main71930-52030-C0i201209-201708
W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#,5#
sub71930-52030
main71931-42020-A6i201209-201708
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
sub71931-42020
main71931-42020-B2i201209-201708
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#
sub71931-42020
main71931-42020-C0i201209-201708
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,3#,4#,5#
sub71931-42020
main71931-42020-C0i201209-201708
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,4#,5#
sub71931-42020
71940AHEADREST ASSY, REAR SEAT
main71940-50830-A4i201209-201708
IVORY/IVORY,TRIM0#
main71940-50830-B2i201209-201708
LT.GRAY/DK.GRAY,TRIM1#
main71940-50830-C6i201209-201708
BLACK/GRAY,TRIM20,23
main71940-50830-C6i201209-201708
BLACK/GRAY,TRIM2#
main71940-50830-C7i201209-201708
BLACK/LT.GRAY,TRIM21
main71940-50830-C8i201209-201708
BLACK/SADDLE TAN,TRIM4#
main71940-50830-F2i201209-201708
TOPAZ BROWN/IVORY,TRIM5#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-50320-A7i201209-201708
IVORY,TRIM0#
main71960-50320-B4i201209-201708
LT.GRAY,TRIM1#
main71960-50320-C5i201209-201708
BLACK,TRIM2#,3#,4#
main71960-50320-C5i201209-201708
BLACK,TRIM2#,4#
main71960-50320-F5i201209-201708
TOPAZ BROWN,TRIM5#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i201209
KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)
main72693-12080i201209
VERSION L
main72693-12080i201209
EXECUTIVE PACKAGE(5SEAT)
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-50021i201209
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-50021i201209
73707BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
main73707-50020i201209
EXECUTIVE PACKAGE(4SEAT)
main73707-50020i201209
EXECUTIVE PACKAGE(5SEAT)
87501DCONTROL SUB-ASSY, SEAT HEATER
main87501-50030i201209-201708
KOREA SPEC
main87501-50030i201209-201708
KOREA SPEC&VERSION C
main87501-50030i201209-201708
KOREA SPEC&VERSION L&SEMI-ANILINE LEATHER SEAT
main87501-50030i201209-201708
KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE
main87501-50030i201209-201708
VERSION C
main87501-50030i201209-201708
VERSION C&SEMI-ANILINE LEATHER SEAT
main87501-50030i201209-201708
VERSION L&SEMI-ANILINE LEATHER SEAT
main87501-50030i201209-201708
EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLA
main87501-50030i201209-201708
EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
9011908C20
main90119-08C20
9017908241
main90179-08241
9151180816
main91511-80816

23 parts on this diagram · 11 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
