FRONT SEAT & SEAT TRACK

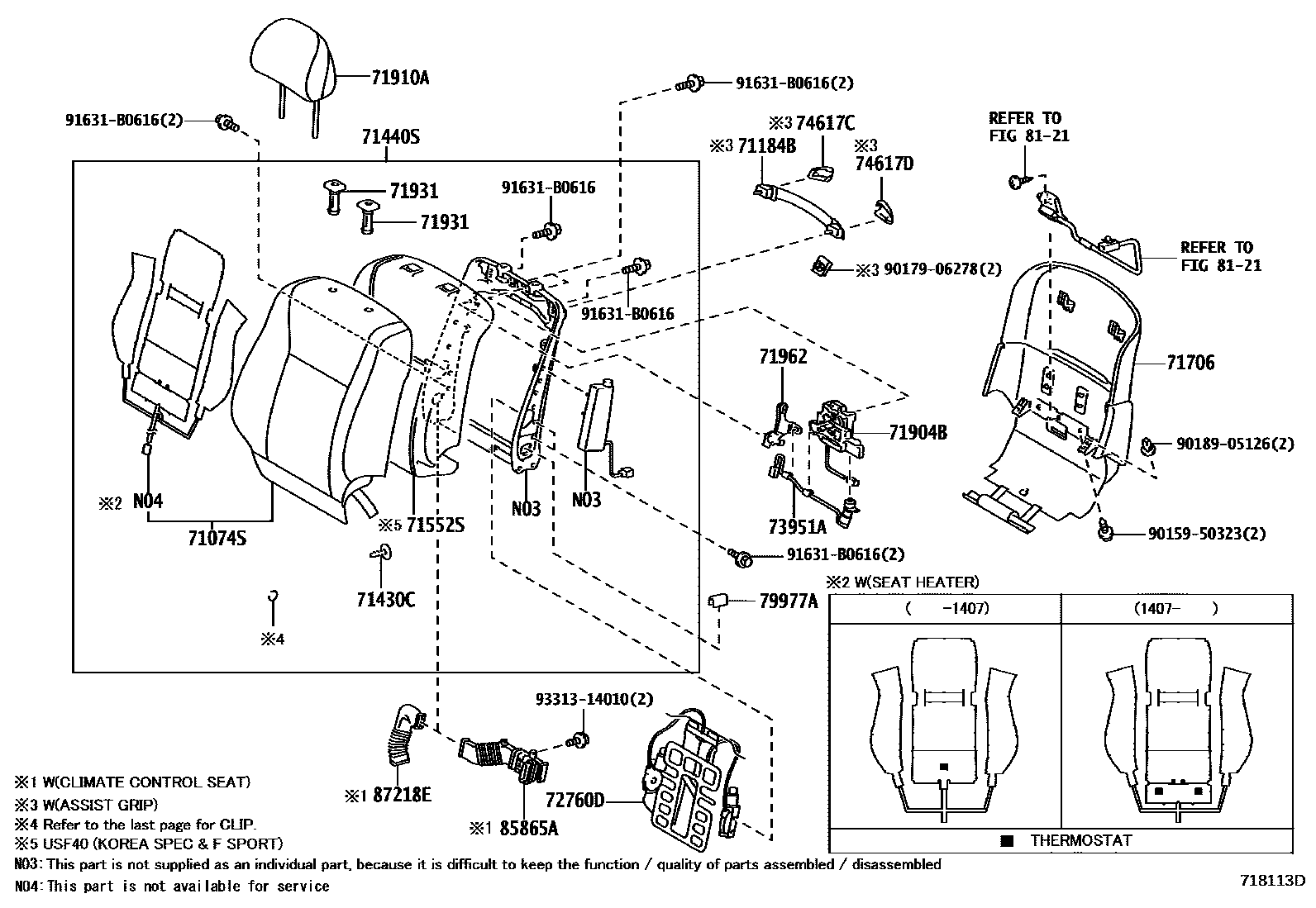

Parts diagram
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-50G50-A2i201209-201708
IVORY/IVORY,TRIM0#
main71074-50G50-B2i201209-201708
LT.GRAY/DK.GRAY,TRIM1#
main71074-50G50-C4i201209-201708
BLACK/GRAY,TRIM2#
main71074-50G50-C5i201209-201708
BLA/SADDLE TAN/SADDLE TAN,TRIM4#
main71074-50G50-F2i201209-201708
TOPAZ BROWM/IVORY,TRIM5#
main71074-50G60-A3i201209-201407
IVORY/IVORY,TRIM0#
main71074-50G60-A3i201209-201407
VERSION C,IVORY/IVORY,TRIM0#
main71074-50G60-B3i201209-201407
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71074-50G60-B3i201209-201407
LT.GRAY/DK.GRAY,TRIM1#
main71074-50G60-C6i201209-201407
BLACK/GRAY,TRIM2#
main71074-50G60-C6i201209-201407
VERSION C,BLACK/GRAY,TRIM2#
main71074-50G60-C7i201209-201407
VERSION C,BLA/SADDLE TAN/SADDLE TAN,TRIM4#
main71074-50G60-C7i201209-201407
BLA/SADDLE TAN/SADDLE TAN,TRIM4#
main71074-50G60-F3i201209-201407
VERSION C,TOPAZ BROWM/IVORY,TRIM5#
main71074-50G60-F3i201209-201407
TOPAZ BROWM/IVORY,TRIM5#
main71074-50G61-A3i201407-201708
IVORY/IVORY,TRIM0#
main71074-50G61-A3i201407-201708
VERSION C,IVORY/IVORY,TRIM0#
main71074-50G61-B3i201407-201708
LT.GRAY/DK.GRAY,TRIM1#
main71074-50G61-B3i201407-201708
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71074-50G61-C6i201407-201708
BLACK/GRAY,TRIM2#
main71074-50G61-C6i201407-201708
VERSION C,BLACK/GRAY,TRIM2#
main71074-50G61-C7i201407-201708
BLA/SADDLE TAN/SADDLE TAN,TRIM4#
main71074-50G61-C7i201407-201708
VERSION C,BLA/SADDLE TAN/SADDLE TAN,TRIM4#
main71074-50G61-F3i201407-201708
TOPAZ BROWM/IVORY,TRIM5#
main71074-50G61-F3i201407-201708
VERSION C,TOPAZ BROWM/IVORY,TRIM5#
71184BSUPPORT, FRONT SEATBACK, LH
71430CCLIP
main90467-05161-C0i201209-201708
BLACK
sub90467-05161
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-50L90-A3i201209-201407
IVORY/IVORY,TRIM0#
main71440-50L90-A3i201209-201407
VERSION C,IVORY/IVORY,TRIM0#
main71440-50L90-B3i201209-201407
LT.GRAY/DK.GRAY,TRIM1#
main71440-50L90-B3i201209-201407
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71440-50L90-C3i201209-201407
BLACK/GRAY,TRIM2#
main71440-50L90-C3i201209-201407
VERSION C,BLACK/GRAY,TRIM2#
main71440-50L90-E3i201209-201407
BLACK/SADDLE TAN,TRIM4#
main71440-50L90-E3i201209-201407
VERSION C,BLACK/SADDLE TAN,TRIM4#
main71440-50L90-F3i201209-201407
TOPAZ BROWN/IVORY,TRIM5#
main71440-50L90-F3i201209-201407
VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71440-50L91-A0i201407-201708
IVORY/IVORY,TRIM0#
main71440-50L91-A0i201407-201708
VERSION C,IVORY/IVORY,TRIM0#
main71440-50L91-B0i201407-201708
LT.GRAY/DK.GRAY,TRIM1#
main71440-50L91-B0i201407-201708
VERSION C,LT.GRAY/DK.GRAY,TRIM1#
main71440-50L91-C0i201407-201705
VERSION C,BLACK/GRAY,TRIM2#
main71440-50L91-C0i201407-201705
BLACK/GRAY,TRIM2#
main71440-50L91-C1i201705-201708
VERSION C,BLACK/GRAY,TRIM2#
main71440-50L91-C1i201705-201708
BLACK/GRAY,TRIM2#
main71440-50L91-E0i201407-201705
BLACK/SADDLE TAN,TRIM4#
main71440-50L91-E0i201407-201705
VERSION C,BLACK/SADDLE TAN,TRIM4#
main71440-50L91-E1i201705-201708
BLACK/SADDLE TAN,TRIM4#
main71440-50L91-E1i201705-201708
VERSION C,BLACK/SADDLE TAN,TRIM4#
main71440-50L91-F0i201407-201705
TOPAZ BROWN/IVORY,TRIM5#
main71440-50L91-F0i201407-201705
VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71440-50L91-F1i201705-201708
TOPAZ BROWN/IVORY,TRIM5#
main71440-50L91-F1i201705-201708
VERSION C,TOPAZ BROWN/IVORY,TRIM5#
main71440-50M00-A2i201209-201410
IVORY/IVORY,TRIM0#
sub71440-50M00
main71440-50M00-A3i201410-201708
IVORY/IVORY,TRIM0#
sub71440-50M00
main71440-50M00-B2i201209-201410
LT.GRAY/DK.GRAY,TRIM1#
sub71440-50M00
main71440-50M00-B3i201410-201708
LT.GRAY/DK.GRAY,TRIM1#
sub71440-50M00
main71440-50M00-C2i201209-201410
BLACK/GRAY,TRIM2#
sub71440-50M00
main71440-50M00-C3i201410-201705
BLACK/GRAY,TRIM2#
sub71440-50M00
main71440-50M00-C4i201705-201708
BLACK/GRAY,TRIM2#
sub71440-50M00
main71440-50M00-E2i201209-201410
BLA/SADDLE TAN/SADDLE TAN,TRIM4#
sub71440-50M00
main71440-50M00-E3i201410-201705
BLA/SADDLE TAN/SADDLE TAN,TRIM4#
sub71440-50M00
main71440-50M00-E5i201705-201708
BLA/SADDLE TAN/SADDLE TAN,TRIM4#
sub71440-50M00
main71440-50M00-F2i201209-201410
TOPAZ BROWN/IVORY,TRIM5#
sub71440-50M00
main71440-50M00-F3i201410-201705
TOPAZ BROWN/IVORY,TRIM5#
sub71440-50M00
main71440-50M00-F4i201705-201708
TOPAZ BROWN/IVORY,TRIM5#
sub71440-50M00
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71706-50010-A6i201209-201708
IVORY,TRIM0#
sub71706-50010
main71706-50010-C1i201209-201708
BLACK,TRIM1#,2#,3#,4#,5#
sub71706-50010
main71706-50010-C1i201209-201708
BLACK,TRIM1#,2#,4#,5#
sub71706-50010
71904BADJUSTER SUB-ASSY, FRONT SEAT HEADREST
main71904-50200i201209-201708
71910AHEADREST ASSY, FRONT SEAT
main71910-50A00-02i201209-201708
IVORY/IVORY,TRIM0#
main71910-50A00-24i201209-201708
BLACK/GRAY,TRIM2#
main71910-50A00-25i201209-201708
BLACK/SADDLE TAN,TRIM4#
main71910-50A00-B5i201209-201708
LT.GRAY/DK.GRAY,TRIM1#
main71910-50A00-F6i201209-201708
TOPAZ BROWM/IVORY,TRIM5#
71931SUPPORT, FRONT SEAT HEADREST
main71931-50060-A3i201209-201708
W/O(LOCK),KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION& DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE,IVORY,TRIM0#
sub71931-50060
main71931-50060-A3i201209-201708
W/O(LOCK),IVORY,TRIM0#
sub71931-50060
main71931-50060-B0i201209-201708
W/O(LOCK),LT.GRAY,TRIM1#
sub71931-50060
main71931-50060-B0i201209-201708
W/O(LOCK),KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION& DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE,LT.GRAY,TRIM1#
sub71931-50060
main71931-50060-C0i201209-201705
W/O(LOCK),BLACK,TRIM2#,4#,5#
sub71931-50060
main71931-50060-C0i201209-201705
W/O(LOCK),KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION& DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE,BLACK,TRIM2#,4#,5#
sub71931-50060
main71931-50060-C0i201209-201705
W/O(LOCK),BLACK,TRIM2#,3#,4#,5#
sub71931-50060
main71931-50060-C2i201705-201708
W/O(LOCK),KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION& DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE,BLACK,TRIM2#,4#,5#
sub71931-50060
main71931-50060-C2i201705-201708
W/O(LOCK),BLACK,TRIM2#,4#,5#
sub71931-50060
71962BRACKET, FRONT SEAT HEADREST
main71962-50020i201209
KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-50090i201209
73951AINFLATOR, ACTIVE HEADREST
main73951-50020i201209
KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE
74617CPLUG, ASSIST GRIP
74617DPLUG, ASSIST GRIP
79977AFELT, SEATBACK
main79977-50010i201209
8121
85865CONTROLLER, SEAT CLIMATE CONTROL,LH
main85865-50110i201209
KOREA SPEC&VERSION C
main85865-50110i201209
KOREA SPEC&VERSION L&SEMI-ANILINE LEATHER SEAT
main85865-50110i201209
VERSION C
main85865-50110i201209
VERSION C&SEMI-ANILINE LEATHER SEAT
main85865-50110i201209
VERSION L&SEMI-ANILINE LEATHER SEAT
85865ACONTROLLER, SEAT CLIMATE CONTROL, LH
main85865-50150i201209-201708
KOREA SPEC&VERSION C
main85865-50150i201209-201708
KOREA SPEC&VERSION L&SEMI-ANILINE LEATHER SEAT
main85865-50150i201209-201708
VERSION C
main85865-50150i201209-201708
VERSION C&SEMI-ANILINE LEATHER SEAT
main85865-50150i201209-201708
VERSION L&SEMI-ANILINE LEATHER SEAT
87218EDUCT, AIR, RR NO.6
main87218-50050i201209
KOREA SPEC&VERSION C
main87218-50050i201209
KOREA SPEC&VERSION L&SEMI-ANILINE LEATHER SEAT
main87218-50050i201209
VERSION C
main87218-50050i201209
VERSION C&SEMI-ANILINE LEATHER SEAT
main87218-50050i201209
VERSION L&SEMI-ANILINE LEATHER SEAT
9015950323
main90159-50323
9017906278
main90179-06278
9018905126
main90189-05126
91631B0616
main91631-B0616
9331314010
main93313-14010

24 parts on this diagram · 6 diagrams in section
