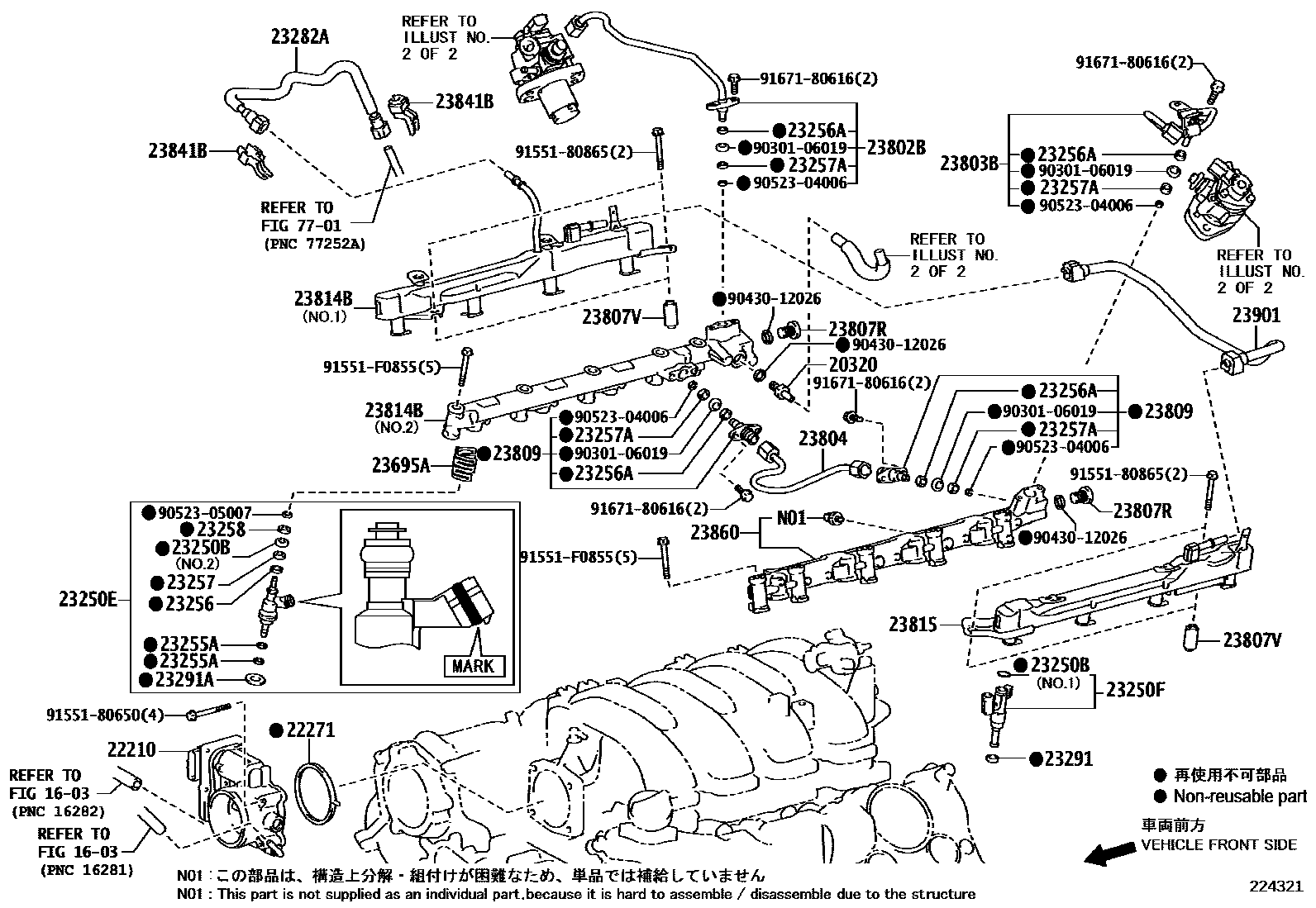

FUEL INJECTION SYSTEM
1603
20320VALVE ASSY, FUEL RELIEF
22210BODY ASSY, THROTTLE
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
NO.2
NO.1
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK YELLOW
MARK BLACK
MARK BROWN
MARK GREEN
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23256ARING, FUEL PIPE, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23257ARING, FUEL PIPE, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23282AHOSE, FUEL, NO.4
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23695ACLAMP, NOZZLE HOLDER
23802BPIPE SUB-ASSY, FUEL, NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23804PIPE SUB-ASSY, FUEL, NO.4
23807RPLUG, FUEL DELIVARY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23809SUPPORT SUB-ASSY, FUEL PIPE
23814BPIPE, FUEL DELIVERY
NO.1
NO.2
23815PIPE, FUEL DELIVERY, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
23901TUBE SUB-ASSY, FUEL
7701
9030106019
main90301-06019
9043012026
main90430-12026
9052304006
main90523-04006
9052305007
main90523-05007
9155180650
main91551-80650
9155180865
main91551-80865
91551F0855
main91551-F0855
9167180616
main91671-80616
37 parts on this diagram · 2 diagrams in section
