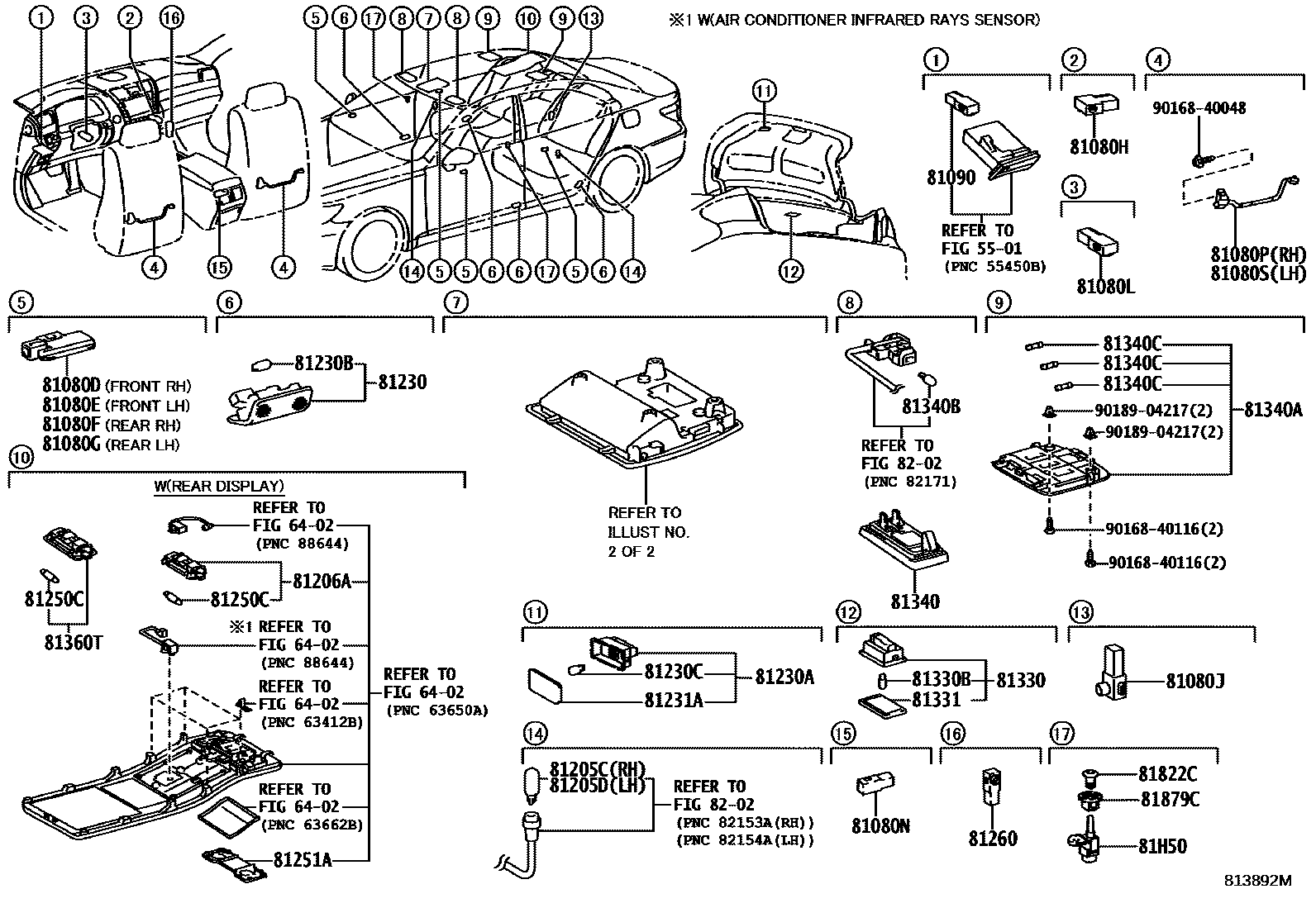

INTERIOR LAMP
5501
6402
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81205CBULB, ASH RECEPTACLE LAMP, REAR RH
81205DBULB, ASH RECEPTACLE LAMP, REAR LH
81206ALAMP SUB-ASSY, CONSOLE BOX
81230LAMP ASSY, COURTESY
sub81230-30200
81230ALAMP ASSY, COURTESY, NO.2
81230BBULB(FOR COURTESY LAMP)
12V 5W
81230CBULB(FOR COURTESY LAMP NO.2)
12V 3.8W
81231ALENS, COURTESY LAMP, NO.2
81250CBULB, SPOT LAMP
12V 8W
81251ALENS, SPOT LAMP
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
IVORY,TRIM00
MELLOW WHITE,TRIM01
MELLOW WHITE,TRIM07
IVORY,TRIM00
IVORY,TRIM00,06
I PACKAGE,IVORY,TRIM00,06
LT.GRAY,TRIM1#,2#
81340ALAMP ASSY, REAR VANITY
MELLOW WHITE,TRIM01
MELLOW WHITE,TRIM01,07
IVORY,TRIM00
IVORY,TRIM00,06
LT.GRAY,TRIM1#,2#
81340BBULB (FOR VANITY LAMP)
12V 8W
81340CBULB (FOR REAR VANITY LAMP)
81360TLAMP ASSY, SPOT
IVORY,TRIM00
MELLOW WHITE,TRIM01
LT.GRAY,TRIM1#,2#
MELLOW WHITE,TRIM01,07
IVORY,TRIM00,06
LT.GRAY,TRIM1#,2#
81822CCOVER, INDICATOR LAMP
81879CBRACKET, INDICATOR LAMP
81H50LAMP ASSY, INDICATOR
8202
9016840048
main90168-40048
9016840116
main90168-40116
9018904217
main90189-04217
39 parts on this diagram · 3 diagrams in section
