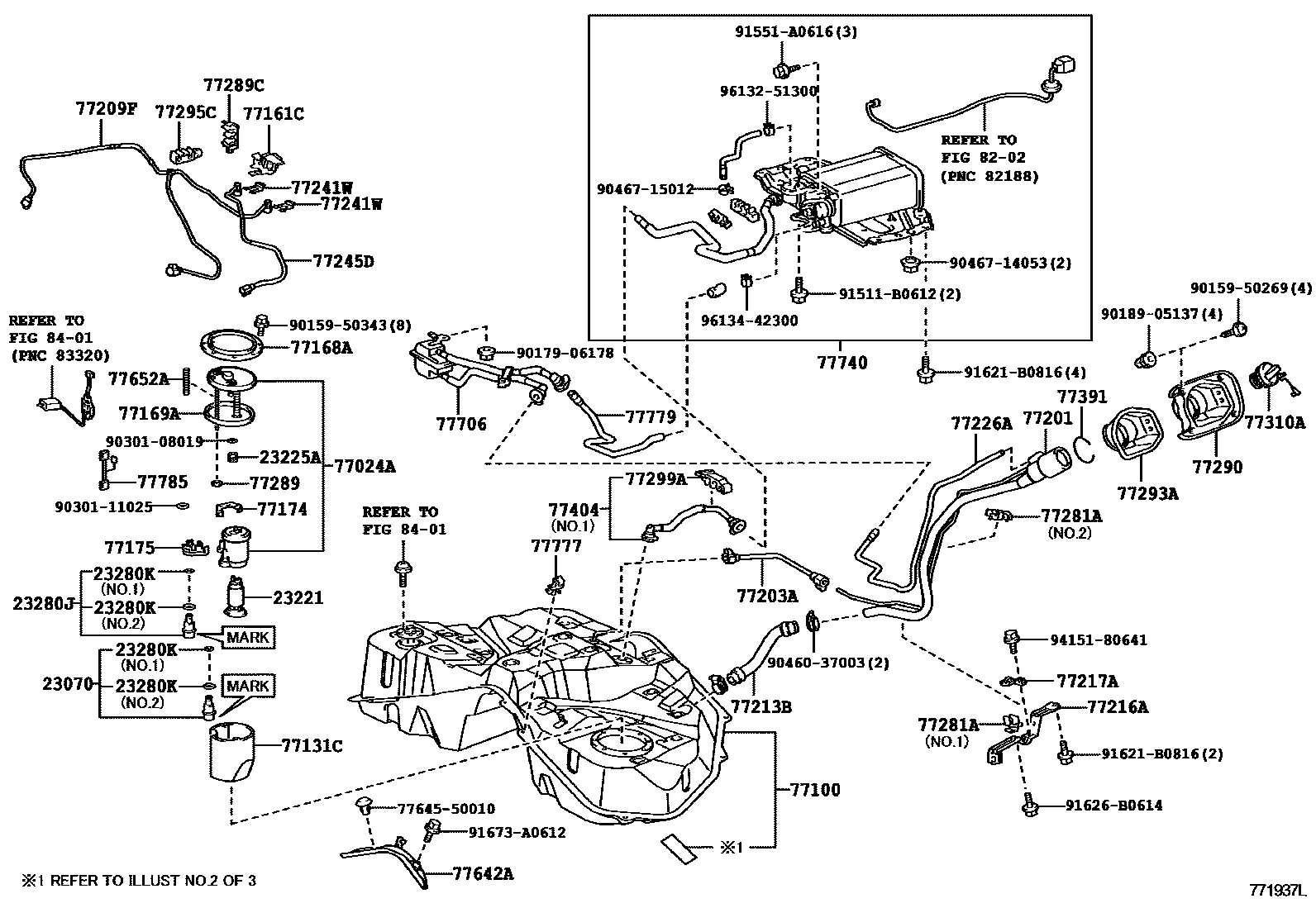

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
MARK 23070-38020
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
MARK 23280-38020
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77024APLATE SUB-ASSY, FUEL SUCTION
sub77024-50021
77131CSUB-TANK, FUEL, NO.1
77161CPROTECTOR, FUEL TANK, LOWER
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
sub77216-50041
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
sub77217-50071
77226ATUBE, FUEL TANK BREATHER, NO.6
77245DTUBE, FUEL TANK RETURN VENT
77281ACLAMP, FUEL FILLER PIPE
NO.1
NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77295CGROMMET, FUEL TUBE
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77391RING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
NO.1
NO.2
77642APROTECTOR, FUEL TANK, NO.2
77652CUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77706FILTER SUB-ASSY, CHARCOAL CANISTER
77740CANISTER ASSY, CHARCOAL
sub77740-50150
sub77740-50133
77777BRACKET, FUEL TUBE CLAMP
77779TUBE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
sub77785-50021
8202
8401
7764550010PACKING, FUEL TANK BRACKET UPPER, B
main77645-50010
9015950269
main90159-50269
9015950343
main90159-50343
9017906178
main90179-06178
9018905137
main90189-05137
9030108019
main90301-08019
9030111025
main90301-11025
9046037003
main90460-37003
9046714053
main90467-14053
9046715012
main90467-15012
91511B0612
main91511-B0612
91551A0616
main91551-A0616
91621B0816
main91621-B0816
91626B0614
main91626-B0614
91673A0612
main91673-A0612
9415180641
main94151-80641
9613251300
main96132-51300
9613442300
main96134-42300
60 parts on this diagram · 4 diagrams in section
