LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
ELECTRICAL KEY(2)+CARD TYPE(1)
ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(WITHOUT/TRUNK THROW)
sub69005-50A20
ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)
sub69005-50A20
ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)
sub69005-50A20
ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(OTTOMAN:5SEAT+*RSE)
sub69005-50A20
KOREA SPEC&VERSION U OR U I PACKAGE OR KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
sub69005-50A20
sub69005-50A20
ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER)
sub69005-50A30
ELECTRICAL KEY(2) + CARD TYPE(1)&REAR ARMREST-WITH(OTTOMAN CIGARETTE)
sub69005-50A30
USA POSSESSIONS&ELECTRICAL KEY(2) + CARD TYPE(1)&WITH(REAR COOLER)
sub69005-50A30
KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)&WITH(REAR COOLER)
sub69005-50A30
ELECTRICAL KEY(2) + CARD TYPE(1)&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
sub69005-50A30
ELECTRICAL KEY(2) + CARD TYPE(1)&REAR ARMREST-WITH(WITH/OTTOMAN 12V)
sub69005-50A30
USA POSSESSIONS&ELECTRICAL KEY(2)+CARD TYPE(1)&WITH(REAR COOLER)
sub69005-50A30
KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)&WITH(REAR COOLER)
sub69005-50A30
ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
sub69005-50A30
ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET)
sub69005-50A30
69503AKEY, BLANK
BLANK KEY
69503BKEY, CUT
MASTER KEY
69503DKEY, CUT(CARD KEY)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(OTTOMAN:5SEAT+*RSE)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(WITHOUT/TRUNK THROW)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)
MASTER KEY,KOREA SPEC&VERSION U OR U I PACKAGE OR KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
MASTER KEY,KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)&WITH(REAR COOLER)
MASTER KEY,USA POSSESSIONS&ELECTRICAL KEY(2) + CARD TYPE(1)&WITH(REAR COOLER)
MASTER KEY,KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)&WITH(REAR COOLER)
MASTER KEY,ELECTRICAL KEY(2) + CARD TYPE(1)
MASTER KEY,ELECTRICAL KEY(2) + CARD TYPE(1)&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
MASTER KEY,ELECTRICAL KEY(2) + CARD TYPE(1)&REAR ARMREST-WITH(WITH/OTTOMAN 12V)
MASTER KEY,ELECTRICAL KEY(2) + CARD TYPE(1)&REAR ARMREST-WITH(OTTOMAN CIGARETTE)
MASTER KEY,USA POSSESSIONS&ELECTRICAL KEY(2)+CARD TYPE(1)&WITH(REAR COOLER)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET)
MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER)
69503EKEY, BLANK(CARD KEY)
MASTER KEY
8424
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
sub89072-53231
KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
KOREA SPEC
89745ABATTERY, TRANSMITTER
KOREA SPEC
KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
89745BBATTERY, TRANSMITTER(CARD KEY)
KOREA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
ELECTRICAL KEY(2) + CARD TYPE(1)
KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
ELECTRICAL KEY(2)+CARD TYPE(1)
89751ACOVER, TRANSMITTER HOUSING
KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
KOREA SPEC
8975BCOVER, TRANSMITTER BATTERY HOUSING
KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
ELECTRICAL KEY(2)+CARD TYPE(1)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
MARK = GNE
KOREA SPEC
KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
MARK = E
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
ELECTRICAL KEY(2)+CARD TYPE(1),MARK = E
sub89904-50641
sub89904-50642
sub89904-50643
8975947010SCREW, DOOR CONTROL TRANSMITTER
main89759-47010
9015140005
main90151-40005
9017906274
main90179-06274
9030118014
main90301-18014

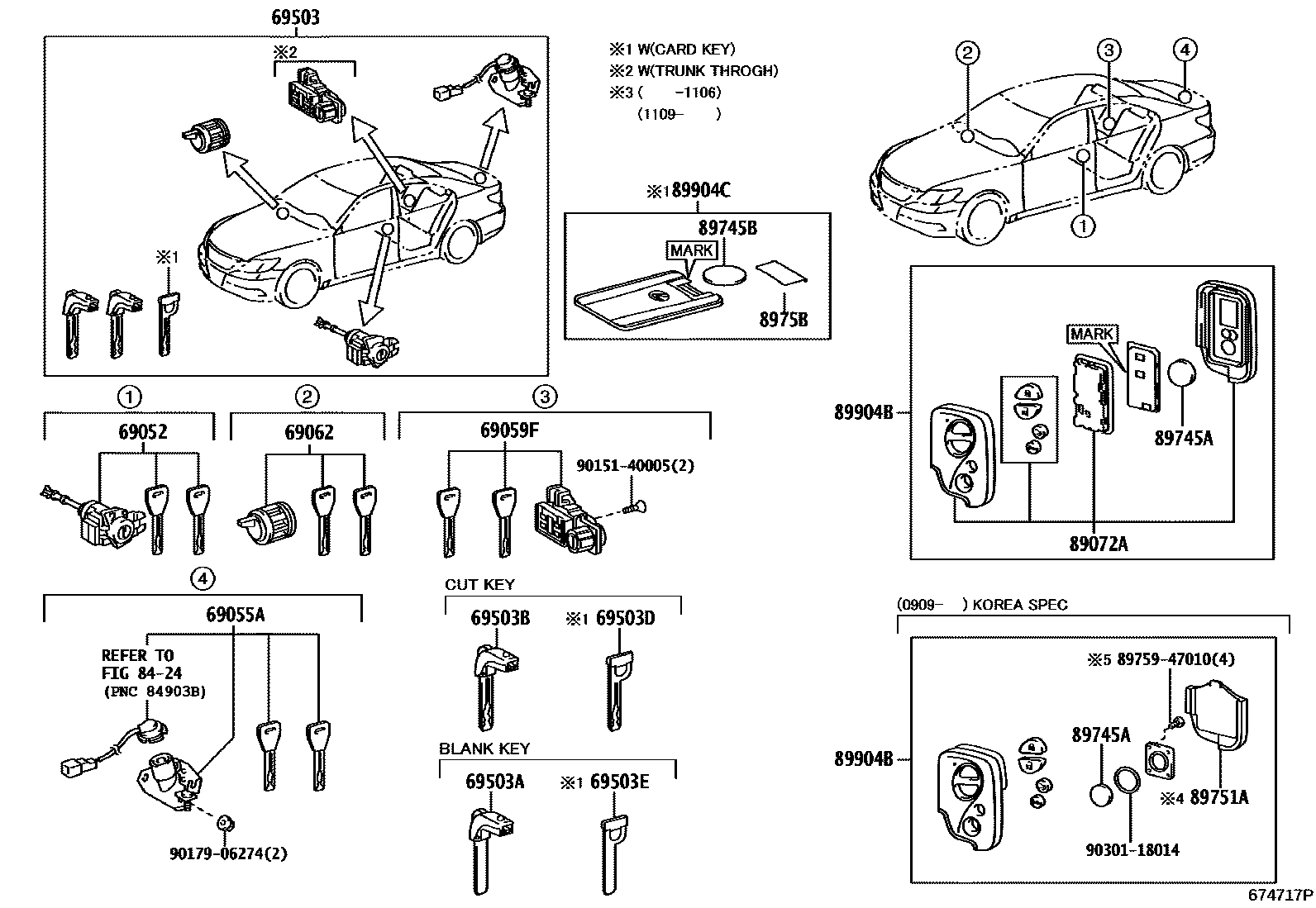

21 parts on this diagram · 1 diagram in section
