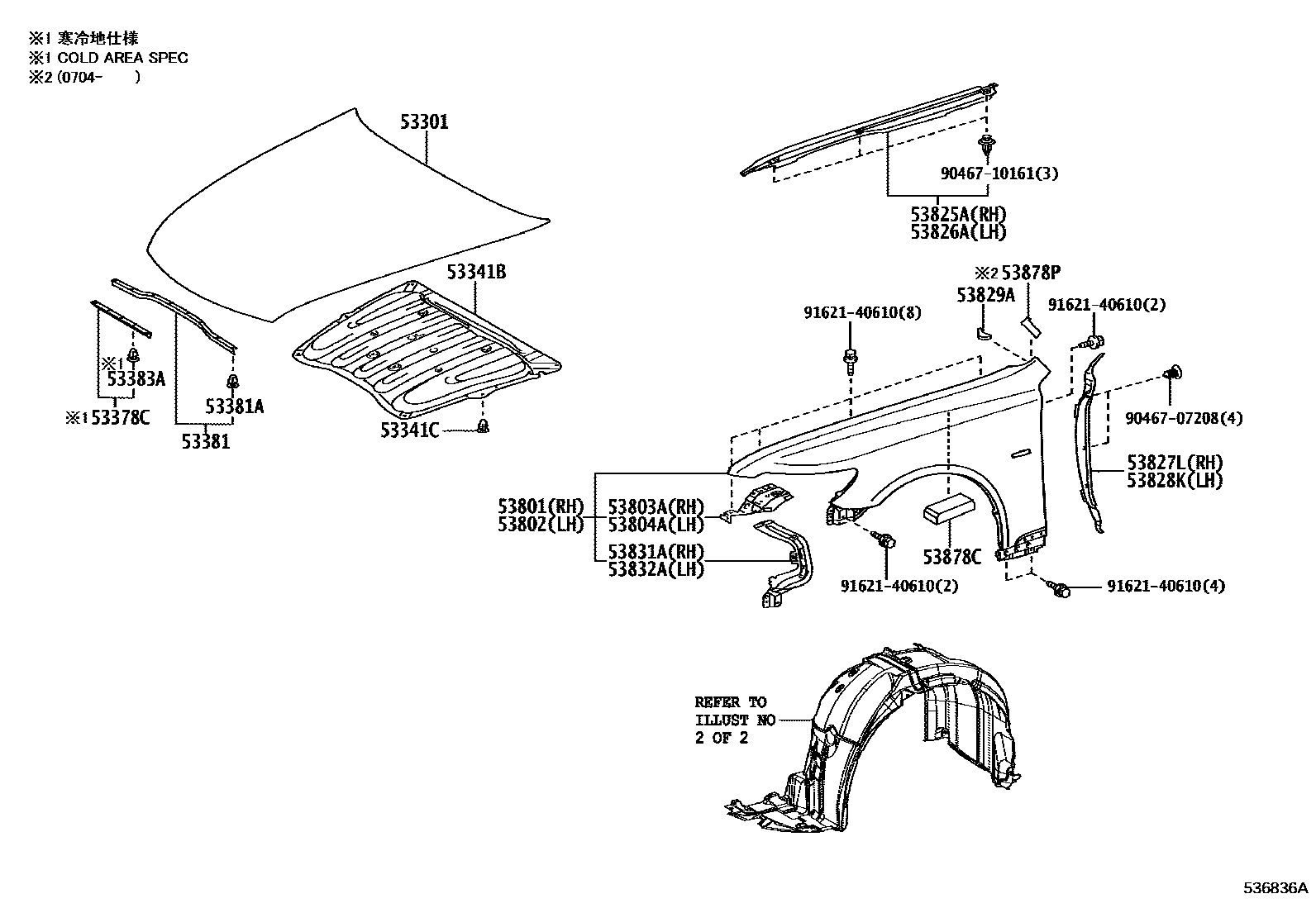

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-50080iUSF4#200608-201209

main53301-50090iUSF4#200809-200912

sub53301-50080

53341BINSULATOR, HOOD

main53341-50060iUSF4#200608-200702

sub53341-50070

main53341-50070iUSF4#200703-200909

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iUSF4#200608-200909

53378CSEAL, HOOD AIR INTAKE DUCT

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-50080iUSF4#200608-200909

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iUSF4#200608-200909

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

53801FENDER SUB-ASSY, FRONT RH

main53801-50170iUSF4#200912-201209

main53801-50190iUSF4#200608-200912

sub53801-50170

53802FENDER SUB-ASSY, FRONT LH

main53802-50170iUSF4#200912-201209

main53802-50190iUSF4#200608-200912

sub53802-50170

53803ABRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main53803-50040iUSF4#200608-200909

53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH

main53804-50040iUSF4#200608-200909

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-50010iUSF4#200608-200909

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-50010iUSF4#200608-200909

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-50070iUSF4#200608-200909

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-50070iUSF4#200608-200909

53829APROTECTOR, FRONT FENDER, LOWER

main53829-50010iUSF4#200608-200909

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-50060iUSF4#200608-200909

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-50060iUSF4#200608-200909

53878CSPACER, FRONT FENDER

main53878-50020iUSF4#200608-201204

main55783-30110iUSF4#201205-201209

53878PSPACER, FRONT FENDER

main53878-50030iUSF4#200704-200909

9046707208

main90467-07208

9046710161

main90467-10161

9162140610

main91621-40610

23 parts on this diagram · 2 diagrams in section
