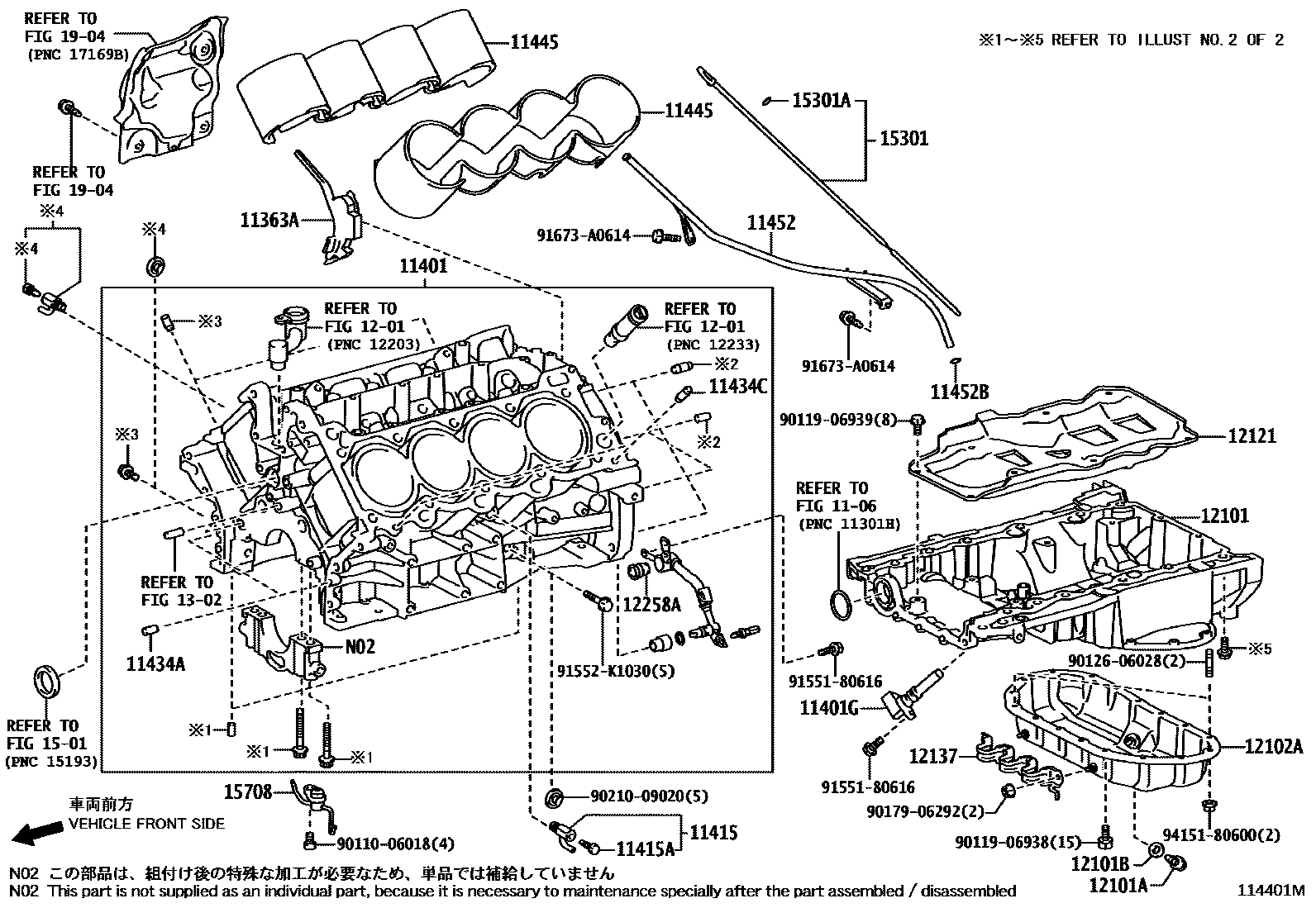

CYLINDER BLOCK

0001 1 0002 1 0003 1

1106

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-38020i1URFSE..USF4#200608-200909

11401BLOCK SUB-ASSY, CYLINDER

main11401-39845i1URFSE..USF40,41200608-201003

sub11401-39A06

sub12109-38040

main11401-39A06i1URFSE..USF40,41201003

sub11401-39A07

main11401-80777i1URFSE..USF45,46200809-201003

sub11401-80786

sub12109-38040

main11401-80786i1URFSE..USF45,46201003

sub11401-80829

11401GSENSOR, CRANK POSITION

main90919-05071i1URFSE..USF4#200608-200909

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09129i1URFSE..USF4#200608-200909

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1URFSE..USF4#200608-200909

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i1URFSE..USF4#200608-200909

L=12,OD=4.0

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1URFSE..USF4#200608-200909

L=18,OD=8

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-38010i1URFSE..USF4#200608-200909

11452GUIDE, OIL LEVEL GAGE

main11452-38040i1URFSE..USF40,41200608-200909

main11452-38050i1URFSE..USF45,46200809-200909

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09028i1URFSE..USF4#200611-200909

main96721-19010i1URFSE..USF4#200608-200610

1201

12101PAN SUB-ASSY, OIL

main12101-38090i1URFSE..USF45,46200809-200909

main12111-38090i1URFSE..USF4#200608-200909

sub12111-38140

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1URFSE..USF4#200608-200909

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1URFSE..USF4#200608-200909

12102APAN SUB-ASSY, OIL, NO.2

main12102-38020i1URFSE..USF40,41200608-200902

sub12102-38021

main12102-38021i1URFSE..USF40,41200902-200909

main12102-38031i1URFSE..USF45,46200809-200909

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-38080i1URFSE..USF4#200608-200909

main12121-38090i1URFSE..USF45,46200809-200909

12137PROTECTOR, OIL PAN

main12137-38020i1URFSE..USF4#200608-200909

12258AGASKET, OIL RETURN PIPE

main12269-38010i1URFSE..USF4#200608-200909

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-38050i1URFSE..USF4#200608-200909

main15301-38070i1URFSE..USF45,46200809-200909

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1URFSE..USF4#200608-200909

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-38020i1URFSE..USF4#200608-200909

sub15708-38030

1904

9011006018

main90110-06018

9011906938

main90119-06938

9011906939

main90119-06939

9012606028

main90126-06028

9017906292

main90179-06292

9021009020

main90210-09020

9155180616

main91551-80616

91552K1030

main91552-K1030

91673A0614

main91673-A0614

9415180600

main94151-80600

35 parts on this diagram · 3 diagrams in section
