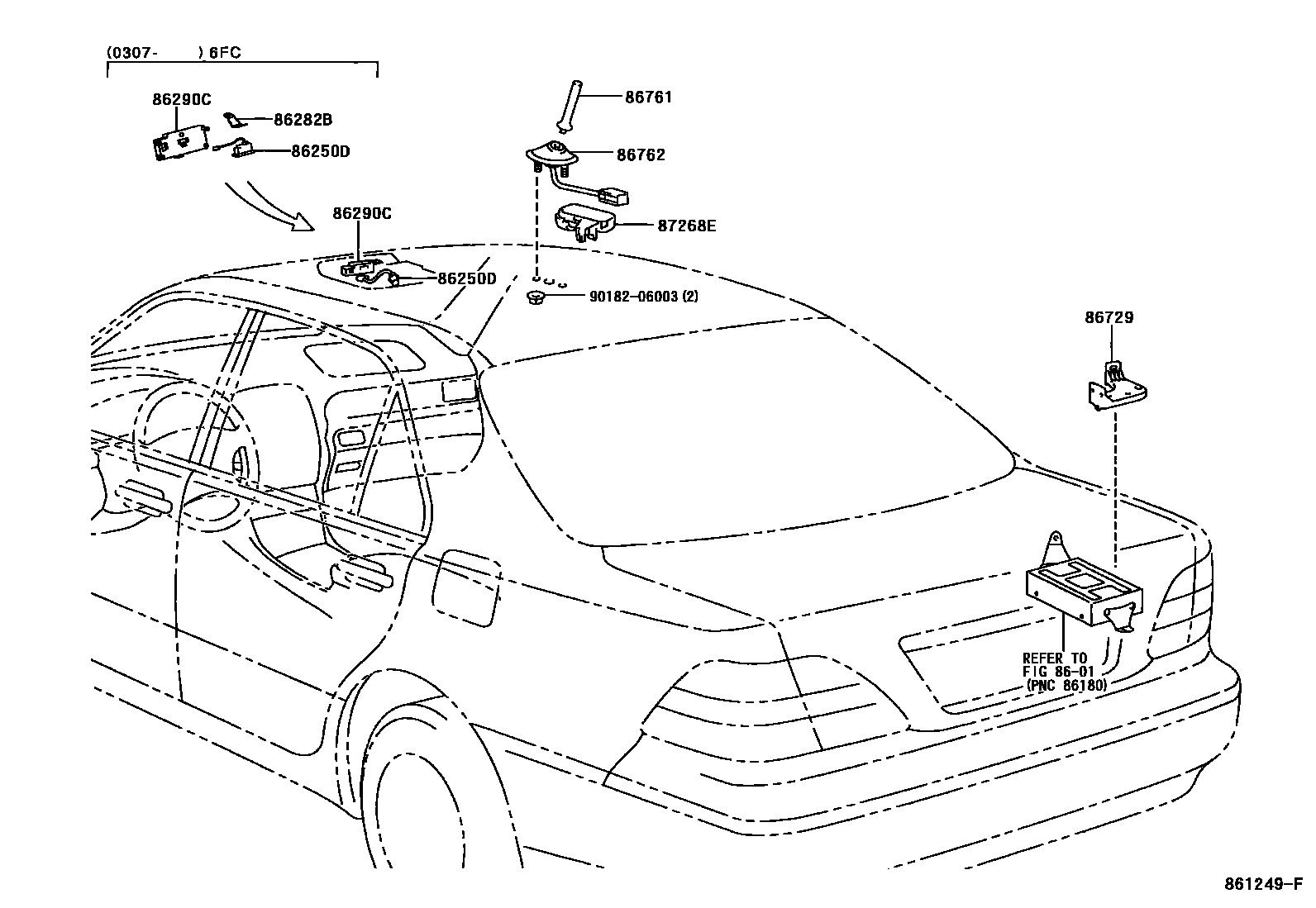

TELEPHONE & MAYDAY

0001 1PORTABLE TELEPHONE 0002 1MAYDAY 0003 1MAYDAY

8601

86250DMICROPHONE ASSY, AMPLIFIER

main86250-50020iUCF30200302-200307

main86250-50030iUCF30..USA200012-200107

MAYDAY

sub86250-50050

main86250-50050iUCF30200107-200302

main86250-50070iUCF30200307-200608

86282BBRACKET, MICROPHONE

main86282-50040iUCF30200107-200608

86290CAMPLIFIER ASSY, MICROPHONE

main86290-50020iUCF30200307-200608

main86290-50030iUCF30200008-200307

86729BRACKET, MOBILEPHONE

main86729-50120iUCF30..USA200008-200307

MAYDAY & TELEPHONE

main86729-50160iUCF30..USA200008-200307

BATTERY

main86729-50220iUCF30..USA200307-200401

MAYDAY

main86729-50260iUCF30200307

86761ROD, TELEPHONE ANTENNA

main86761-50030iUCF30200008-200211

sub86761-50031

main86761-50031iUCF30200211-200307

86762BASE, TELEPHONE ANTENNA

main86762-50030iUCF30200008-200211

sub86762-50031

main86762-50031iUCF30200211-200307

87268EPROTECTOR, TELEPHONE ANTENNA

main87268-50010iUCF30200008-200211

sub87268-50011

main87268-50011iUCF30200211-200307

9018206003

main90182-06003

9 parts on this diagram · 3 diagrams in section
