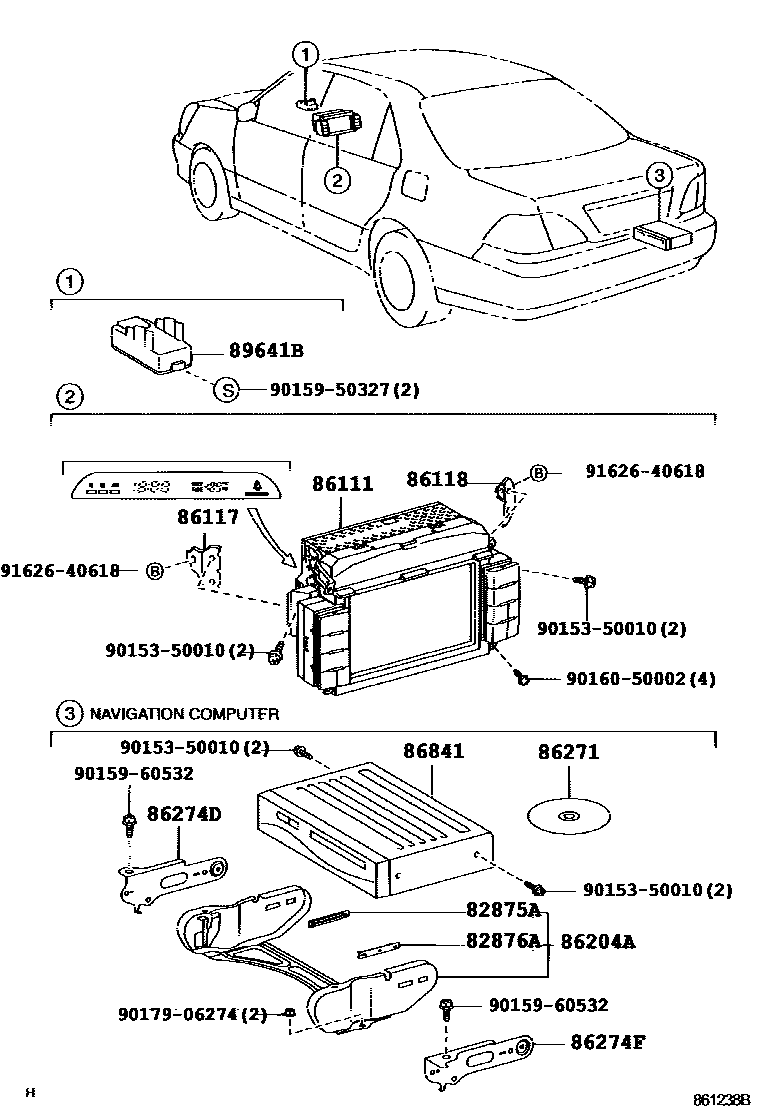

NAVIGATION & FRONT MONITOR DISPLAY
82875AGUIDE, COMPUTER INTEGRATION BRACKET, NO.5
82876AGUIDE, COMPUTER INTEGRATION BRACKET, NO.6
86111MULTI-DISPLAY
FUJITSU TEN
FUJITSU TEN
FUJITSU TEN
FUJITSU TEN
86117BRACKET, MULTI-DISPLAY CONTROLLER, A
86118BRACKET, MULTI-DISPLAY CONTROLER, B
86204ABRACKET SUB-ASSY, DISC PLAYER
86271DISC, DISC PLAYER
sub86271-33031
sub86271-33043
sub86271-33043
sub86271-33044
sub86271-33045
sub86807-12010
86274DBRACKET, DISC PLAYER
86274FBRACKET, DISC PLAYER, NO.2
86841COMPUTER, NAVIGATION
89641BSENSOR, MAGNETIC FIELD
9015350010
main90153-50010
9015950327
main90159-50327
9015960532
main90159-60532
9016050002
main90160-50002
9017906274
main90179-06274
9162640618
main91626-40618
17 parts on this diagram · 1 diagram in section
