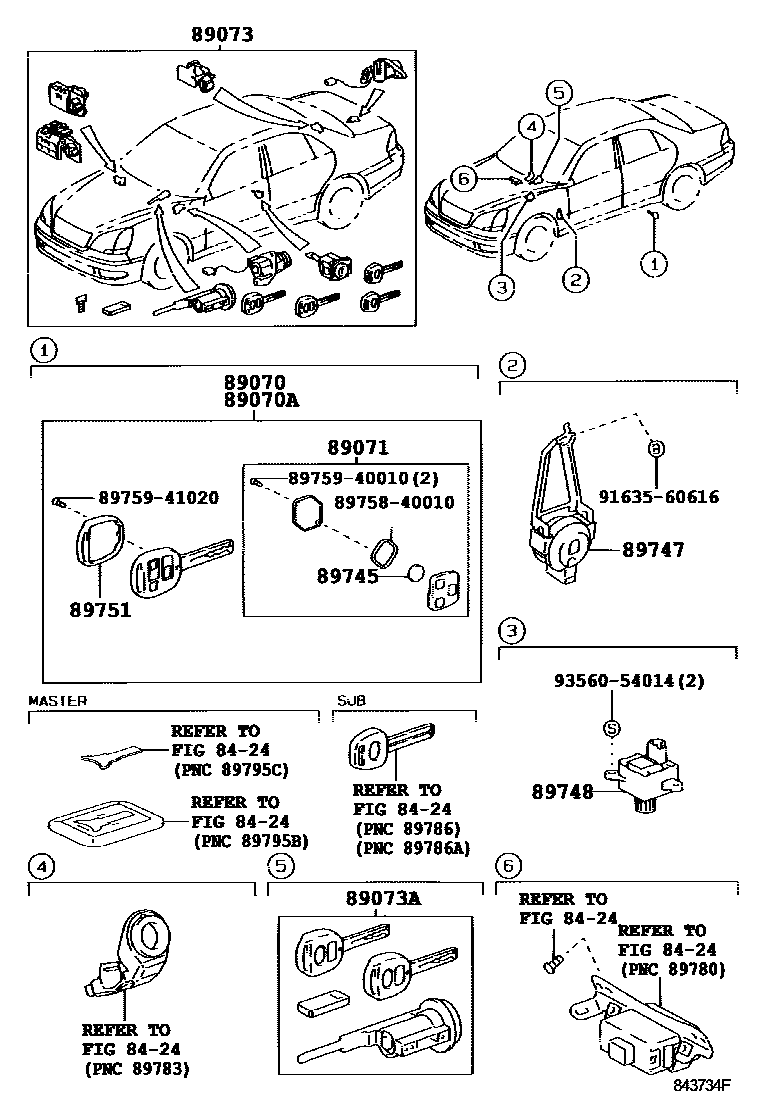

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1SMART KEY SYSTEM 0004 1SMART KEY SYSTEM

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-50660iUCF30200008-200307

main89070-50C10iUCF30200307-200502

sub89070-50C11

main89070-50C11iUCF30200503-200608

main89070-50C90iUCF30..USA200307-200511

KOREA SPEC.

sub89070-50C91

main89070-50C91iUCF30..USA200512-200608

KOREA SPEC.

sub89070-50C92

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-50860iUCF30200008-200307

main89070-50D00iUCF30200307-200502

sub89070-50D01

main89070-50D01iUCF30200503

main89070-50D80iUCF30..USA200307-200511

KOREA SPEC.

sub89070-50D81

main89070-50D81iUCF30..USA200512

KOREA SPEC.

sub89070-50D82

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-50230iUCF30200008-200307

main89071-50370iUCF30..USA200307

KOREA SPEC.

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-50580iUCF30200307-200502

sub69005-50581

main69005-50581iUCF30200503

main69005-50590iUCF30200307-200502

W/O(TRUNK THROUGH)

sub69005-50591

main69005-50591iUCF30200503

W/O(TRUNK THROUGH)

main69005-50810iUCF30..USA200307-200604

KOREA SPEC.

sub69005-50811

main69005-50811iUCF30..USA200605

KOREA SPEC.

main69005-50820iUCF30..USA200307-200604

KOREA SPEC & W/O(TRUNK THROUGH)

sub69005-50821

main69005-50821iUCF30..USA200605

KOREA SPEC & W/O(TRUNK THROUGH)

main89076-50050iUCF30200008-200307

main89076-50060iUCF30200008-200307

W(REAR AIR CONDITIONER) OR W(AIR PURIFIER)

sub89076-50050

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main89076-50010iUCF30200008-200307

89745BATTERY, TRANSMITTER

main89745-40010iUCF30200008-200307

main89745-50020iUCF30..USA200307

KOREA SPEC & W(SMART KEY SYSTEM)

89747BUZZER, WIRELESS DOOR LOCK

main89747-50050iUCF30200008-200307

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-50010iUCF30200008-200307

89751COVER, TRANSMITTER HOUSING

main89751-50020iUCF30200008-200307

sub89751-50210

main89751-50150iUCF30200307-200502

sub89751-50151

main89751-50151iUCF30200503

main89751-50190iUCF30..USA200307-200511

KOREA SPEC.

sub89751-50191

main89751-50191iUCF30..USA200512

KOREA SPEC.

sub89751-50192

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9163560616

main91635-60616

9356054014

main93560-54014

15 parts on this diagram · 4 diagrams in section
