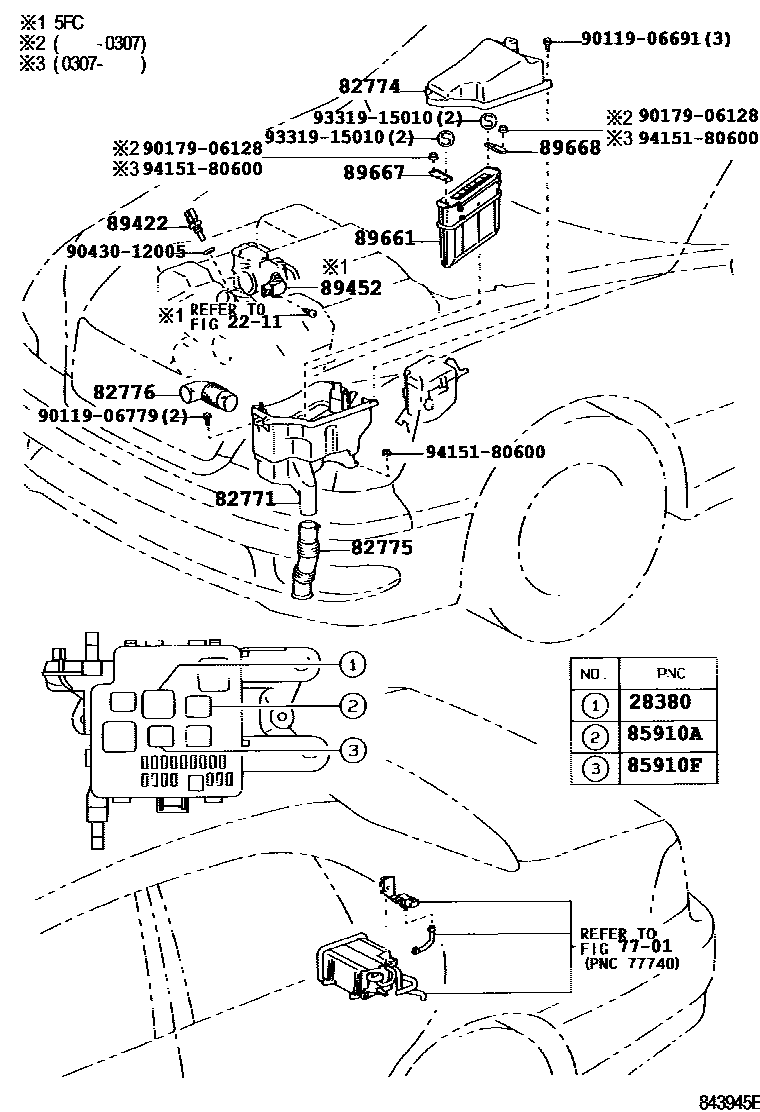

ELECTRONIC FUEL INJECTION SYSTEM
2211
28380RELAY ASSY, FUEL PUMP
7701
82771BOX, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
sub89661-50551
sub89661-50552
CENTRAL AMERICA SPEC
PART NUMBER LABEL=89661-50781
PART NUMBER LABEL=89661-50860
PART NUMBER LABEL=89661-50872
PART NUMBER LABEL=89661-50880
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906691
main90119-06691
9011906779
main90119-06779
9017906128
main90179-06128
9043012005
main90430-12005
9331915010
main93319-15010
9415180600
main94151-80600
20 parts on this diagram · 1 diagram in section
