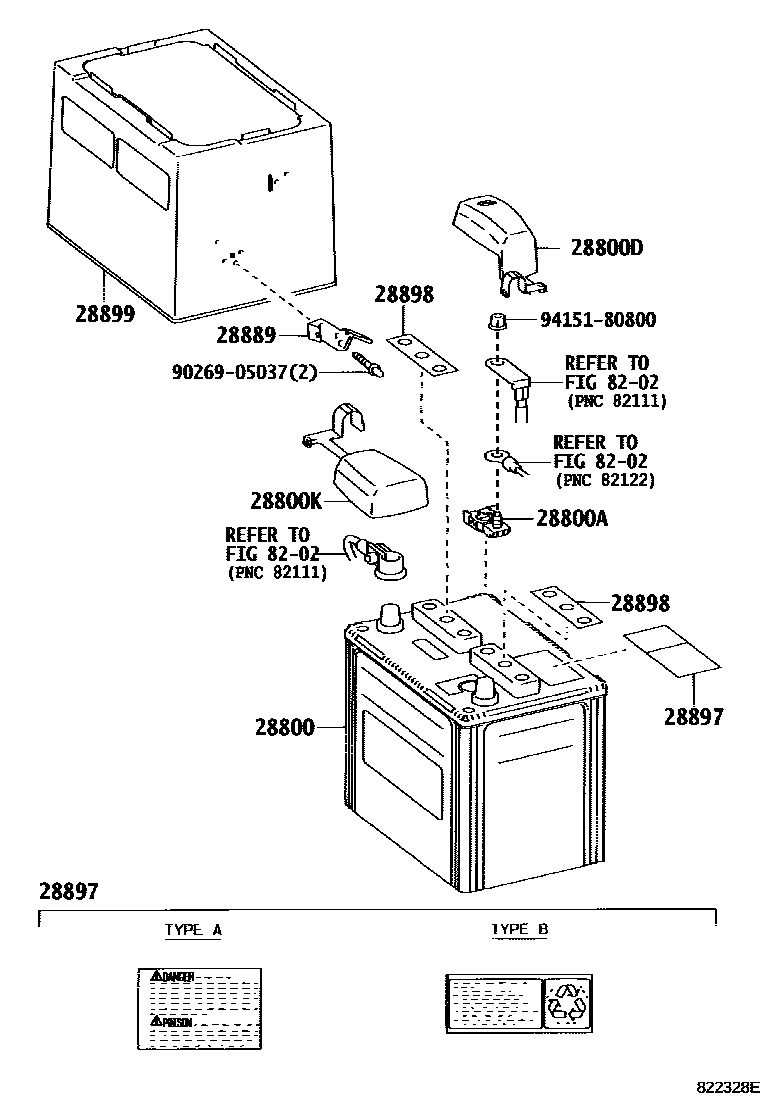

BATTERY & BATTERY CABLE

28800BATTERY

main28800-50080i3UZFE..UCF30200204-200205

80D26L

sub28800-64132

main28800-50110i3UZFE..UCF30200008-200307

LN3

sub28800-38160

main28800-64132i3UZFE..UCF30200205-200307

80D26L

sub28800-54020

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i3UZFE..UCF30200008-200411

main90982-05062i3UZFE..UCF30200412

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50470i3UZFE..UCF30200008-200307

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-50450i3UZFE..UCF30200008-200307

28889BRACKET, BATTERY WIRE CLAMP

main28889-50020i3UZFE..UCF30200008-200307

28897PLATE, BATTERY CAUTION

main28897-31020i3UZFE..UCF30..CND200502-200512

TYPE A:REFER TO ILLUSTRATION

sub28897-31021

main28897-31021i3UZFE..UCF30..CND200512

TYPE A:REFER TO ILLUSTRATION

main28897-46020i3UZFE..UCF30..CND200008-200501

TYPE A:REFER TO ILLUSTRATION

main28898-62010i3UZFE..UCF30..USA200008-200307

TYPE B:REFER TO ILLUSTRATION

sub28898-20020

28898PLATE, BATTERY

main28898-50130i3UZFE..UCF30200008-200307

28899INSULATOR, BATTERY

main28870-46100i3UZFE..UCF30200008-200307

8202

9026905037

main90269-05037

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
