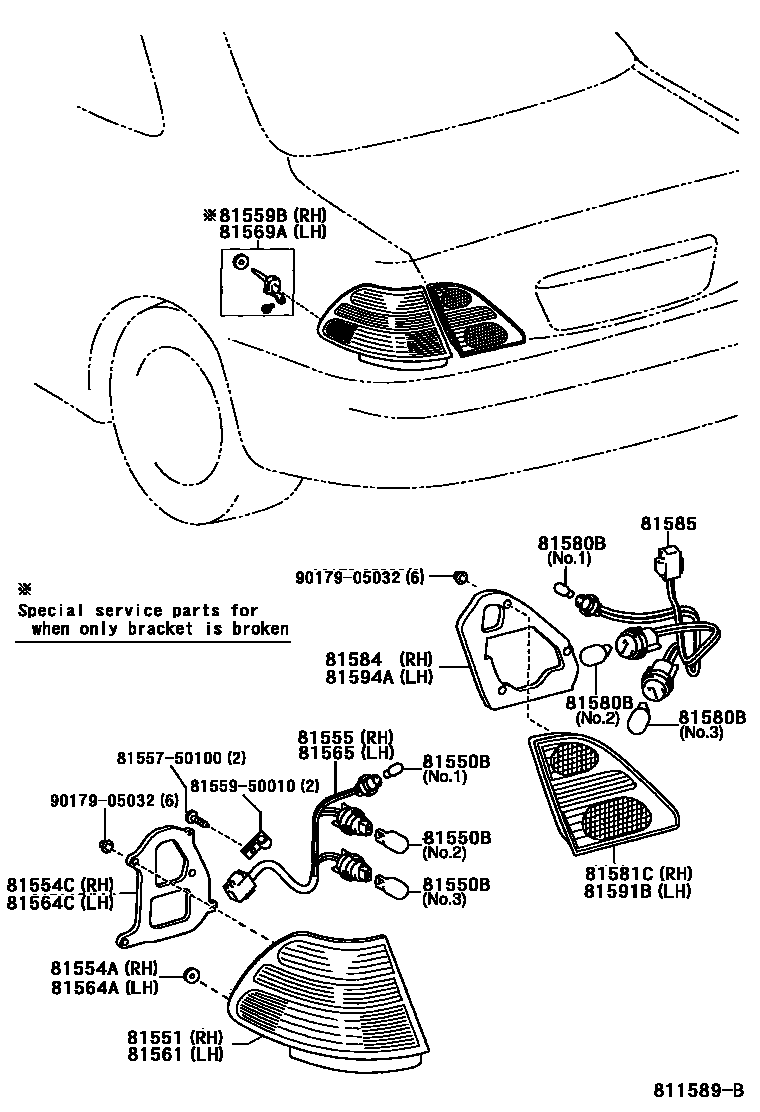

REAR COMBINATION LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W,AMBER
12V 5W,NO.1
81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554CPACKING, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81559BBRACKET, REAR COMBINATION LAMP, RH
81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81564CPACKING, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81569ABRACKET, REAR COMBINATION LAMP, LH
81580BBULB (FOR REAR LAMP)
12V 16W
12V 5W,NO.1
81585SOCKET & WIRE, REAR LAMP
NO.1
NO.2
8155750100REFLECTOR, REAR COMBINATION LAMP REFLEX
main81557-50100
8155950010MOULDING, REAR COMBINATION LAMP, RH
main81559-50010
9017905032
main90179-05032
20 parts on this diagram · 2 diagrams in section
