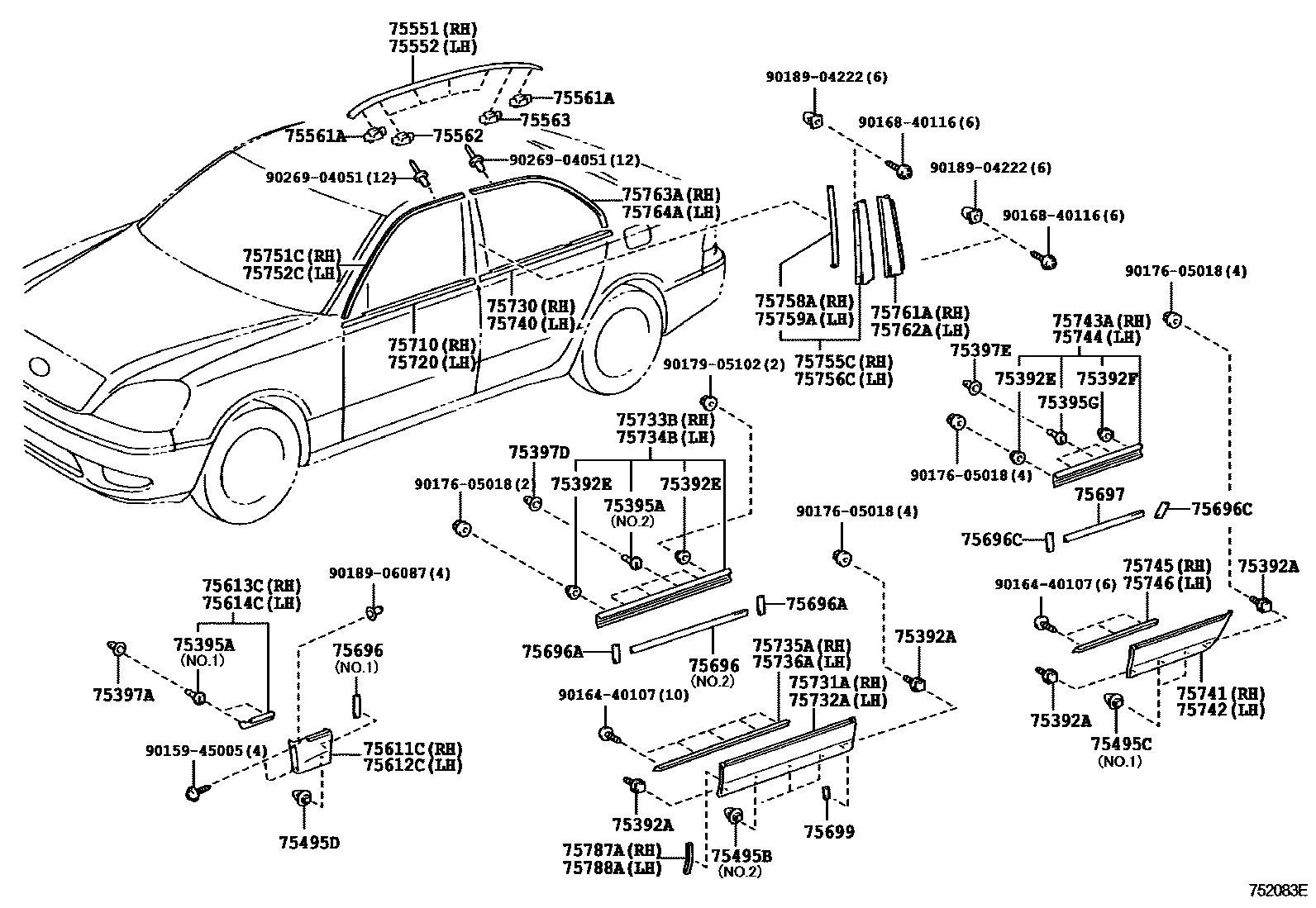

SIDE MOULDING
75392ARETAINER, OUTSIDE MOULDING, NO.1
75392ERETAINER, OUTSIDE MOULDING, NO.1
75392FRETAINER, OUTSIDE MOULDING
75395ACLIP, OUTSIDE MOULDING, NO.1
NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75397ACLIP, OUTSIDE MOULDING, NO.3
75397DCLIP, OUTSIDE MOULDING, NO.3
75397ECLIP, OUTSIDE MOULDING, NO.1
75495BCLIP, OUTSIDE MOULDING, NO.4
NO.1
75495CCLIP, OUTSIDE MOULDING, NO.4
NO.1
75495DCLIP, OUTSIDE MOULDING, NO.4
75551MOULDING, ROOF DRIP SIDE FINISH, RH
DK.GRAY MC.,1E0
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
PREMIUM SILVER,1F2
75552MOULDING, ROOF DRIP SIDE FINISH, LH
DK.GRAY MC.,1E0
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
PREMIUM SILVER,1F2
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1
75611CMOULDING, FRONT FENDER, OUTSIDE RH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BRODEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DK.GREEN M.M.,6S6
OLIVE M.M.,6T7
DK.BLUE MC.,8P8
LT. BLUE M.M.,8P7
75612CMOULDING, FRONT FENDER, OUTSIDE LH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,TRIM03,04,05,1#,20,27,29&062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BRODEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DK.GREEN M.M.,6S6
OLIVE M.M.,6T7
DK.BLUE MC.,8P8
LT. BLUE M.M.,8P7
75613CMOULDING, FRONT FENDER, OUTSIDE NO.2 RH
75614CMOULDING, FRONT FENDER, OUTSIDE NO.2 LH
75696PAD, BODY OUTSIDE MOULDING, NO.1
NO.2
NO.1
75696APAD, BODY OUTSIDE MOULDING
75696CPAD, BODY OUTSIDE MOULDING, NO.1
75697PAD, BODY OUTSIDE MOULDING, NO.2
75699PAD, BODY OUTSIDE MOULDING, NO.4
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BRODEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DK.GREEN M.M.,6S6
OLIVE M.M.,6T7
DK.BLUE MC.,8P8
LT. BLUE M.M.,8P7
75732AMOULDING, FRONT DOOR, OUTSIDE LH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BRODEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DK.GREEN M.M.,6S6
OLIVE M.M.,6T7
DK.BLUE MC.,8P8
LT. BLUE M.M.,8P7
75733BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH
75734BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,TRIM03,04,05,1#,20,29&062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BRODEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DK.GREEN M.M.,6S6
OLIVE M.M.,6T7
DK.BLUE MC.,8P8
LT. BLUE M.M.,8P7
75742MOULDING, REAR DOOR, OUTSIDE LH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BRODEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DK.GREEN M.M.,6S6
OLIVE M.M.,6T7
DK.BLUE MC.,8P8
LT. BLUE M.M.,8P7
75743AMOULDING, REAR DOOR, OUTSIDE UPPER REAR RH
75744MOULDING, REAR DOOR, OUTSIDE UPPER REAR LH
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75758ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, FRONT
75759ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, REAR RH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75787APAD, FRONT DOOR OUTSIDE MOULDING, RH
75788APAD, FRONT DOOR OUTSIDE MOULDING, LH
9015945005
main90159-45005
9016440107
main90164-40107
9016840116
main90168-40116
9017605018
main90176-05018
9017905102
main90179-05102
9018904222
main90189-04222
9018906087
main90189-06087
9026904051
main90269-04051
61 parts on this diagram · 2 diagrams in section
