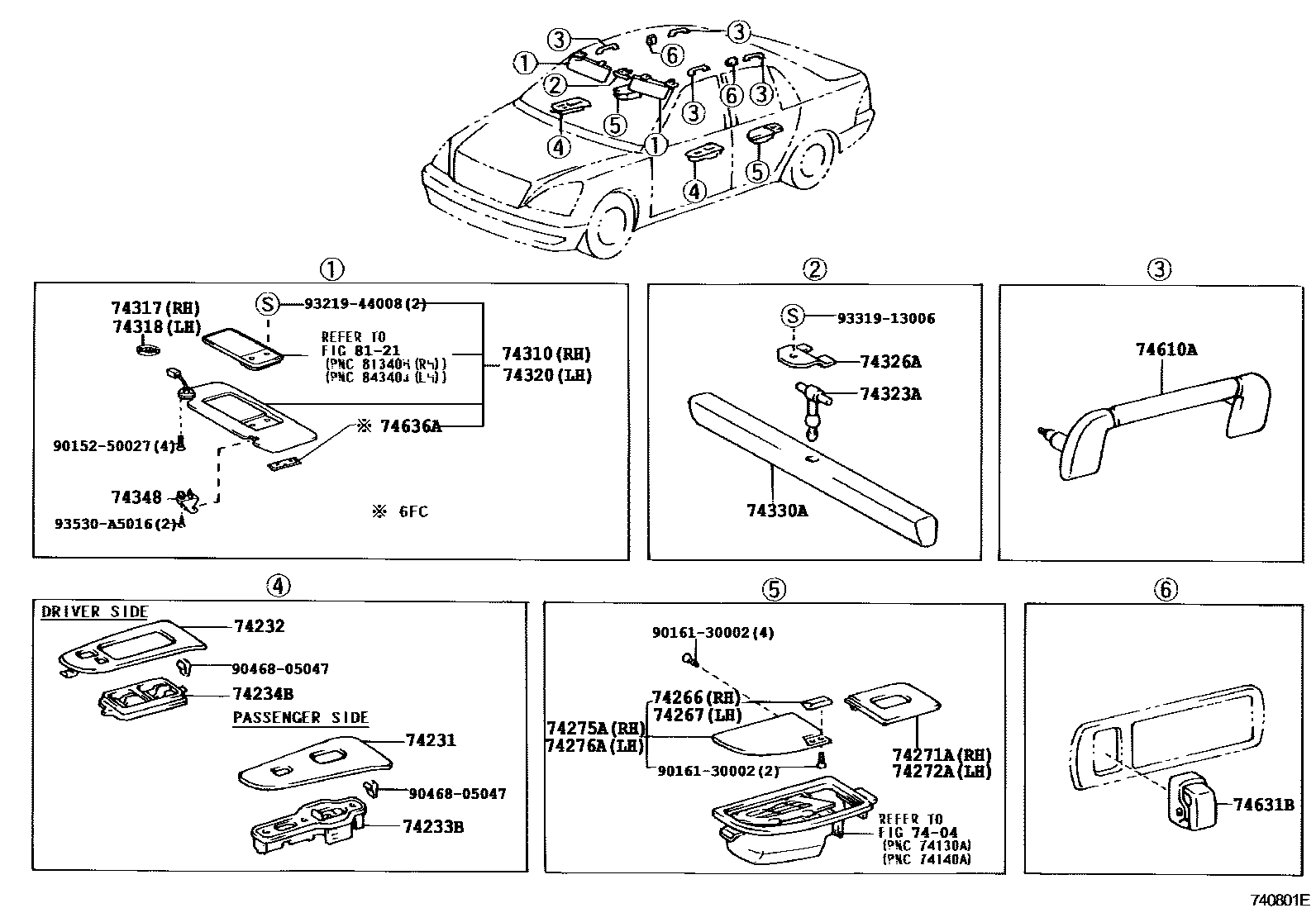

ARMREST & VISOR

7404

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74232-50090-B0iUCF30200008-200307

RIGHTGRAY,TRIM05

main74232-50090-D0iUCF30200008-200307

BORDEAUX,TRIM27,29

main74232-50090-E0iUCF30200307-200608

MD.BROWN,TRIM1#,21,24,25

main74232-50090-E0iUCF30200008-200307

MD.BROWN,TRIM04,1#

main74232-50090-E1iUCF30200008-200307

LIGHTBROWN,TRIM03,20

main74232-50090-E1iUCF30200307-200608

LIGHTBROWN,TRIM00,07,08

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74231-50120-B0iUCF30200008-200307

RIGHTGRAY,TRIM05

main74231-50120-D0iUCF30200008-200307

BORDEAUX,TRIM27,29

main74231-50120-E0iUCF30200008-200307

MD.BROWN,TRIM04,1#

main74231-50120-E0iUCF30200307-200608

MD.BROWN,TRIM1#,21,24,25

main74231-50120-E1iUCF30200008-200307

LIGHTBROWN,TRIM03,20

main74231-50120-E1iUCF30200307-200608

LIGHTBROWN,TRIM00,07,08

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74234-50040iUCF30200008-200608

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74233-50040iUCF30200008-200608

74266CAP, DOOR ARMREST, RH

main74266-50010iUCF30200008-200402

sub74266-50020

main74266-50020iUCF30200403

74267CAP, DOOR ARMREST, LH

main74267-50010iUCF30200008-200402

sub74267-50020

main74267-50020iUCF30200403

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-50070-B0iUCF30200008-200307

RIGHTGRAY,TRIM05

main74271-50070-D0iUCF30200008-200307

BORDEAUX,TRIM27,29

main74271-50070-E0iUCF30200008-200307

MD.BROWN,TRIM04,1#

main74271-50070-E0iUCF30200307-200608

MD.BROWN,TRIM1#,21,24,25

main74271-50070-E1iUCF30200008-200307

LIGHTBROWN,TRIM03,20

main74271-50070-E1iUCF30200307-200608

LIGHTBROWN,TRIM00,07,08

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-50070-B0iUCF30200008-200307

RIGHTGRAY,TRIM05

main74272-50070-D0iUCF30200008-200307

BORDEAUX,TRIM27,29

main74272-50070-E0iUCF30200008-200307

MD.BROWN,TRIM04,1#

main74272-50070-E0iUCF30200307-200608

MD.BROWN,TRIM1#,21,24,25

main74272-50070-E1iUCF30200307-200608

LIGHTBROWN,TRIM00,07,08

main74272-50070-E1iUCF30200008-200307

LIGHTBROWN,TRIM03,20

74275APLATE, REAR DOOR ARMREST BASE FINISH,RH

main74275-50070-B0iUCF30200008-200307

RIGHTGRAY,TRIM05

main74275-50070-D0iUCF30200008-200307

BORDEAUX,TRIM27,29

main74275-50070-E0iUCF30200008-200307

MD.BROWN,TRIM04,1#

main74275-50070-E0iUCF30200307-200402

MD.BROWN,TRIM1#,21,24,25

main74275-50070-E1iUCF30200008-200307

LIGHTBROWN,TRIM03,20

main74275-50070-E1iUCF30200307-200402

LIGHTBROWN,TRIM00,07,08

main74275-50071-E0iUCF30200403-200608

MD.BROWN,TRIM1#,21,24,25

main74275-50071-E1iUCF30200403-200608

LIGHTBROWN,TRIM00,07,08

74276APLATE, REAR DOOR ARMREST BASE FINISH,LH

main74276-50070-B0iUCF30200008-200307

RIGHTGRAY,TRIM05

main74276-50070-D0iUCF30200008-200307

BORDEAUX,TRIM27,29

main74276-50070-E0iUCF30200307-200402

MD.BROWN,TRIM1#,21,24,25

main74276-50070-E0iUCF30200008-200307

MD.BROWN,TRIM04,1#

main74276-50070-E1iUCF30200008-200307

LIGHTBROWN,TRIM03,20

main74276-50070-E1iUCF30200307-200402

LIGHTBROWN,TRIM00,07,08

main74276-50071-E0iUCF30200403-200608

MD.BROWN,TRIM1#,21,24,25

main74276-50071-E1iUCF30200403-200608

LIGHTBROWN,TRIM00,07,08

74310VISOR ASSY, RH

main74310-50180-A0iUCF30200008-200307

IVORY,TRIM04

main74310-50180-A1iUCF30200008-200307

ECRU,TRIM03

main74310-50180-A1iUCF30200307-200608

ECRU,TRIM00

main74310-50180-A2iUCF30200307-200608

NEW IVORY,TRIM07

main74310-50180-B0iUCF30200008-200307

MEDIUM CHARCOAL,TRIM11,20

main74310-50180-B1iUCF30200307-200608

NEW GRAY,TRIM1#,21,24

main74310-50190-A0iUCF30200307-200608

ECSAINE TYPE,ECRU,TRIM0#

main74310-50190-A0iUCF30200008-200307

ECSAINE TYPE,ECRU,TRIM05

main74310-50190-B0iUCF30200008-200307

ECSAINE TYPE,CHARCOAL,TRIM27,29

main74310-50190-B1iUCF30200307-200608

ECSAINE TYPE,NEW GRAY,TRIM21,25

74317COVER, VISOR BRACKET, RH

main74317-50010-A0iUCF30200008-200307

IVORY,TRIM04

sub74317-50010

main74317-50010-A1iUCF30200008-200307

ECRU,TRIM03,05

sub74317-50010

main74317-50010-A1iUCF30200307-200608

ECRU,TRIM00,08

sub74317-50010

main74317-50010-A2iUCF30200307-200608

NEW IVORY,TRIM07

sub74317-50010

main74317-50010-B0iUCF30200008-200307

MD.CHARCOAL,TRIM1#,20,27,29

sub74317-50010

main74317-50010-B2iUCF30200307-200608

NEW GRAY,TRIM1#,21,24,25

sub74317-50010

74318COVER, VISOR BRACKET, LH

main74317-50010-A0iUCF30200008-200307

IVORY,TRIM04

sub74317-50010

main74317-50010-A1iUCF30200008-200307

ECRU,TRIM03,05

sub74317-50010

main74317-50010-A1iUCF30200307-200608

ECRU,TRIM00,08

sub74317-50010

main74317-50010-A2iUCF30200307-200608

NEW IVORY,TRIM07

sub74317-50010

main74317-50010-B0iUCF30200008-200307

MD.CHARCOAL,TRIM1#,20,27,29

sub74317-50010

main74317-50010-B2iUCF30200307-200608

NEW GRAY,TRIM1#,21,24,25

sub74317-50010

74320VISOR ASSY, LH

main74320-50170-A0iUCF30200008-200307

IVORY,TRIM04

main74320-50170-A1iUCF30200008-200307

ECRU,TRIM03

main74320-50170-A1iUCF30200307-200608

ECRU,TRIM00

main74320-50170-A2iUCF30200307-200608

NEW IVORY,TRIM07

main74320-50170-B0iUCF30200008-200307

MEDIUM CHARCOAL,TRIM1#,2#

main74320-50170-B1iUCF30200307-200608

NEW GRAY,TRIM1#,21,24

main74320-50180-A0iUCF30200008-200608

ECSAINE TYPE,ECRU,TRIM0#

main74320-50180-B0iUCF30200008-200307

ECSAINE TYPE,CHARCOAL,TRIM27,29

main74320-50180-B1iUCF30200307-200608

ECSAINE TYPE,NEW GRAY,TRIM21,25

74323ASTAY, FRONT VISOR, RH

main74323-50030-A0iUCF30200008-200307

IVORY,TRIM04

sub74323-50030

main74323-50030-A1iUCF30200008-200307

ECRU,TRIM03,05

sub74323-50030

main74323-50030-A1iUCF30200307-200608

ECRU,TRIM00,08

sub74323-50030

main74323-50030-A2iUCF30200307-200608

NEW IVORY,TRIM07

sub74323-50030

main74323-50030-B0iUCF30200008-200307

MD.CHARCOAL,TRIM1#,20,27,29

sub74323-50030

main74323-50030-B1iUCF30200307-200608

NEW GRAY,TRIM1#,21,24,25

sub74323-50030

74326ASUPPORT, FRONT VISOR, NO.2

main74326-50040iUCF30200008-200608

74330AVISOR ASSY, CENTER

main74330-50050-A0iUCF30200008-200307

IVORY,TRIM04

main74330-50050-A1iUCF30200307-200608

ECRU,TRIM00

main74330-50050-A1iUCF30200008-200307

ECRU,TRIM03

main74330-50050-A2iUCF30200307-200608

NEW IVORY,TRIM07

main74330-50050-B0iUCF30200008-200307

MEDIUM CHARCOAL,TRIM1#,2#

main74330-50050-B1iUCF30200307-200608

NEW GRAY,TRIM1#,21,24

main74330-50060-A0iUCF30200008-200608

ECRU,TRIM0#

main74330-50060-B0iUCF30200008-200307

CHARCOAL,TRIM27,29

main74330-50060-B1iUCF30200307-200608

NEW GRAY,TRIM21,25

74348HOLDER, VISOR

main74348-50020-A1iUCF30200008-200307

IVORY,TRIM04

sub74348-50020

main74348-50020-A2iUCF30200008-200307

ECRU,TRIM03,05

sub74348-50020

main74348-50020-A2iUCF30200307-200608

ECRU,TRIM00,08

sub74348-50020

main74348-50020-A3iUCF30200307-200608

NEW IVORY,TRIM07

sub74348-50020

main74348-50020-B2iUCF30200008-200307

MD.CHARCOAL,TRIM1#,20,27,29

sub74348-50020

main74348-50020-B5iUCF30200307-200608

NEW GRAY,TRIM1#,21,24,25

sub74348-50020

74610AGRIP SUB-ASSY, ASSIST

main74610-50040-A2iUCF30200008-200307

IVORY,TRIM04

sub74610-50040

main74610-50040-A3iUCF30200008-200307

ECRU,TRIM03,05

sub74610-50040

main74610-50040-A3iUCF30200307-200608

ECRU,TRIM00,08

sub74610-50040

main74610-50040-A4iUCF30200307-200608

NEW IVORY,TRIM07

sub74610-50040

main74610-50040-B1iUCF30200008-200307

LT. CHARCOAL,TRIM1#,20,27,29

sub74610-50040

main74610-50040-B2iUCF30200307-200608

NEW GRAY,TRIM1#,21,24,25

sub74610-50040

74631BHOOK, COAT

main74605-50030-A0iUCF30200008-200307

IVORY,TRIM04

sub74605-50030

main74605-50030-A1iUCF30200008-200307

ECRU,TRIM03,05

sub74605-50030

main74605-50030-A1iUCF30200307-200608

ECRU,TRIM00,08

sub74605-50030

main74605-50030-A2iUCF30200307-200608

NEW IVORY,TRIM07

sub74605-50030

main74605-50030-B0iUCF30200008-200307

MD.CHARCOAL,TRIM1#,20,27,29

sub74605-50030

main74605-50030-B1iUCF30200307-200608

NEW GRAY,TRIM1#,21,24,25

sub74605-50030

74636ABEZEL, CARD HOLDER

main74636-30010-A1iUCF30200307-200608

ECRU,TRIM00,08

main74636-30010-A2iUCF30200307-200608

IVORY,TRIM07

main74636-30010-B8iUCF30200307-200608

GRAY,TRIM1#,21,24,25

8121

9015250027

main90152-50027

9016130002

main90161-30002

9046805047

main90468-05047

9321944008

main93219-44008

9331913006

main93319-13006

93530A5016

main93530-A5016

29 parts on this diagram · 1 diagram in section
