E
EPC Data

REAR DOOR PANEL & GLASS

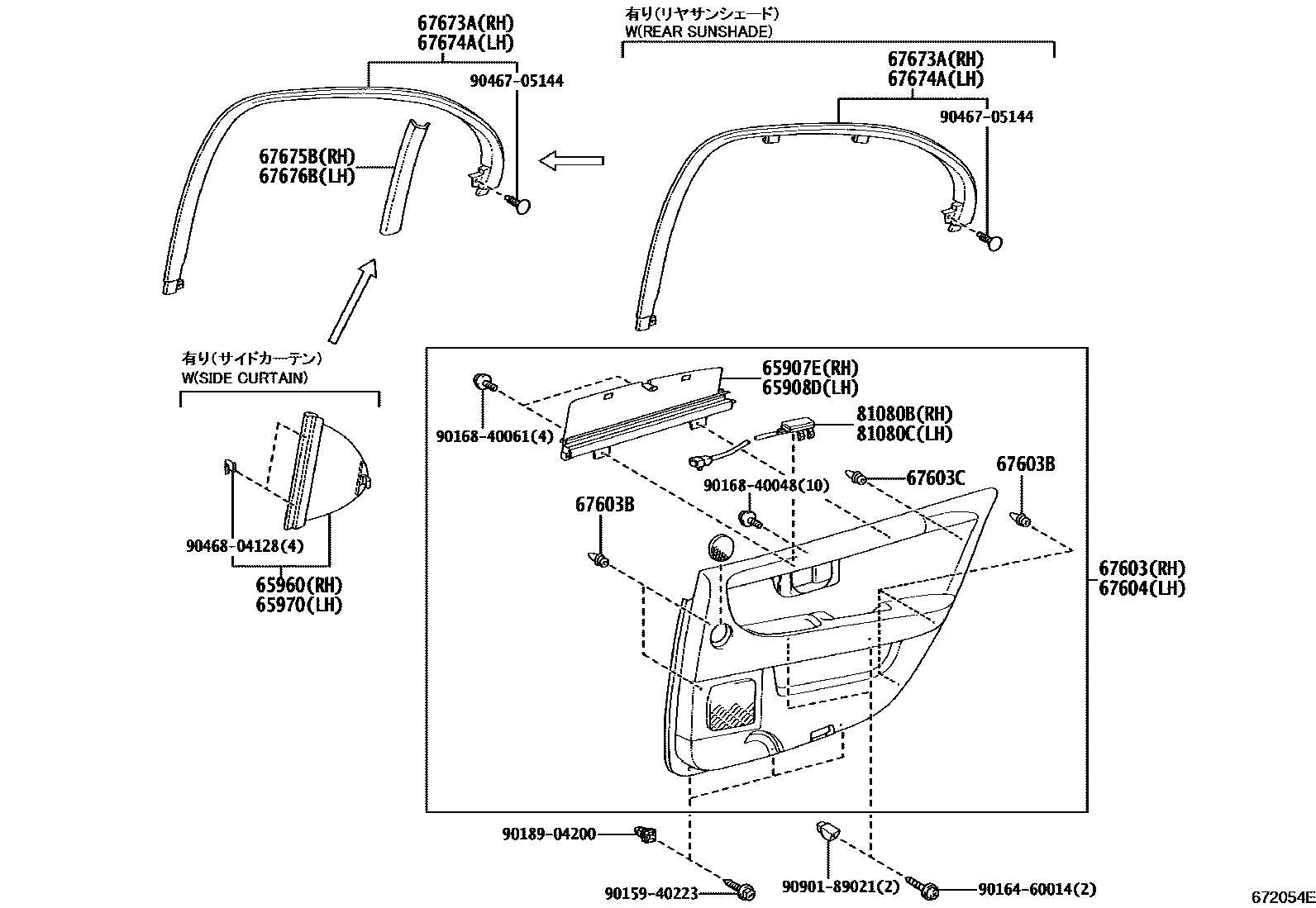

Parts diagram
65907ECURTAIN SUB-ASSY, REAR RH
main65907-50010i200008-200307
65908DCURTAIN SUB-ASSY, REAR LH
main65908-50010i200008-200307
65960CURTAIN ASSY, SIDE, REAR RH
main65960-50060-B0i200008-200307
W(SIDE CURTAIN),DK.CHARCOAL,TRIM1#
sub65960-50060
main65960-50060-B1i200307-200608
W(SIDE CURTAIN),MD.GRAY,TRIM1#
sub65960-50060
main65960-50060-C0i200008-200307
W(SIDE CURTAIN),BLACK,TRIM20,27,29
sub65960-50060
main65960-50060-C0i200307-200608
W(SIDE CURTAIN),BLACK,TRIM21,24,25
sub65960-50060
main65960-50060-E0i200307-200608
W(SIDE CURTAIN),SANDAL WOOD,TRIM07
sub65960-50060
main65960-50060-E0i200008-200307
W(SIDE CURTAIN),SANDAL WOOD,TRIM04
sub65960-50060
main65960-50060-E1i200008-200307
W(SIDE CURTAIN),CLOVEBROWN,TRIM03,05
sub65960-50060
main65960-50060-E1i200307-200608
W(SIDE CURTAIN),CLOVEBROWN,TRIM00,08
sub65960-50060
65970CURTAIN ASSY, SIDE, REAR LH
main65970-50060-B0i200008-200307
W(SIDE CURTAIN),DK.CHARCOAL,TRIM1#
sub65970-50060
main65970-50060-B1i200307-200608
W(SIDE CURTAIN),MD.GRAY,TRIM1#
sub65970-50060
main65970-50060-C0i200307-200608
W(SIDE CURTAIN),BLACK,TRIM21,24,25
sub65970-50060
main65970-50060-C0i200008-200307
W(SIDE CURTAIN),BLACK,TRIM20,27,29
sub65970-50060
main65970-50060-E0i200008-200307
W(SIDE CURTAIN),SANDAL WOOD,TRIM04
sub65970-50060
main65970-50060-E0i200307-200608
W(SIDE CURTAIN),SANDAL WOOD,TRIM07
sub65970-50060
main65970-50060-E1i200307-200608
W(SIDE CURTAIN),CLOVEBROWN,TRIM00,08
sub65970-50060
main65970-50060-E1i200008-200307
W(SIDE CURTAIN),CLOVEBROWN,TRIM03,05
sub65970-50060
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-50440-A4i200307-200608
TRIM = TYPE A-*104,ECRU,TRIM00
main67630-50440-A5i200307-200608
TRIM = TYPE A-*104,IVORY,TRIM07
main67630-50440-B2i200307-200608
TRIM = TYPE A-*104,GRAY,TRIM1#
main67630-50440-C2i200307-200608
TRIM = TYPE A-*104,BLACK,TRIM2#
main67630-50490-A4i200307-200608
W(*TSP) & TRIM = TYPE A-*104,ECRU,TRIM00
sub67630-50480
main67630-50490-A5i200307-200608
W(*TSP) & TRIM = TYPE A-*104,IVORY,TRIM07
sub67630-50480
main67630-50490-B2i200307-200608
W(*TSP) & TRIM = TYPE A-*104,GRAY,TRIM1#
sub67630-50480
main67630-50490-C2i200307-200608
W(*TSP) & TRIM = TYPE A-*104,BLACK,TRIM2#
sub67630-50480
main67630-50520-C4i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE A-*104,BLACK,TRIM2#
main67630-50530-A2i200008-200307
TRIM = TYPE B-*104,ECRU,TRIM03
main67630-50530-A3i200008-200307
TRIM = TYPE B-*104,IVORY,TRIM04
main67630-50530-B1i200008-200307
TRIM = TYPE B-*104,MD.CHARCOAL,TRIM1#
main67630-50530-C1i200008-200307
TRIM = TYPE B-*104,BLACK,TRIM2#
main67630-50540-A2i200008-200307
W(SUN SHADE) & TRIM = TYPE B-*104,ECRU,TRIM03
sub67630-50640
main67630-50540-A3i200008-200307
W(SUN SHADE) & TRIM = TYPE B-*104,IVORY,TRIM04
sub67630-50640
main67630-50540-C1i200008-200307
W(SUN SHADE) & TRIM = TYPE B-*104,BLACK,TRIM2#
sub67630-50640
main67630-50550-A2i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE B-*104,ECRU,TRIM03
main67630-50550-A3i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE B-*104,IVORY,TRIM04
main67630-50550-B1i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE B-*104,MD.CHARCOAL,TRIM1#
main67630-50550-C1i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE B-*104,BLACK,TRIM2#
main67630-50560-C4i200008-200307
TRIM = TYPE A-*104,BLACK/BORDEAUX,TRIM27
main67630-50560-C5i200008-200307
TRIM = TYPE A-*104,BLACK/BLACK,TRIM29
main67630-50570-C4i200008-200307
W(SUN SHADE) & TRIM = TYPE A-*104,BLACK/BORDEAUX,TRIM27
main67630-50570-C5i200008-200307
W(SUN SHADE) & TRIM = TYPE A-*104,BLACK/BLACK,TRIM29
main67630-50590-A1i200008-200307
TRIM = TYPE B-*104,ECRU,TRIM0#
main67630-50600-A1i200008-200307
W(SUN SHADE) & TRIM = TYPE B-*104,ECRU,TRIM0#
main67630-50720-A0i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,ECRU,TRIM00
main67630-50720-A1i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,IVORY,TRIM07
main67630-50720-B0i200408-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,GRAY,TRIM1#
main67630-50720-C0i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,BLACK,TRIM2#
main67630-50730-C1i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE B-*104,BLACK,BLACK,TRIM2#
main67630-50740-A0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,ECRU,TRIM00
main67630-50740-A1i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,IVORY,TRIM07
main67630-50740-B0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,GRAY,TRIM1#
main67630-50740-C0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,BLACK,TRIM2#
main67630-50800-A0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,ECRU,ECRU,TRIM0#
main67630-50800-C0i200307-200502
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,BLACK,SADDLE TAN,TRIM25
main67630-50810-C0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE B-*104,BLACK,BLACK,TRIM2#
main67630-50820-A0i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,ECRU,ECRU,TRIM0#
main67630-50820-C0i200307-200502
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,BLACK,SADDLE TAN,TRIM25
main67630-50830-C0i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE B-*104 & WOOD GRAIN(SUNBURST),BLACK,BLACK,TRIM2#
main67630-50840-C1i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104 & WOOD GRAIN(SUNBURST),BLACK,SADDLE TAN,TRIM2#
main67630-50850-C1i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104 & WOOD GRAIN(SUNBURST),BLACK,SADDLETAN,TRIM2#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
main90467-09203i200106-200608
main90467-10161i200008-200106
67603CCAP(FOR REAR DOOR TRIM BOARD)
main90467-10167i200008-200307
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-50440-A4i200307-200608
TRIM = TYPE A-*104,ECRU,TRIM00
main67640-50440-A5i200307-200608
TRIM = TYPE A-*104,IVORY,TRIM07
main67640-50440-B2i200307-200608
TRIM = TYPE A-*104,GRAY,TRIM1#
main67640-50440-C2i200307-200608
TRIM = TYPE A-*104,BLACK,TRIM2#
main67640-50490-A4i200307-200608
W(*TSP) & TRIM = TYPE A-*104,ECRU,TRIM00
sub67640-50480
main67640-50490-A5i200307-200608
W(*TSP) & TRIM = TYPE A-*104,IVORY,TRIM07
sub67640-50480
main67640-50490-B2i200307-200608
W(*TSP) & TRIM = TYPE A-*104,GRAY,TRIM1#
sub67640-50480
main67640-50490-C2i200307-200608
W(*TSP) & TRIM = TYPE A-*104,BLACK,TRIM2#
sub67640-50480
main67640-50520-C4i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE A-*104,BLACK,TRIM2#
main67640-50530-A2i200008-200307
TRIM = TYPE B-*104,ECRU,TRIM03
main67640-50530-A3i200008-200307
TRIM = TYPE B-*104,IVORY,TRIM04
main67640-50530-B1i200008-200307
TRIM = TYPE B-*104,MD.CHARCOAL,TRIM1#
main67640-50530-C1i200008-200307
TRIM = TYPE B-*104,BLACK,TRIM2#
main67640-50540-A2i200008-200307
W(SUN SHADE) & TRIM = TYPE B-*104,ECRU,TRIM03
sub67640-50640
main67640-50540-A3i200008-200307
W(SUN SHADE) & TRIM = TYPE B-*104,IVORY,TRIM04
sub67640-50640
main67640-50540-C1i200008-200307
W(SUN SHADE) & TRIM = TYPE B-*104,BLACK,TRIM2#
sub67640-50640
main67640-50550-A2i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE B-*104,ECRU,TRIM03
main67640-50550-A3i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE B-*104,IVORY,TRIM04
main67640-50550-B1i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE B-*104,MD.CHARCOAL,TRIM1#
main67640-50550-C1i200008-200307
W(SUN SHADE & TWEETER SPEAKER) & TRIM = TYPE B-*104,BLACK,TRIM2#
main67640-50560-C4i200008-200307
TRIM = TYPE A-*104,BLACK/BORDEAUX,TRIM27
main67640-50560-C5i200008-200307
TRIM = TYPE A-*104,BLACK/BLACK,TRIM29
main67640-50570-C4i200008-200307
W(SUN SHADE) & TRIM = TYPE A-*104,BLACK/BORDEAUX,TRIM27
main67640-50570-C5i200008-200307
W(SUN SHADE) & TRIM = TYPE A-*104,BLACK/BLACK,TRIM29
main67640-50590-A1i200008-200307
TRIM = TYPE B-*104,ECRU,TRIM0#
main67640-50600-A1i200008-200307
W(SUN SHADE) & TRIM = TYPE B-*104,ECRU,TRIM0#
main67640-50720-A0i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,ECRU,TRIM00
main67640-50720-A1i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,IVORY,TRIM07
main67640-50720-B0i200408-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,GRAY,TRIM1#
main67640-50720-C0i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,BLACK,TRIM2#
main67640-50730-C1i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE B-*104,BLACK,BLACK,TRIM2#
main67640-50740-A0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,ECRU,TRIM00
main67640-50740-A1i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,IVORY,TRIM07
main67640-50740-B0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,GRAY,TRIM1#
main67640-50740-C0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,BLACK,TRIM2#
main67640-50800-A0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,ECRU,ECRU,TRIM0#
main67640-50810-C0i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE B-*104,BLACK,BLACK,TRIM2#
main67640-50820-A0i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104,ECRU,ECRU,TRIM0#
main67640-50830-C0i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE B-*104 & WOOD GRAIN(SUNBURST),BLACK,BLACK,TRIM2#
main67640-50840-C1i200307-200608
W(*SHD & MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104 & WOOD GRAIN(SUNBURST),BLACK,SADDLE TAN,TRIM2#
main67640-50850-C1i200307-200608
W(MARK LEVINSON SPEAKER) & TRIM = TYPE A-*104 & WOOD GRAIN(SUNBURST),BLACK,SADDLETAN,TRIM2#
67673AGARNISH, REAR DOOR FRAME, RH
main67673-50050-B0i200008-200307
DK.CHARCOAL,TRIM1#
sub67673-50050
main67673-50050-B1i200307-200608
MD.GRAY,TRIM1#
sub67673-50050
main67673-50050-C0i200307-200608
BLACK,TRIM21,24,25
sub67673-50050
main67673-50050-C0i200008-200307
BLACK,TRIM20,27,29
sub67673-50050
main67673-50050-E0i200307-200608
SANDAL WOOD,TRIM07
sub67673-50050
main67673-50050-E0i200008-200307
SANDAL WOOD,TRIM04
sub67673-50050
main67673-50050-E1i200307-200608
CLOVEBROWN,TRIM00,08
sub67673-50050
main67673-50050-E1i200008-200307
CLOVEBROWN,TRIM03,05
sub67673-50050
main67673-50060-B0i200008-200307
W(REAR DOOR SUN SHADE),DK.CHARCOAL,TRIM1#
sub67673-50060
main67673-50060-B1i200307-200608
W(REAR DOOR SUN SHADE),MD.GRAY,TRIM1#
sub67673-50060
main67673-50060-C0i200307-200608
W(REAR DOOR SUN SHADE),BLACK,TRIM21,24,25
sub67673-50060
main67673-50060-C0i200008-200307
W(REAR DOOR SUN SHADE),BLACK,TRIM20,27,29
sub67673-50060
main67673-50060-E0i200008-200307
W(REAR DOOR SUN SHADE),SANDAL WOOD,TRIM04
sub67673-50060
main67673-50060-E0i200307-200608
W(REAR DOOR SUN SHADE),SANDAL WOOD,TRIM07
sub67673-50060
main67673-50060-E1i200307-200608
W(REAR DOOR SUN SHADE),CLOVEBROWN,TRIM00,08
sub67673-50060
main67673-50060-E1i200008-200307
W(REAR DOOR SUN SHADE),CLOVEBROWN,TRIM03,05
sub67673-50060
67674AGARNISH, REAR DOOR FRAME, LH
main67674-50050-B0i200008-200307
DK.CHARCOAL,TRIM1#
sub67674-50050
main67674-50050-B1i200307-200608
MD.GRAY,TRIM1#
sub67674-50050
main67674-50050-C0i200008-200307
BLACK,TRIM20,27,29
sub67674-50050
main67674-50050-C0i200307-200608
BLACK,TRIM21,24,25
sub67674-50050
main67674-50050-E0i200008-200307
SANDAL WOOD,TRIM04
sub67674-50050
main67674-50050-E0i200307-200608
SANDAL WOOD,TRIM07
sub67674-50050
main67674-50050-E1i200307-200608
CLOVEBROWN,TRIM00,08
sub67674-50050
main67674-50050-E1i200008-200307
CLOVEBROWN,TRIM03,05
sub67674-50050
main67674-50060-B0i200008-200307
W(REAR DOOR SUN SHADE),DK.CHARCOAL,TRIM1#
sub67674-50060
main67674-50060-B1i200307-200608
W(REAR DOOR SUN SHADE),MD.GRAY,TRIM1#
sub67674-50060
main67674-50060-C0i200307-200608
W(REAR DOOR SUN SHADE),BLACK,TRIM21,24,25
sub67674-50060
main67674-50060-C0i200008-200307
W(REAR DOOR SUN SHADE),BLACK,TRIM20,27,29
sub67674-50060
main67674-50060-E0i200008-200307
W(REAR DOOR SUN SHADE),SANDAL WOOD,TRIM04
sub67674-50060
main67674-50060-E0i200307-200608
W(REAR DOOR SUN SHADE),SANDAL WOOD,TRIM07
sub67674-50060
main67674-50060-E1i200307-200608
W(REAR DOOR SUN SHADE),CLOVEBROWN,TRIM00,08
sub67674-50060
main67674-50060-E1i200008-200307
W(REAR DOOR SUN SHADE),CLOVEBROWN,TRIM03,05
sub67674-50060
67675BCOVER, SIDE TRIM BOARD, FRONT RH
main67675-50010-B0i200008-200307
W/O(SIDE CURTAIN),DK.CHARCOAL,TRIM1#
sub67675-50010
main67675-50010-B1i200307-200608
W/O(SIDE CURTAIN),MD.GRAY,TRIM1#
sub67675-50010
main67675-50010-C0i200008-200307
W/O(SIDE CURTAIN),BLACK,TRIM20,27,29
sub67675-50010
main67675-50010-C0i200307-200608
W/O(SIDE CURTAIN),BLACK,TRIM21,24,25
sub67675-50010
main67675-50010-E0i200008-200307
W/O(SIDE CURTAIN),SANDAL WOOD,TRIM04
sub67675-50010
main67675-50010-E0i200307-200608
W/O(SIDE CURTAIN),SANDAL WOOD,TRIM07
sub67675-50010
main67675-50010-E1i200307-200608
W/O(SIDE CURTAIN),CLOVEBROWN,TRIM00,08
sub67675-50010
main67675-50010-E1i200008-200307
W/O(SIDE CURTAIN),CLOVEBROWN,TRIM03,05
sub67675-50010
67676BCOVER, SIDE TRIM BOARD, FRONT LH
main67676-50010-B0i200008-200307
W/O(SIDE CURTAIN),DK.CHARCOAL,TRIM1#
sub67676-50010
main67676-50010-B1i200307-200608
W/O(SIDE CURTAIN),MD.GRAY,TRIM1#
sub67676-50010
main67676-50010-C0i200307-200608
W/O(SIDE CURTAIN),BLACK,TRIM21,24,25
sub67676-50010
main67676-50010-C0i200008-200307
W/O(SIDE CURTAIN),BLACK,TRIM20,27,29
sub67676-50010
main67676-50010-E0i200008-200307
W/O(SIDE CURTAIN),SANDAL WOOD,TRIM04
sub67676-50010
main67676-50010-E0i200307-200608
W/O(SIDE CURTAIN),SANDAL WOOD,TRIM07
sub67676-50010
main67676-50010-E1i200008-200307
W/O(SIDE CURTAIN),CLOVEBROWN,TRIM03,05
sub67676-50010
main67676-50010-E1i200307-200608
W/O(SIDE CURTAIN),CLOVEBROWN,TRIM00,08
sub67676-50010
81080BLAMP ASSY, INTERIOR ILLUMINATION, NO.1
main81080-50010i200008-200608
81080CLAMP ASSY, INTERIOR ILLUMINATION, NO.1
main81080-50020i200008-200608
9015940223
main90159-40223
9016460014
main90164-60014
9016840048
main90168-40048
9016840061
main90168-40061
9018904200
main90189-04200
9046705144
main90467-05144
9046804128
main90468-04128
9090189021
main90901-89021

22 parts on this diagram · 2 diagrams in section

REAR DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
