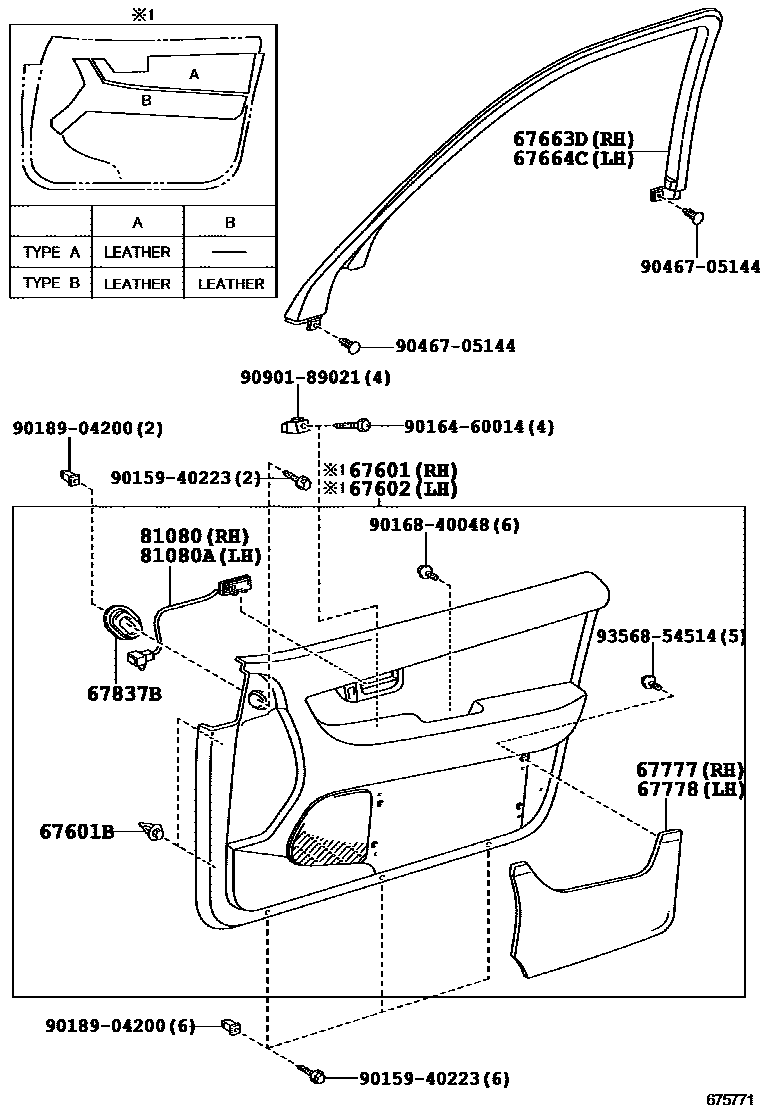

FRONT DOOR PANEL & GLASS
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,ECRU,TRIM03
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM04
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,MD CHARCOAL,TRIM1#
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,ECRU,TRIM00
sub67610-50372
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM07
sub67610-50372
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub67610-50372
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
sub67610-50372
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,ECRU,TRIM00
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM07
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK/BORDEAUX,TRIM27
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK/BLACK,TRIM29
TRIM = TYPE B-*104 & TYPE B:REFER TO ILLUSTRATION,XXXX,TRIM2#
sub67610-50382
TRIM = TYPE B-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK,BLACK,TRIM2#
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,BLACK,TRIM2#
sub67610-50402
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
TRIM = TYPE B-*104 & TYPE B:REFER TO ILLUSTRATION,ECRU/ECRU,TRIM05
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,ECRU,ECRU,TRIM0#
sub67610-50412
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,ECRU,ECRU,TRIM0#
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK,SADDLE TAN,TRIM2#
sub67610-50451
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK,SADDLE TAN,TRIM2#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,ECRU,TRIM03
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM04
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,MD CHARCOAL,TRIM1#
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,ECRU,TRIM00
sub67620-50372
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM07
sub67620-50372
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub67620-50372
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
sub67620-50372
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,ECRU,TRIM00
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM07
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK/BORDEAUX,TRIM27
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK/BLACK,TRIM29
TRIM = TYPE B-*104 & WOOD GRAIN & TYPE B:REFER TO ILLUSTRATION,BLACK,BLACK,TRIM2#
sub67620-50382
TRIM = TYPE B-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK,BLACK,TRIM2#
TRIM = TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#
TRIM = TYPE B-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,BLACK,TRIM2#
sub67620-50402
TRIM = TYPE B-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#
TRIM = TYPE B-*104 & TYPE B:REFER TO ILLUSTRATION,ECRU/ECRU,TRIM05
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,ECRU,ECRU,TRIM0#
sub67620-50412
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK,SADDLE TAN,TRIM2#
sub67620-50412
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,ECRU,ECRU,TRIM0#
TRIM = TYPE A-*104 & TYPE B:REFER TO ILLUSTRATION,BLACK,SADDLE TAN,TRIM2#
TRIM = TYPE A-*104 & WOOD GRAIN & TYPE B:REFER TO ILLUSTRATION,BLACK,SADDLE TAN,TRIM2#
sub67620-50431
TRIM = TYPE A-*104 & WOOD GRAIN & TYPE B:REFER TO ILLUSTRATION,BLACK,SADDLE TAN,TRIM2#
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67777POCKET, FRONT DOOR TRIM, RH
IVORY,TRIM04
ECRU,TRIM00,08
ECRU,TRIM03,05
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,27,29
BLACK,TRIM21,24,25
67778POCKET, FRONT DOOR TRIM, LH
IVORY,TRIM04
ECRU,TRIM03,05
ECRU,TRIM00,08
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM21,24,25
BLACK,TRIM20,27,29
67837BSEAL, FRONT DOOR DUST PROOF
DARK CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM20,27,29
BLACK,TRIM21,24,25
CLOVE BROWN,TRIM03,05
CLOVE BROWN,TRIM00,08
SANDAL WOOD,TRIM07
SANDAL WOOD,TRIM04
81080LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080ALAMP ASSY, INTERIOR ILLUMINATION, NO.1
9015940223
main90159-40223
9016460014
main90164-60014
9016840048
main90168-40048
9018904200
main90189-04200
9046705144
main90467-05144
9090189021
main90901-89021
9356854514
main93568-54514
17 parts on this diagram · 5 diagrams in section
