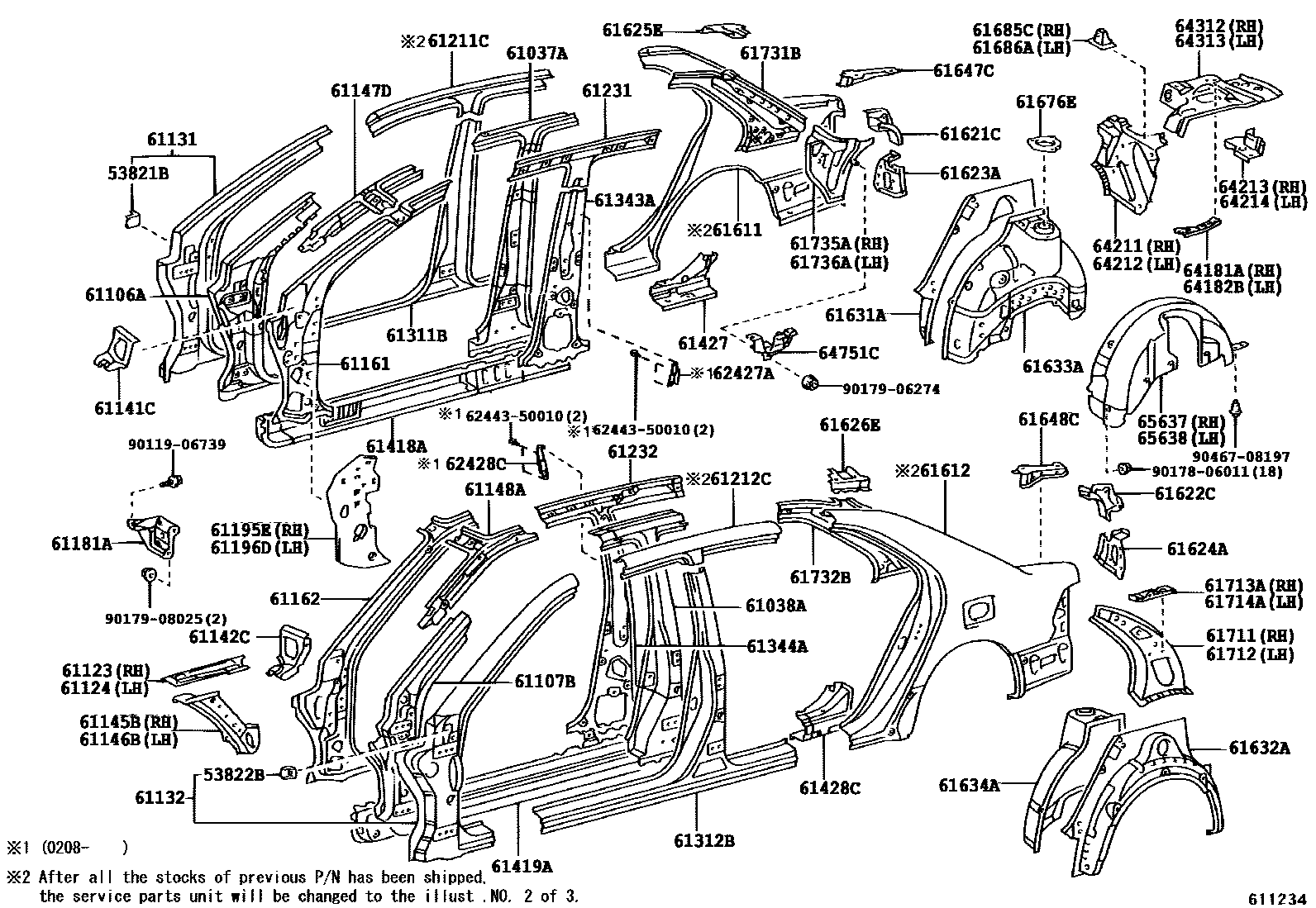

SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010i200008-200307

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010i200008-200307

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-50900i200008-200305

sub61037-50901

main61037-50901i200305-200307

main61037-50902i200307

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-50900i200008-200307

main61038-50901i200307

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-50030i200008-200307

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-50040i200008-200307

61123PANEL, COWL SIDE LOWER, RH

main61123-50020i200008-200307

61124PANEL, COWL SIDE LOWER, LH

main61124-50020i200008-200307

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61101-50080i200008-200307

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61102-50090i200008-200307

61141CEXTENSION, FRONT PILLAR, UPPER INNER RH

main61141-50030i200008-200307

61142CEXTENSION, FRONT PILLAR, UPPER INNER LH

main61142-50030i200008-200307

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-50030i200008-200307

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-50030i200008-200307

61147DEXTENSION, FRONT BODY PILLAR, UPPER OUTER RH

main61043-50010i200008-200307

61148AEXTENSION, FRONT BODY PILLAR, UPPER OUTER LH

main61044-50010i200008-200307

61161PILLAR, FRONT BODY, UPPER INNER RH

main61101-50070i200008-200009

sub61161-50030

main61161-50030i200009-200307

sub61161-50040

main61161-50040i200307

61162PILLAR, FRONT BODY, UPPER INNER LH

main61102-50080i200008-200307

sub61102-50110

main61102-50110i200307

61181ABRACKET, INSTRUMENT SIDE, RH

main61035-50050i200307-200608

61195ECOVER, FRONT PILLAR END, RH

main61195-50040i200008-200208

sub61195-50060

main61195-50060i200208-200307

61196DCOVER, FRONT PILLAR END, LH

main61196-50010i200008-200208

sub61196-50030

main61196-50030i200208-200307

61211CRAIL, ROOF SIDE, RH

main61211-50030i200008-200402

sub61211-50031

main61211-50031i200402

61212CRAIL, ROOF SIDE, LH

main61212-50030i200008-200402

sub61212-50031

main61212-50031i200402

61231RAIL, ROOF SIDE, INNER RH

main61201-50010i200008-200307

61232RAIL, ROOF SIDE, INNER LH

main61202-50010i200008-200307

61311BPILLAR, CENTER BODY, OUTER RH

main61311-50020i200008-200307

61312BPILLAR, CENTER BODY, OUTER LH

main61312-50030i200008-200307

61343APILLAR, CENTER BODY, INNER RH

main61343-50030i200008-200307

main61343-50040i200307

61344APILLAR, CENTER BODY, INNER LH

main61344-50030i200008-200307

main61344-50040i200307

61418AREINFORCEMENT, ROCKER PANEL, RH

main61401-50010i200008-200305

sub61401-50020

main61401-50020i200305-200307

sub61401-50030

main61401-50030i200307

61419AREINFORCEMENT, ROCKER PANEL, LH

main61402-50010i200008-200307

61427REINFORCEMENT, ROCKER PANEL, NO.5 RH

main61427-50020i200008-200307

61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH

main61428-50020i200008-200307

61611PANEL, QUARTER, RH

main61601-50040i200307-200402

KOREA SPEC

sub61601-50041

main61601-50040i200008-200307

sub61601-50041

main61601-50041i200402

KOREA SPEC

main61601-50050i200008-200402

sub61601-50051

main61601-50051i200402

61612PANEL, QUARTER, LH

main61602-50070i200307-200402

KOREA SPEC

sub61602-50071

main61602-50070i200008-200307

sub61602-50071

main61602-50071i200402

KOREA SPEC

main61602-50080i200008-200402

sub61602-50081

main61602-50081i200402

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-50030i200008-200408

sub61621-50031

main61621-50031i200409

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-50030i200008-200408

sub61622-50031

main61622-50031i200409

61623AEXTENSION, QUARTER PANEL, OUTER RH

main61623-50020i200008-200307

61624AEXTENSION, QUARTER PANEL, OUTER LH

main61624-50020i200008-200307

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-50020i200008-200307

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-50020i200008-200307

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-50020i200008-200307

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-50020i200008-200307

sub61632-50030

main61632-50030i200307

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-50930i200008-200307

main61607-50931i200307

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-50920i200008-200307

main61608-50921i200307

61647CREINFORCEMENT, WHEEL HOUSE, RH

main61647-50020i200008-200307

61648CREINFORCEMENT, WHEEL HOUSE, LH

main61648-50020i200008-200307

61676EREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main61675-50020i200008-200307

61685CBRACKET, REAR SEATBACK STOPPER, RH

main61685-50030i200008-200307

61686ABRACKET, REAR SEATBACK STOPPER, LH

main61686-50030i200008-200307

61711PANEL, ROOF SIDE, OUTER RH

main61711-50030i200008-200307

61712PANEL, ROOF SIDE, OUTER LH

main61712-50030i200008-200307

61713AEXTENSION, ROOF SIDE, OUTER RH

main61713-50010i200008-200307

61714AEXTENSION, ROOF SIDE, OUTER LH

main61714-50010i200008-200307

61731BPANEL, ROOF SIDE, INNER RH

main61731-50020i200008-200307

61732BPANEL, ROOF SIDE, INNER LH

main61732-50020i200008-200307

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-50020i200008-200307

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-50020i200008-200307

62427ABRACKET, CENTER PILLAR GARNISH, RH

main62427-50030i200208-200307

62428CBRACKET, CENTER PILLAR GARNISH, LH

main62428-50010i200208-200307

64181AREINFORCEMENT, REAR SEAT BELT ANCHOR, RH

main64181-50010i200008-200307

64182BREINFORCEMENT, REAR SEAT BELT ANCHOR, LH

main64182-50010i200008-200307

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-50030i200008-200307

main64211-50040i200307

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-50030i200008-200307

main64212-50040i200307

64213EXTENSION, PACKAGE TRAY STRAINER, RH

main64213-50020i200008-200307

64214EXTENSION, PACKAGE TRAY STRAINER, LH

main64214-50020i200008-200307

64312BRACKET, PACKAGE TRAY, RH

main64312-50050i200008-200307

sub64312-50080

main64312-50080i200307

64313BRACKET, PACKAGE TRAY, LH

main64313-50050i200008-200307

sub64313-50080

main64313-50080i200307

64751CBRACKET, LUGGAGE COMPARTMENT COVER, NO.1, RH

main64751-50030i200008-200307

65637LINER, REAR WHEEL HOUSE, RH

main65637-50010i200008-200307

main65637-50020i200307

65638LINER, REAR WHEEL HOUSE, LH

main65638-50010i200008-200307

main65638-50020i200307

6244350010JOINT, ROOF SIDE RAIL GARNISH, RH

main62443-50010

9011906739

main90119-06739

9017806011

main90178-06011

9017906274

main90179-06274

9017908025

main90179-08025

9046708197

main90467-08197

77 parts on this diagram · 3 diagrams in section
