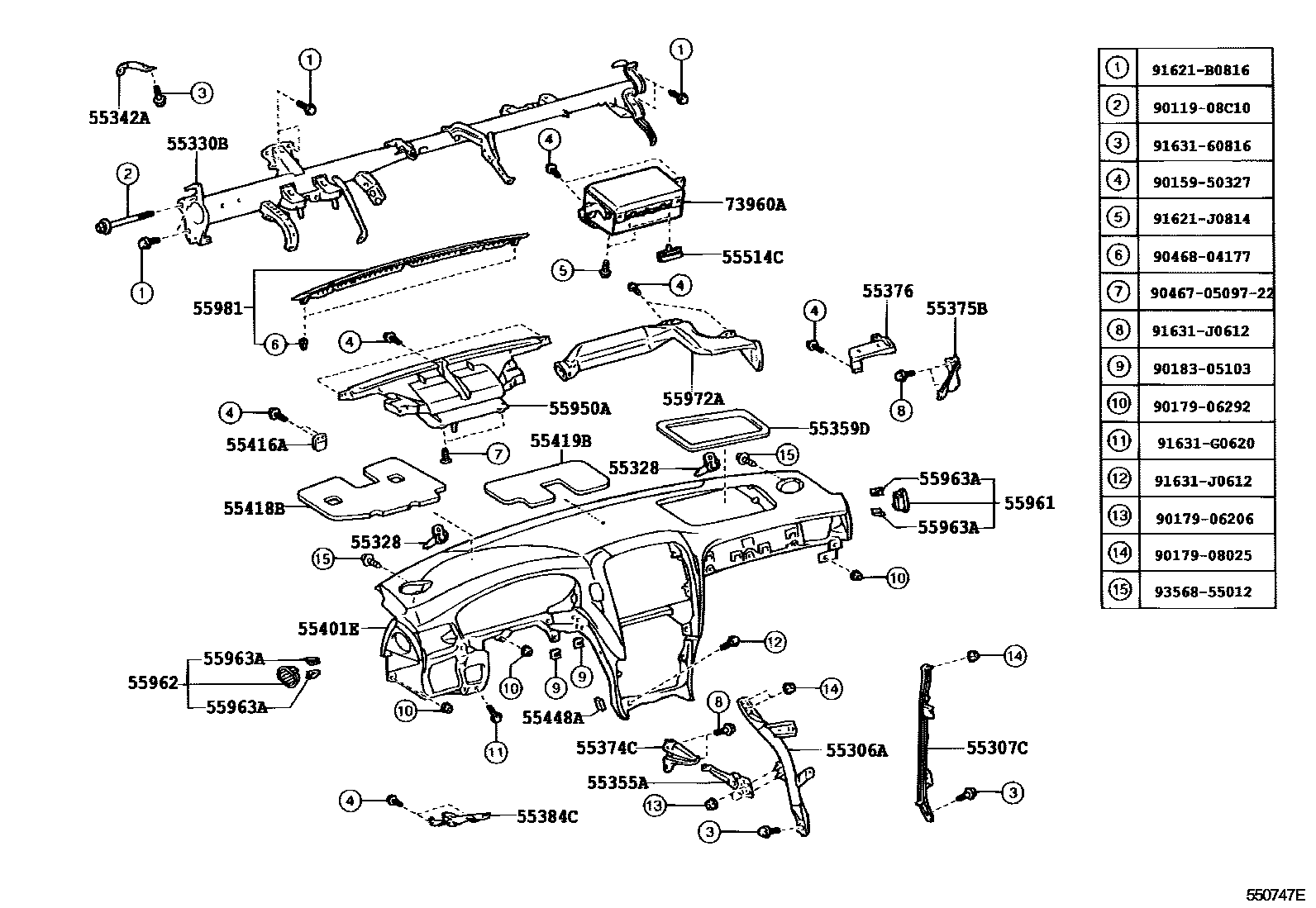

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2
55359DCUSHION, INSTRUMENT PANEL, NO.5
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55384CBRACKET, FINISH PANEL MOUNTING, NO.4
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
MD.GRAY,TRIM1#
BLACK,TRIM20,21,22,24,25
BLACK,TRIM2#
SANDAL WOOD,TRIM01,07
CLOVEBROWN,TRIM00,02,08
CLOVEBROWN,TRIM0#
55416ARETAINER, METER HOOD, NO.1
55418BSPACER,METER HOOD
55419BSPACER, METER HOOD, NO.2
55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1
55514CRETAINER, AIRBAG PASSENGER DOOR
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55963ARETAINER, SIDE DEFROSTER
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
DARK CHARCOAL,TRIM1#
MD.GRAY,TRIM1#,NO.1
BLACK,TRIM20,27,29
BLACK,TRIM21,24,25,NO.1
SANDALWOOD,TRIM07,NO.2
SANDALWOOD,TRIM04
CLOVEBROWN,TRIM03,05
CLOVEBROWN,TRIM00,08,NO.2
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9011908C10
main90119-08C10
9015950327
main90159-50327
9017906206
main90179-06206
9017906292
main90179-06292
9017908025
main90179-08025
9018305103
main90183-05103
904670509722
main90467-0509722
9046804177
main90468-04177
91621B0816
main91621-B0816
91621J0814
main91621-J0814
9163160816
main91631-60816
91631G0620
main91631-G0620
91631J0612
main91631-J0612
9356855012
main93568-55012
38 parts on this diagram · 4 diagrams in section
