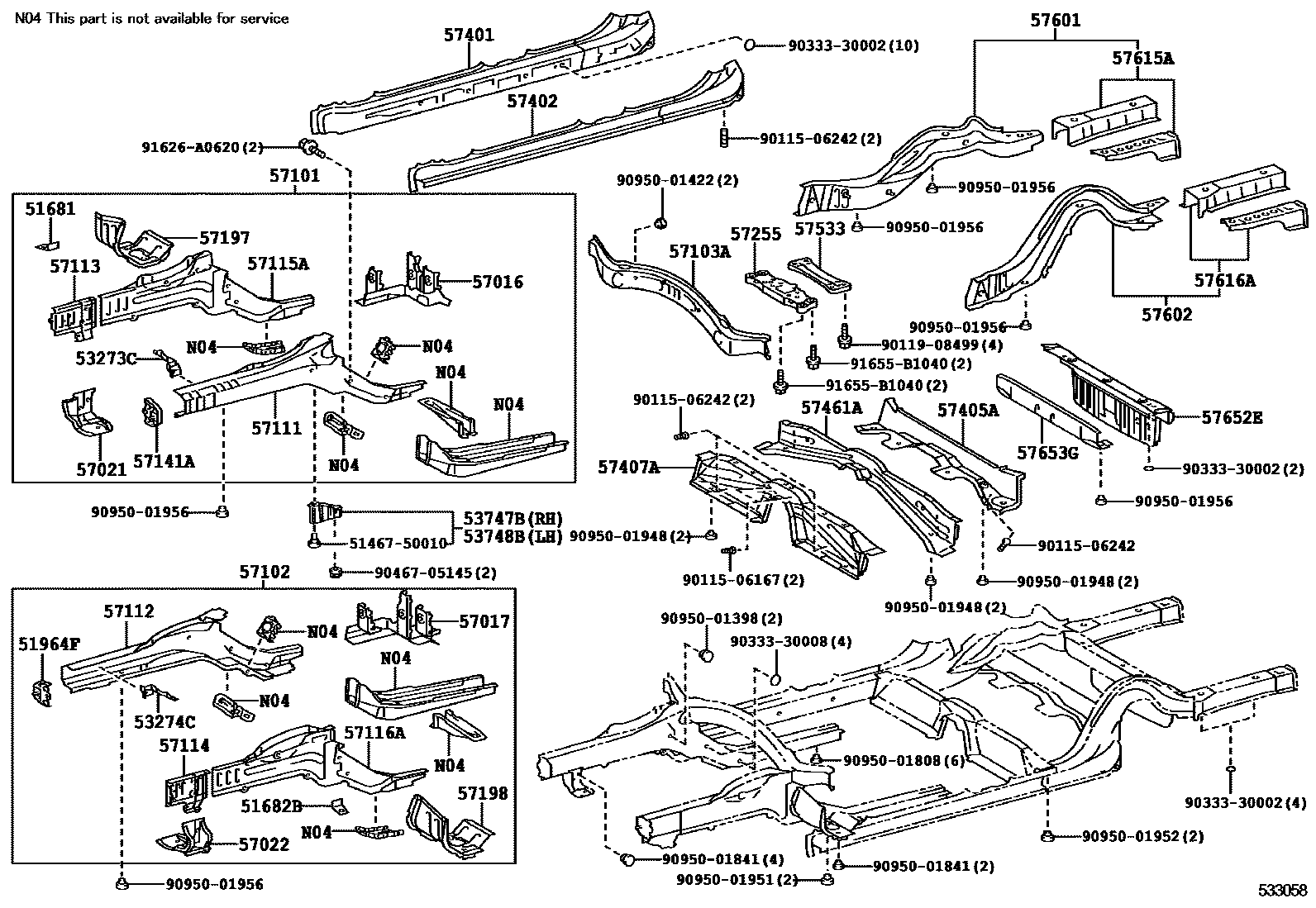

FLOOR SIDE MEMBER

0001 1 0002 1

51681BRACKET, FLEXIBLE HOSE

main51681-50040iUCF30200008-200307

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-50040iUCF30200008-200307

51964FHOOK, TRANSPORT, LH

main51093-50040iUCF30200008-200608

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-50020iUCF30200008-200307

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-50020iUCF30200008-200307

53747BPLATE, AIR SEALED, RH

main53747-50010iUCF30200008-200307

53748BPLATE, AIR SEALED, LH

main53748-50010iUCF30200008-200307

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-50030iUCF30200008-200307

main57016-50040iUCF30200307

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-50030iUCF30200008-200307

main57017-50040iUCF30200307

57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-50010iUCF30200008-200307

57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-50010iUCF30200008-200307

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-50170iUCF30200008-200307

sub57101-50180

main57101-50180iUCF30200307

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-50130iUCF30200008-200307

sub57102-50140

main57102-50140iUCF30200307

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-50010iUCF30200008-200608

57111MEMBER, FRONT SIDE, RH

main57111-50110iUCF30200008-200307

sub57111-50902

sub90115-06243

main57111-50901iUCF30200307

57112MEMBER, FRONT SIDE, LH

main57112-50070iUCF30200008-200307

sub57112-50902

sub90115-06243

main57112-50901iUCF30200307

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-50030iUCF30200008-200307

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-50030iUCF30200008-200307

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-50050iUCF30200008-200307

main57115-50060iUCF30200307

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-50050iUCF30200008-200307

main57116-50060iUCF30200307

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-50030iUCF30200008-200307

57197BOX, TORQUE, FRONT RH

main57197-50030iUCF30200008-200307

57198BOX, TORQUE, FRONT LH

main57198-50030iUCF30200008-200307

57255MEMBER, ENGINE REAR MOUNTING

main57255-50020iUCF30200008-200307

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-50902iUCF30200008-200305

sub57401-50903

main57401-50903iUCF30200305-200608

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-50902iUCF30200008-200608

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-50010iUCF30200008-200608

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-50030iUCF30200008-200608

main57407-50040iUCF30200008-200307

W(REAR POWER SEAT)

main57407-50050iUCF30200307-200608

W(CLIMATE CONTROL SEAT & REAR POWER SEAT)

57461AMEMBER, CENTER FLOOR CROSS

main57461-50040iUCF30200008-200608

57533BRACE, FRONT FLOOR, CENTER

main57533-50010iUCF30200008-200307

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-50906iUCF30200008-200608

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-50906iUCF30200008-200608

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-50904iUCF30200008-200307

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-50904iUCF30200008-200307

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-50040iUCF30200008-200608

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-50030iUCF30200008-200608

5146750010RETAINER, ENGINE UNDER COVER

main51467-50010

9011506167

main90115-06167

9011506242

main90115-06242

9011908499

main90119-08499

9033330002

main90333-30002

9033330008

main90333-30008

9046705145

main90467-05145

9095001398

main90950-01398

9095001422

main90950-01422

9095001808

main90950-01808

9095001841

main90950-01841

9095001948

main90950-01948

9095001951

main90950-01951

9095001952

main90950-01952

9095001956

main90950-01956

91626A0620

main91626-A0620

91655B1040

main91655-B1040

53 parts on this diagram · 2 diagrams in section
