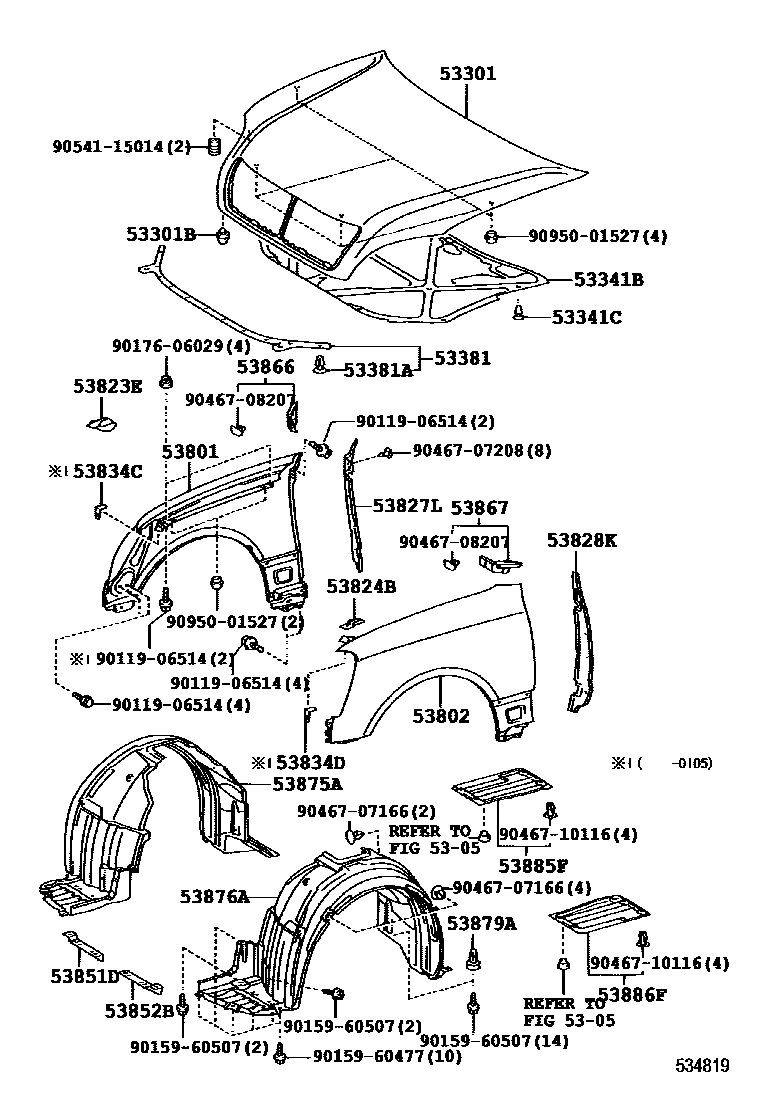

HOOD & FRONT FENDER

0001 1 0002 1

5305

53301HOOD SUB-ASSY

main53301-50040iUCF30..CND200008-200307

main53301-50050iUCF30..USA200008-200307

main53301-50060iUCF30200307-200608

main53301-50070iUCF30..USA200307-200608

53301BCUSHION, HOOD BUMPER

main53388-50020iUCF30200008-200307

main53388-50030iUCF30200307-200404

main90541-07049iUCF30200404-200608

53341BINSULATOR, HOOD

main53341-50040iUCF30200008-200307

main53341-50050iUCF30200307

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iUCF30200008-200110

main90467-09050iUCF30200111-200307

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-50060iUCF30200008-200307

sub53381-50061

main53381-50061iUCF30200307

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08044iUCF30200008-200307

sub90467-08011

53801FENDER SUB-ASSY, FRONT RH

main53801-50100iUCF30..CND200008-200106

sub53801-50130

main53801-50130iUCF30..USA200008-200307

main53801-50160iUCF30200307-200608

53802FENDER SUB-ASSY, FRONT LH

main53802-50100iUCF30..CND200008-200106

sub53802-50130

main53802-50130iUCF30..USA200008-200307

main53802-50160iUCF30200307-200608

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-50010iUCF30200008-200307

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-50010iUCF30200008-200307

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-50030iUCF30200008-200407

sub53827-50050

main53827-50040iUCF30200407

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-50030iUCF30200008-200407

sub53828-50050

main53828-50040iUCF30200407

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-50040iUCF30200008-200105

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-50040iUCF30200008-200105

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-50020iUCF30200008-200307

main53851-50030iUCF30200307

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-50010iUCF30200008-200307

main53852-50020iUCF30200307

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-50030iUCF30200008-200107

main53866-50031iUCF30200107-200307

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-50030iUCF30200008-200107

main53867-50031iUCF30200107-200307

53875ALINER, FRONT FENDER, RH

main53805-50020iUCF30200008-200307

main53805-50030iUCF30200307

53876ALINER, FRONT FENDER, LH

main53806-50020iUCF30200008-200307

main53806-50030iUCF30200307

53879ARETAINER, FRONT FENDER LINER

main53879-50010iUCF30200008-200307

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-50010iUCF30200008-200512

sub53885-50011

sub64934-50010

main53885-50011iUCF30200512

53886FSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-50010iUCF30200008-200512

sub53886-50011

sub64934-50010

main53886-50011iUCF30200512

9011906514

main90119-06514

9015960477

main90159-60477

9015960507

main90159-60507

9017606029

main90176-06029

9046707166

main90467-07166

9046707208

main90467-07208

9046708207

main90467-08207

9046710116

main90467-10116

9054115014

main90541-15014

9095001527

main90950-01527

34 parts on this diagram · 2 diagrams in section
