STEERING COLUMN & SHAFT

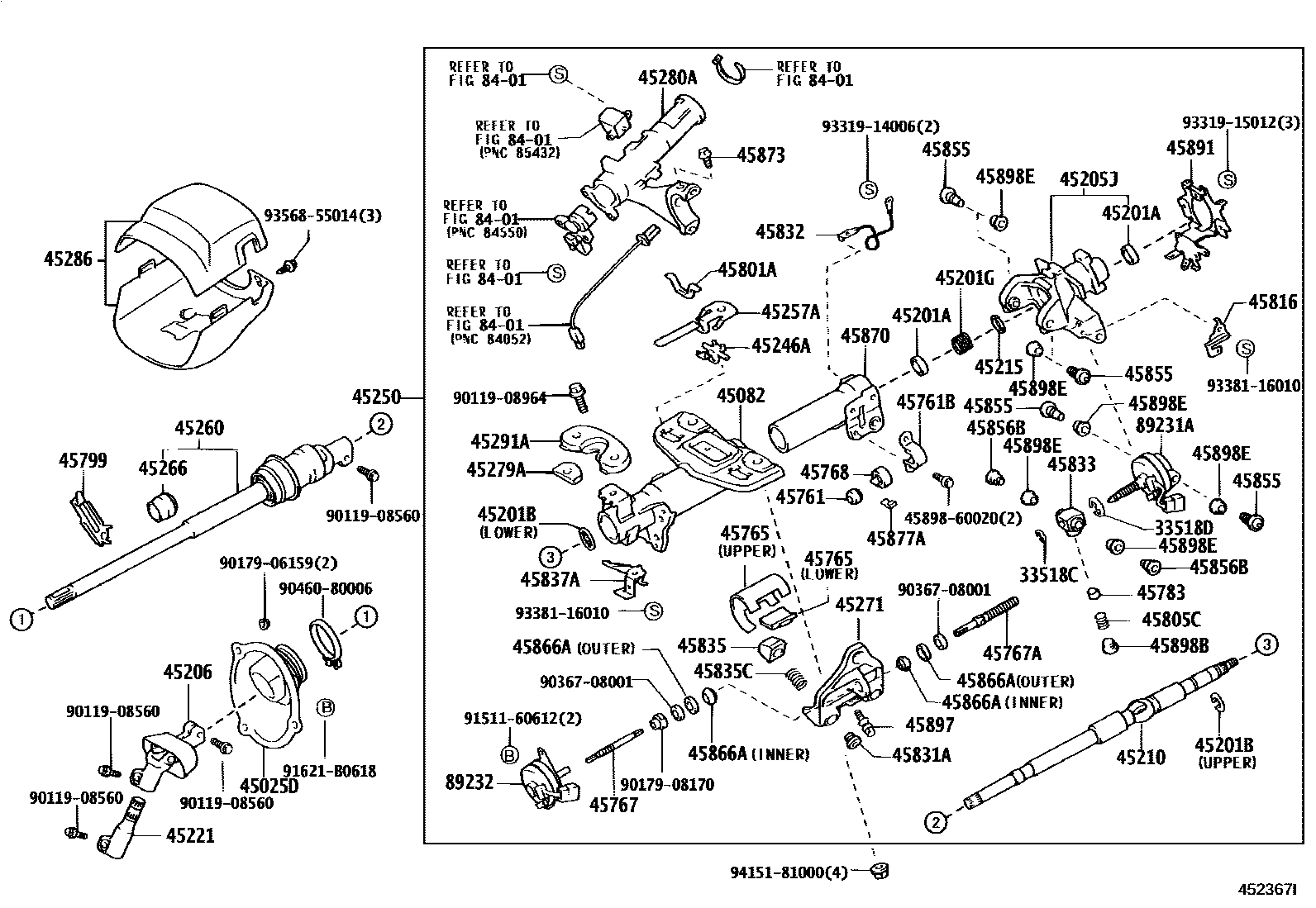

Parts diagram
33518CE RING (FOR TILT MOTOR SHAFT, UPPER)
main90523-06019i200008-200307
33518DE RING (FOR TILT MOTOR SHAFT, LOWER)
main90523-08001i200008-200307
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-50060i200008-200307
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
main45082-50100i200008-200307
main45082-50120i200307
45201ABEARING(FOR STEERING MAIN SHAFT)
main90363-18005i200008-200307
main90363-18005i200307
NO.2
main90363-25077i200307
NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main90520-17042i200008-200307
T=1.20,UPPER
main90520-17042i200307
T=1.20
main90905-20003i200008-200307
T=0.5,LOWER
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
main45820-50010i200307
main90501-40017i200008-200307
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
main45205-30320i200008-200307
main45205-50020i200307
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
main45206-50020i200008-200307
45210SHAFT ASSY, STEERING MAIN
main45210-50050i200008-200201
sub45210-50051
main45210-50051i200201-200307
main45210-50060i200307
45215COLLAR, MAIN SHAFT BEARING THRUST
main45215-12010i200008-200307
45221SHAFT, STEERING INTERMEDIATE
main45297-50010i200008-200307
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
main45246-28040i200107-200307
main45246-50040i200008-200307
45250COLUMN ASSY, STEERING
main45250-50160i200008-200107
main45250-50180i200107-200208
sub45250-50181
main45250-50181i200208-200307
main45250-50190i200107-200204
sub45250-50191
main45250-50191i200204-200307
main45250-50200i200307
main45250-50210i200307
W(SMART KEY SYSTEM)
45257APLATE, STEERING COLUMN ENERGY ABSORBING
main45257-12070i200008-200307
main45257-28010i200107-200307
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45260-50070i200008-200307
45266COVER, STEERING INTERMEDIATE SHAFT DUST
main45266-30010i200008-200307
45271CLAMP, STEERING COLUMN, UPPER
main45271-60030i200008-200307
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
main45279-33030i200008-200307
45280ABRACKET ASSY, STEERING COLUMN, UPPER
main45280-50090i200008-200307
45286COVER, STEERING COLUMN
main45286-50913-B1i200307
MD.GRAY,TRIM10
sub45286-50960
main45286-50913-C0i200307
BLACK,TRIM21,24
sub45286-50960
main45286-50913-E0i200307
SANDAL WOOD,TRIM07
sub45286-50960
main45286-50913-E1i200307
CLOVE BROWN,TRIM00
sub45286-50960
main45286-50950-B0i200008-200108
DK.CHARCOAL,TRIM1#
sub45286-50940
main45286-50950-C0i200008-200108
BLACK,TRIM20,27,29
sub45286-50940
main45286-50950-E0i200008-200108
SANDAL WOOD,TRIM04
sub45286-50940
main45286-50950-E1i200008-200108
CLOVE BROWN,TRIM03,05
sub45286-50940
main45286-50970-B0i200108-200307
DK.CHARCOAL,TRIM1#
sub45286-50960
main45286-50970-C0i200108-200307
BLACK,TRIM20,27,29
sub45286-50960
main45286-50970-E0i200108-200307
SANDAL WOOD,TRIM04
sub45286-50960
main45286-50970-E1i200108-200307
CLOVE BROWN,TRIM03,05
sub45286-50960
45291ASUPPORT, STEERING COLUMN TUBE
main45291-33020i200008-200307
45761SLIDER, TELESCOPIC STEERING
main45761-60010i200008-200307
45761BSUPPORT, TELESCOPIC STEERING SLIDER
main45766-60010i200008-200307
sub45766-60011
main45766-60011i200307
45765GUIDE, TELESCOPIC STEERING
main45765-60011i200008-200307
UPPER
main45765-60021i200008-200307
LOWER
45767CABLE, TELESCOPIC STEERING COLUMN
main45767-50010i200008-200311
sub45230-50020
45767ASCREW, TELESCOPIC STEERING
main45811-60010i200008-200307
45768BUSH, TELESCOPIC STEERING
main45768-60011i200008-200307
45783STOPPER, TILT STEERING, NO.1
main45783-60010i200008-200307
45799CLAMP, STEERING INTERMEDIATE SHAFT, LH
main45799-50010i200008-200307
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
main45875-12010i200008-200307
45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)
main90504-14007i200008-200307
45816BRACKET, WIRE HARNESS
main45816-50030i200307
main45816-60020i200008-200307
45831ABOLT, TELESCOPE LEVER LOCK
main45831-60010i200008-200307
45832CABLE, TILT STEERING SUPPORT BOND
main45832-60010i200008-200307
45833NUT, TILT STEERING ADJUSTING, NO.1
main45833-60010i200008-200307
45835WEDGE, LOCK
main45835-60010i200008-200307
45835CSPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK)
main90501-23140i200008-200307
45837ABRACKET, STEERLNG LOWER TUBE, NO.1
main45837-30020i200008-200307
main45837-50030i200307
45855BOLT, TILT STEERING, NO.1
main45855-60010i200008-200307
OD=11.993-11.979
45856BSHAFT, T1LT STEERING, NO.2
main45856-60010i200008-200307
45866ASTOPPER, STEERING MAIN SHAFT BUSH
main45866-60010i200008-200307
INNER
main45866-60020i200008-200307
OUTER
45870TUBE ASSY, STEERING COLUMN
main45870-50030i200008-200307
45873STOPPER, STEERING COLUMN TUBE
main45873-60010i200008-200307
45877ASPACER, STEERING COLUMN BRACKET
main45877-60011i200008-200307
45891BRACKET, TURN SIGNAL
main45891-30040i200008-200204
main45891-50040i200204-200307
45897BOLT, STEERING LOCK SET
main45897-12020i200008-200307
45898BBOLT, TILT STEERING SUPPORT STOPPER
main45898-60010i200008-200307
45898EBUSH(FOR TILT STEERING SUPPORT BOLT)
main90389-08124i200008-200307
8401
89231AMOTOR, POWER TILT
main89231-50050i200008-200307
main89231-50060i200307
89232MOTOR, POWER TELESCOPIC
main89232-50041i200008-200307
main89232-50050i200307
4589860020BOLT, STEERING LOCK SET
main45898-60020
9011908560
main90119-08560
9011908964
main90119-08964
9017906159
main90179-06159
9017908170
main90179-08170
9036708001
main90367-08001
9046080006
main90460-80006
9151160612
main91511-60612
91621B0618
main91621-B0618
9331914006
main93319-14006
9331915012
main93319-15012
9338116010
main93381-16010
9356855014
main93568-55014
9415181000
main94151-81000

66 parts on this diagram · 3 diagrams in section
