TELEPHONE & MAYDAY

82817RPROTECTOR, WIRING HARNESS, NO.16

main82817-5A730iUCF20199410

86011LFILTER, NOISE

main90980-05281iUCF20199410

86162ARELAY, SPEAKER

main86162-50010iUCF20199410-199702

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-50020iUCF20199410-199707

main86705-50060iUCF20199707

NO.1

main86705-50080iUCF20199707-199809

NO.2

main86705-50081iUCF20199809

NO.2

86719BRACKET, TELEPHONE

main86719-50070iUCF20199410

86723WIRE, MOBILEPHONE

main86723-50100iUCF20199410

86724GUIDE, CURL CORD

main86724-33010iUCF20199410

86729BRACKET, MOBILEPHONE

main86729-50080iUCF20199410

7589960010TAPE, MOULDING, NO.5

main75899-60010

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9016850031

main90168-50031

9017906100

main90179-06100

9033330002

main90333-30002

9054106054

main90541-06054

9321954010

main93219-54010

9321954030

main93219-54030

9324954010

main93249-54010

9331116010

main93311-16010

9354025012

main93540-25012

9354053010

main93540-53010

9413060440

main94130-60440

9413060600

main94130-60600

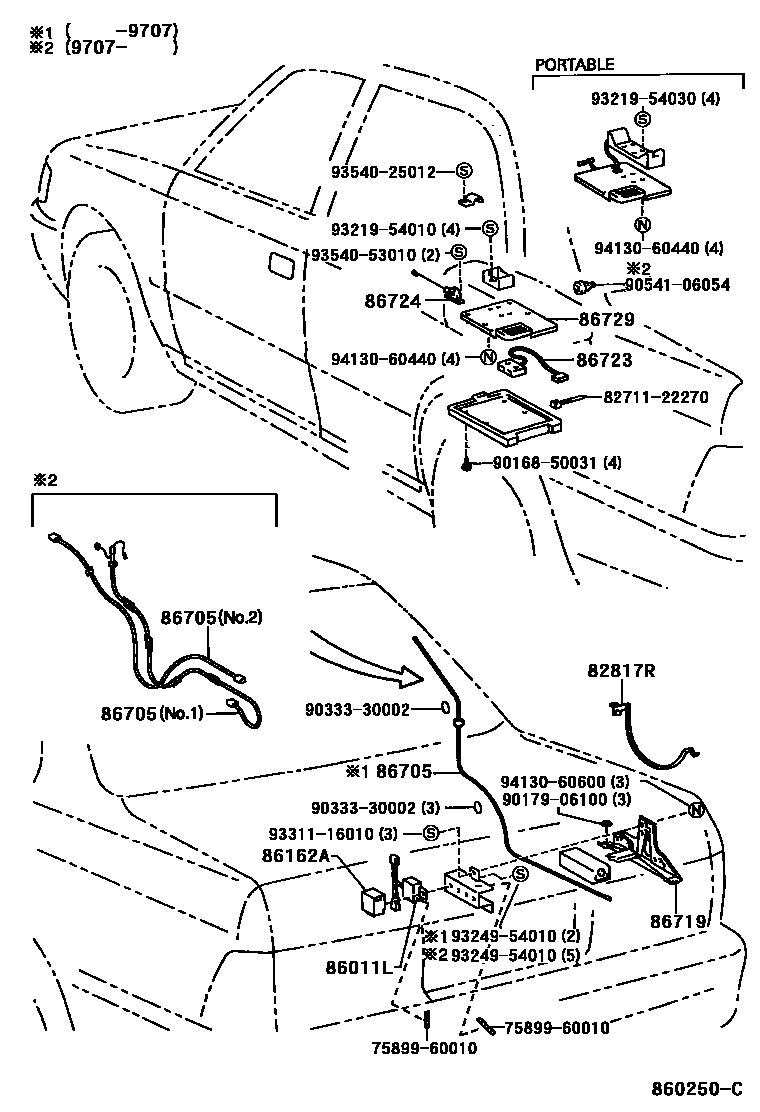

22 parts on this diagram · 1 diagram in section
