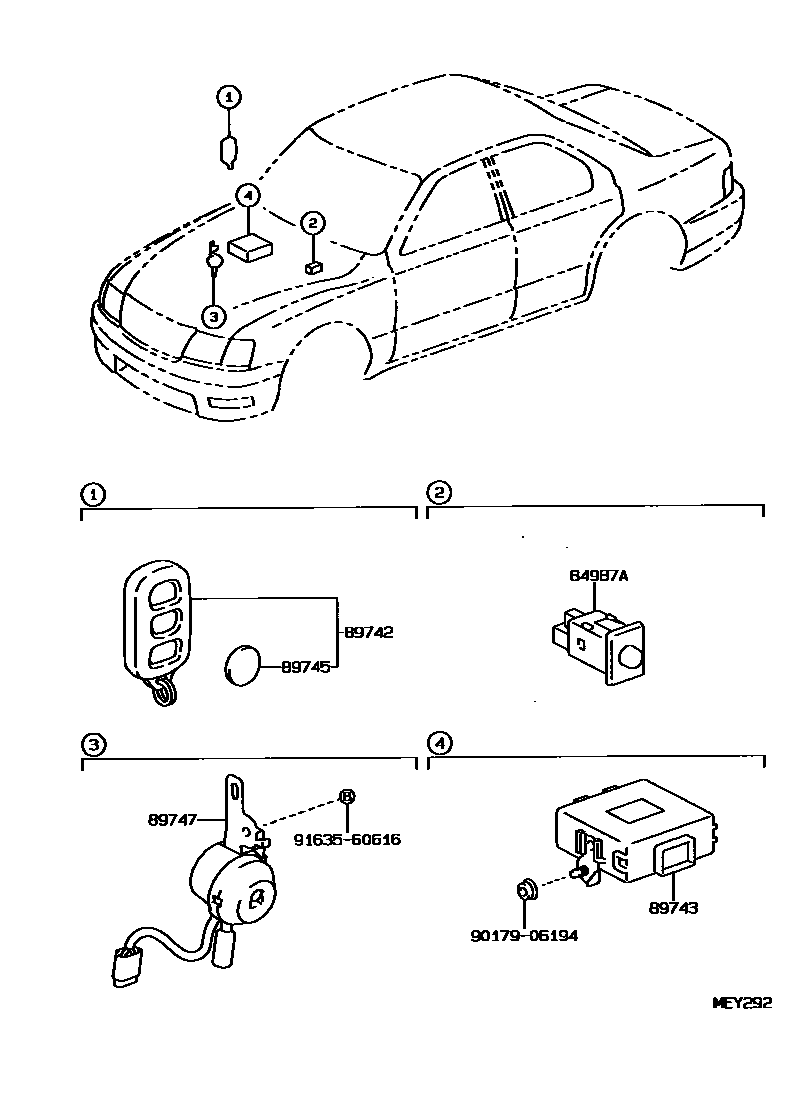

WIRELESS DOOR LOCK

0001 1 0002 1

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-50040iUCF20199410

89742TRANSMITTER, DOOR CONTROL

main89742-50510iUCF20199410-199707

89743RECEIVER, DOOR CONTROL

main89741-50130iUCF20199410-199608

sub89741-50131

main89741-50131iUCF20199608-199707

89745BATTERY, TRANSMITTER

main89745-40010iUCF20199707

main89745-50010iUCF20199410-199707

sub89745-71010

89747BUZZER, WIRELESS DOOR LOCK

main89747-50030iUCF20199410-199707

main89747-50040iUCF20199707

9017906194

main90179-06194

9163560616

main91635-60616

7 parts on this diagram · 2 diagrams in section
