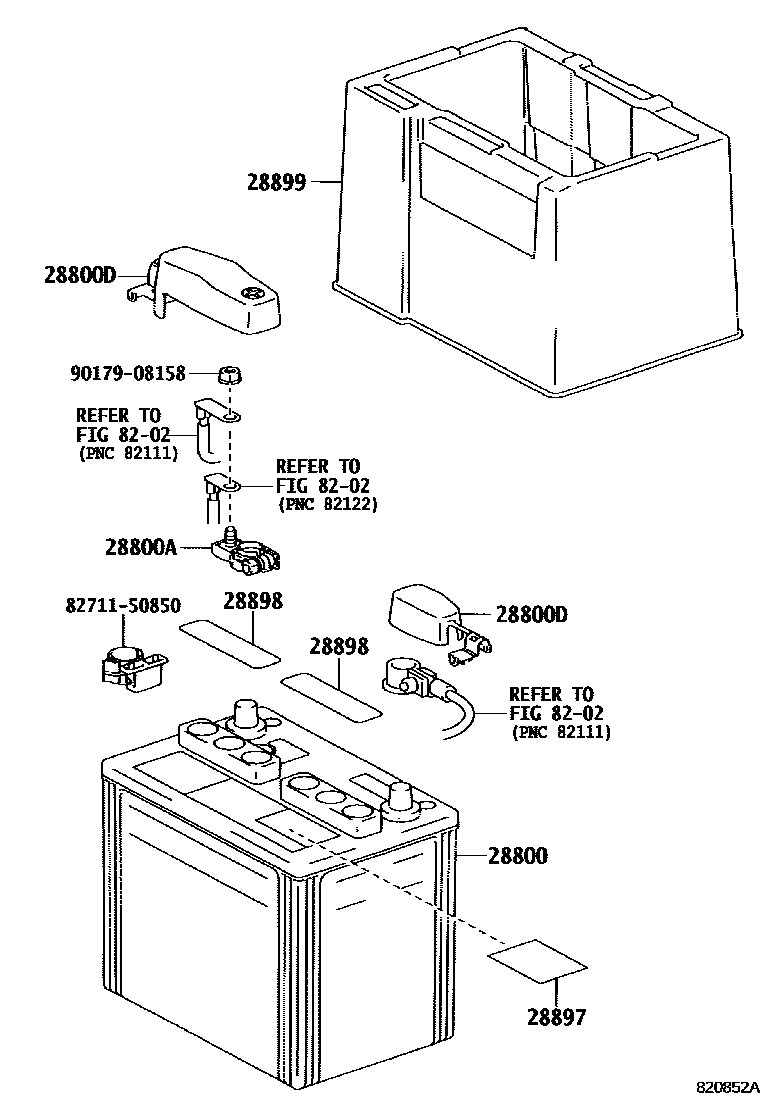

BATTERY & BATTERY CABLE

28800BATTERY

main28800-50060i1UZFE..UCF20199410

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i1UZFE..UCF20199410

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50050i1UZFE..UCF20199410

POSITIVE SIDE

main82821-50060i1UZFE..UCF20199410

NEGATIVE SIDE

28897PLATE, BATTERY CAUTION

main28897-38010i1UZFE..UCF20..CND199410-199609

main28897-46020i1UZFE..UCF20..CND199609

28898PLATE, BATTERY

main28898-50130i1UZFE..UCF20199410

28899INSULATOR, BATTERY

main28899-50030i1UZFE..UCF20199410

8202

8271150850WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50850

9017908158

main90179-08158

9 parts on this diagram · 1 diagram in section
