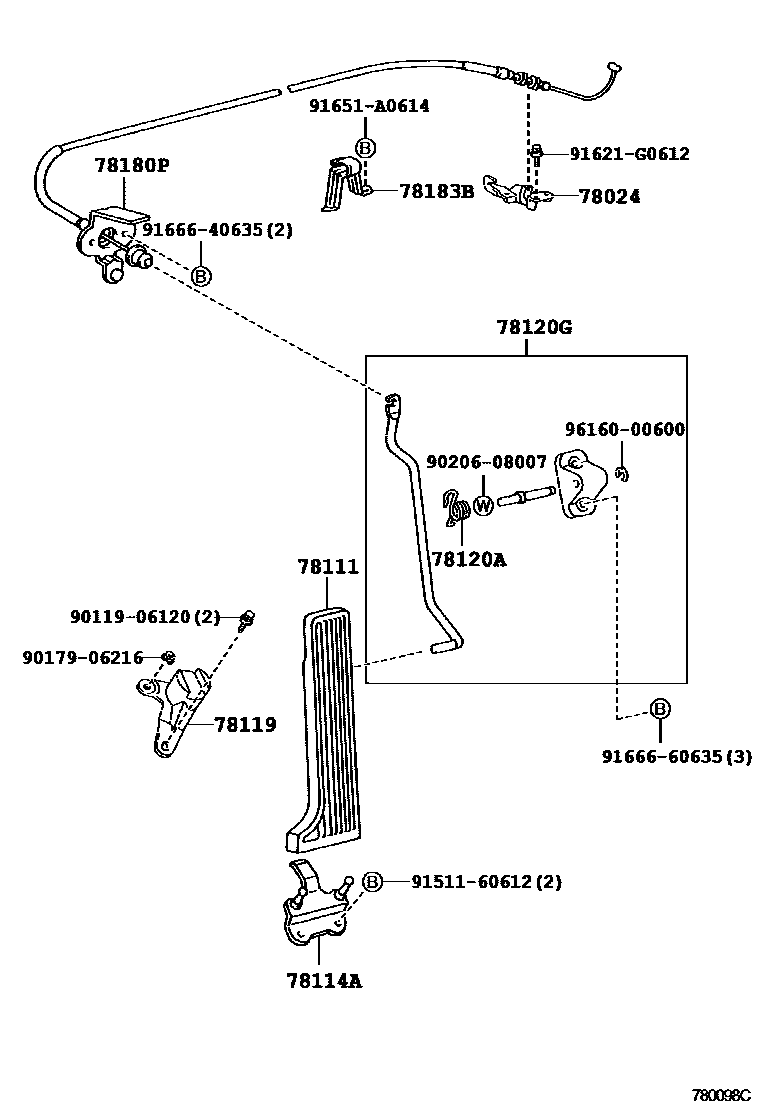

ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-50010iUCF20199410-199707

main78024-50020iUCF20199707

78111PEDAL, ACCELERATOR

main78111-12100iUCF20..CND199410

main78111-30110iUCF20..USA199410

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-50021iUCF20..USA199410

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50010iUCF20199410-199707

main78119-50030iUCF20199707

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main78214-50010iUCF20..CND199707

main90508-18103iUCF20..USA199707

main90959-03059iUCF20199410-199707

78120GROD ASSY, ACCELERATOR PEDAL

main78120-50050iUCF20..USA199410-199707

main78120-50080iUCF20..CND199410-199707

main78120-50120iUCF20..CND199707

main78120-50130iUCF20..USA199707

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-50050iUCF20199410-199707

main78180-50060iUCF20199707

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-30140iUCF20199707

9011906120

main90119-06120

9017906216

main90179-06216

9020608007

main90206-08007

9151160612

main91511-60612

91621G0612

main91621-G0612

91651A0614

main91651-A0614

9166640635

main91666-40635

9166660635

main91666-60635

9616000600

main96160-00600

17 parts on this diagram · 2 diagrams in section
