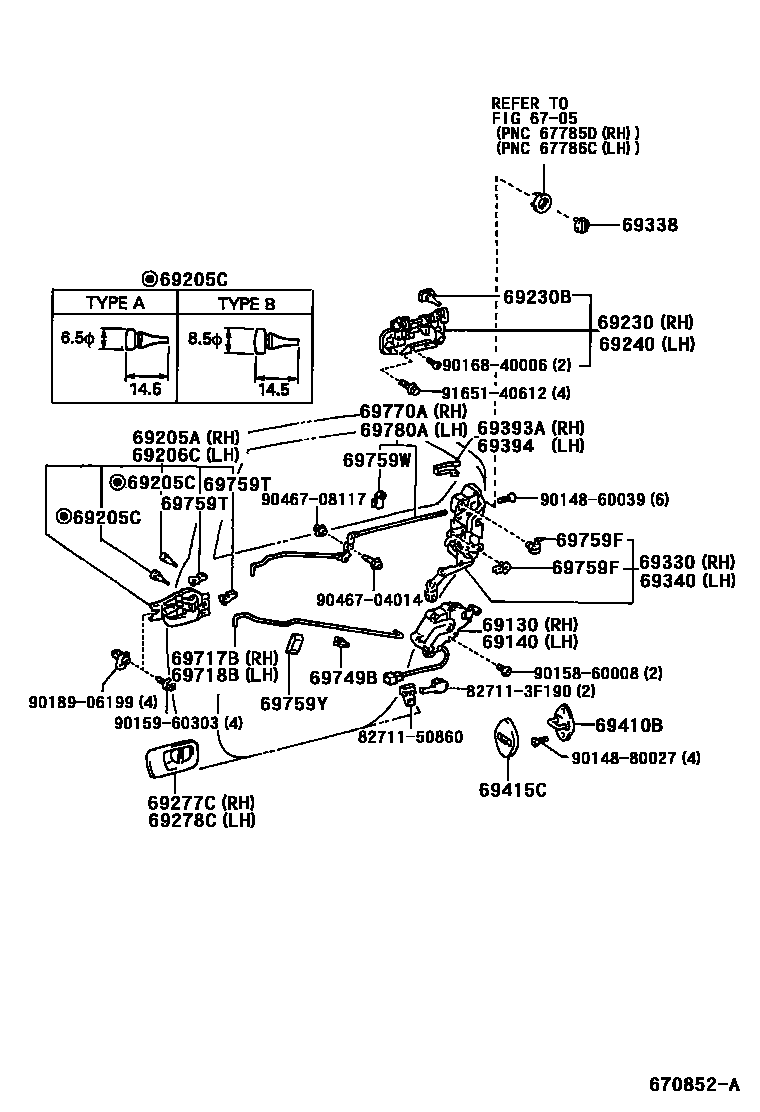

REAR DOOR LOCK & HANDLE
6705
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SU.WHITE PM,051
COACH EDITION,WARM GRAY PEARL MICA,046
WHITE PEARL CS,062
SILVER ME,199
SILVER ME.,1C0
BLACK,202
ROSE RED MC.,3M9
BEIGE ME.,4M9
GRAYISH BROWN ME.,4N1
COPPER BROWN M.M.MS.,4P1
BEIGE ME.,4P7
GRAYISH GREEN M.M.,6N0
DK.GREEN MC.P.I.O.,6N9
DK.GREEN M.M.,6P3
LT.GREEN ME.OP.,6P7
DK. GREEN MC.,6Q7
DK.BLUE MC.,8L1
DK.BLUE MC.,8L4
AMETHYST ME.,941
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69338KNOB, CHILD PROTECTOR LOCK LEVER
69393ACOVER, REAR DOOR LOCK, OUTER RH
69394COVER, REAR DOOR LOCK, OUTER LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
GREEN
GRAY
NATURAL
69759TSNAP, REAR DOOR INSIDE HANDLE
GRAY
GREEN
NATURAL
BLUE
69759WSNAP, REAR DOOR LOCK CONTROL LINK
NATURAL
BLUE
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
827113F190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F190
8271150860WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-50860
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9015960303
main90159-60303
9016840006
main90168-40006
9018906199
main90189-06199
9046704014
main90467-04014
9046708117
main90467-08117
9165140612
main91651-40612
38 parts on this diagram · 1 diagram in section
