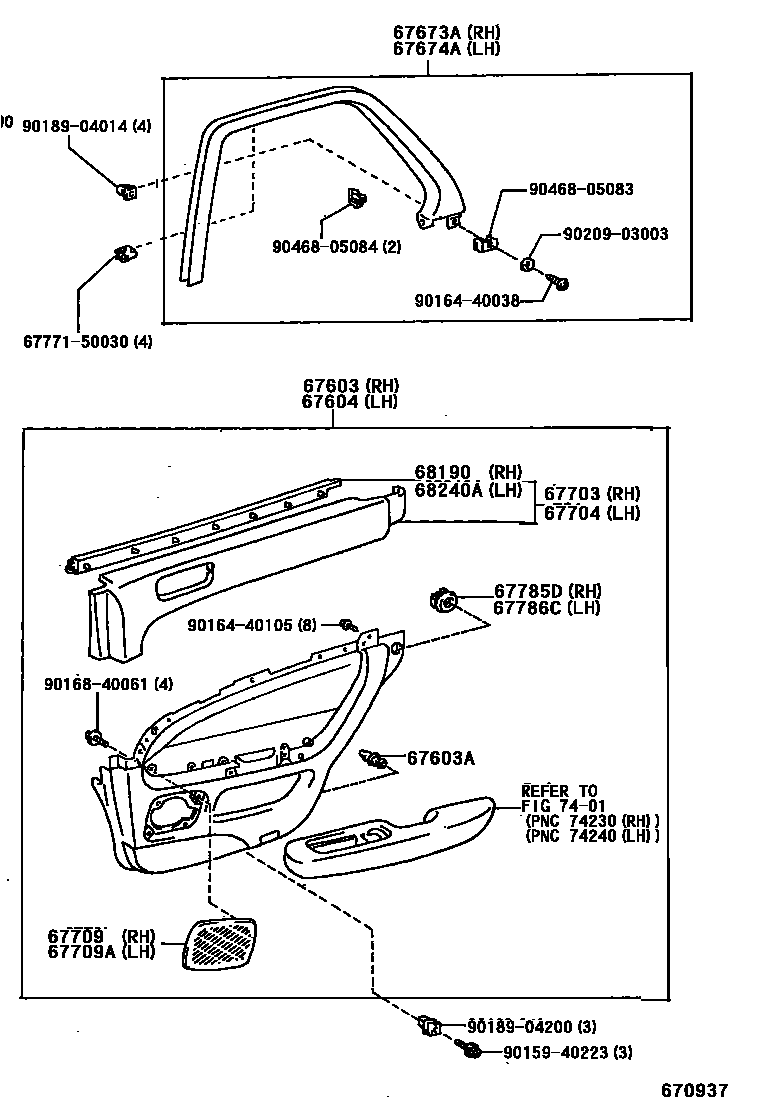

REAR DOOR PANEL & GLASS
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67703COVER SUB-ASSY, REAR DOOR TRIM, RH
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
SANDAL WOOD,TRIM0#
DK.AGATE,TRIM6#
67704COVER SUB-ASSY, REAR DOOR TRIM, LH
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
SANDAL WOOD,TRIM0#
DK.AGATE,TRIM6#
67709GRILLE SUB-ASSY, DOOR SPEAKER, RH
IVORY,TRIM0#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
67709AGRILLE SUB-ASSY, DOOR SPEAKER, LH
IVORY,TRIM0#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
67785DCOVER, REAR DOOR TRIM, UPPER RH
67786CCOVER, REAR DOOR TRIM, UPPER LH
7401
6777150030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-50030
9015940223
main90159-40223
9016440038
main90164-40038
9016440105
main90164-40105
9016840061
main90168-40061
9018904014
main90189-04014
9018904200
main90189-04200
9020903003
main90209-03003
9046805083
main90468-05083
9046805084
main90468-05084
24 parts on this diagram · 2 diagrams in section
