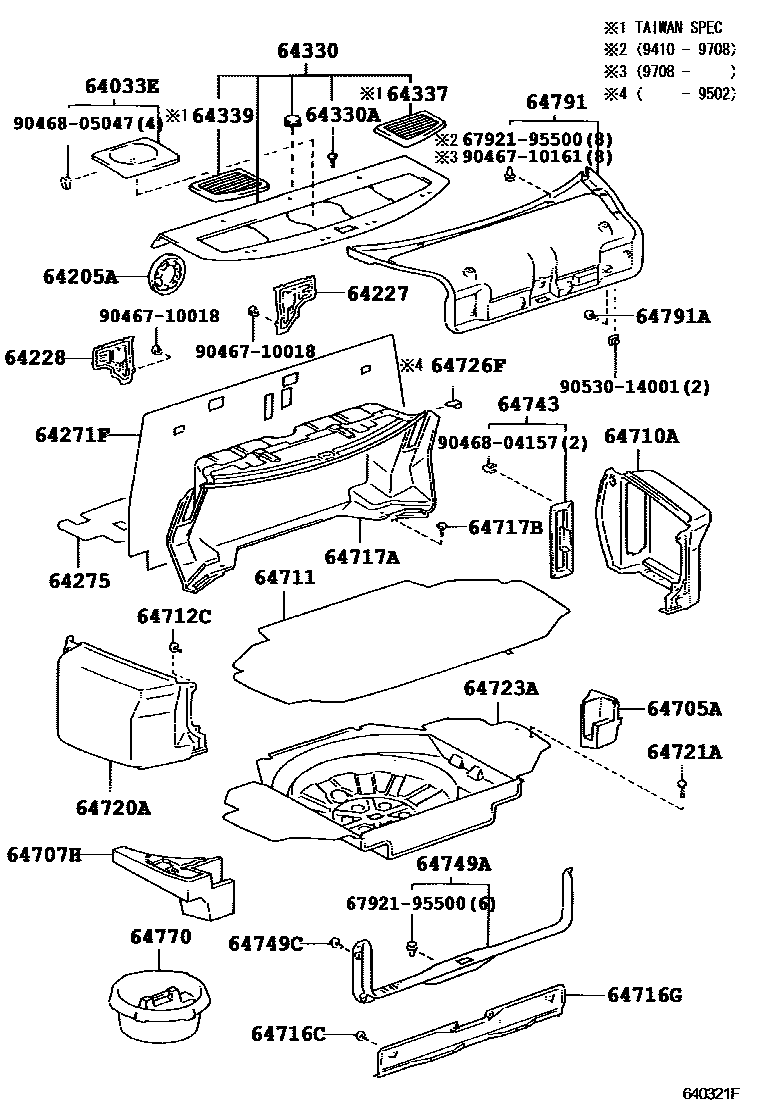

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64033EGRILLE SUB-ASSY, REAR SPEAKER
64205ACOVER SUB-ASSY, ROOM PARTITION
64227EXTENSION, CENTER FLOOR TO BRACE
64228EXTENSION, CENTER FLOOR TO BRACE, NO.2
64275PAD, ROOM PARTITION TRIM, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
TAIWAN SPEC,BLUE GRAY,TRIM1#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
TAIWAN SPEC,BLACK,TRIM2#
MEDIUM OAK,TRIM0#
TAIWAN SPEC,SANDALWOOD,TRIM0#
SANDALWOOD,TRIM0#
AGATE,TRIM6#
TAIWAN SPEC,AGATE,TRIM6#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
SANDALWOOD,TRIM0#
AGATE,TRIM6#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64337GARNISH, PACKAGE TRAY TRIM, RH
64339GARNISH, PACKAGE TRAY TRIM, LH
64705AGUARD SUB-ASSY, SPARE WHEEL
64707HGUARD SUB-ASSY, SPARE WHEEL, NO.2
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,1#,2#,6#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#,2#,6#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM0#,1#,2#,6#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#,6#
TAIWAN SPEC,BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,6#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,1#,2#,6#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64743COVER, SIDE TRIM TOOL BAG
BLACK,TRIM0#,1#,2#,6#
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM0#,1#,2#,6#
64749CCLIP(FOR LUGGAGE DOOR STRIKER COVER)
64770COVER ASSY, SPARE WHEEL
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#,6#
BLACK,TRIM0#,1#,2#,6#
64791ACLIP(FOR BACK DOOR TRIM)
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9046710018
main90467-10018
9046710161
main90467-10161
9046804157
main90468-04157
9046805047
main90468-05047
9053014001
main90530-14001
35 parts on this diagram · 1 diagram in section
