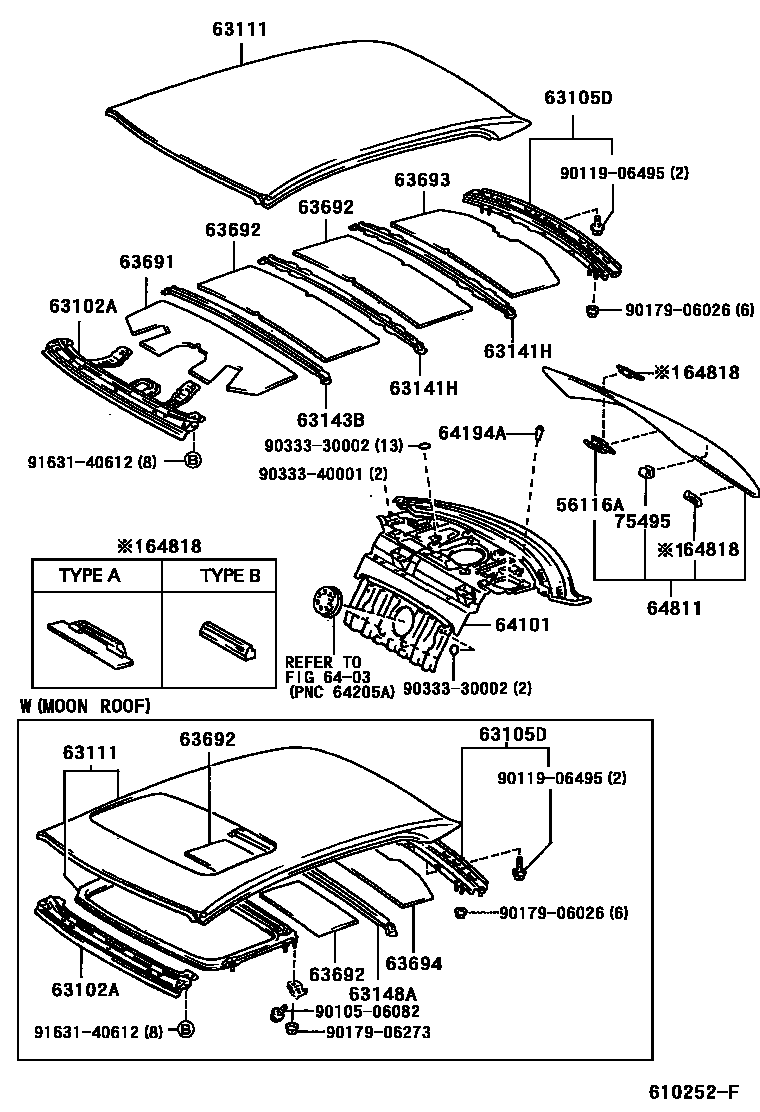

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56116ASPACER, WINDSHIELD GLASS

main56116-22080iUCF20199410-199707

main56116-50020iUCF20199707

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-50030iUCF20199410-199808

sub63102-50031

main63102-50031iUCF20199808

main63102-50040iUCF20199410-199808

W(MOON ROOF)

sub63102-50041

main63102-50041iUCF20199808

W(MOON ROOF)

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-50020iUCF20199410

63111PANEL, ROOF

main63111-50030iUCF20199410-199808

sub63111-50031

main63111-50031iUCF20199808

main63111-50900iUCF20199410-199808

W(MOON ROOF)

sub63111-50901

main63111-50901iUCF20199808

W(MOON ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-50020iUCF20199410

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-50020iUCF20199410

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-50020iUCF20199410

63691PAD, ROOF SILENCER, NO.21

main63691-50020iUCF20199410-199707

sub63691-50030

main63691-50030iUCF20199707

63692PAD, ROOF SILENCER, NO.22

main63692-50010iUCF20199410-199707

sub63692-50020

main63692-50020iUCF20199410

W(MOON ROOF)

main63692-50030iUCF20199707

63693PAD, ROOF SILENCER, NO.23

main63693-50010iUCF20199410-199707

sub63693-50020

main63693-50020iUCF20199707

63694PAD, ROOF SILENCER, NO.24

main63694-50010iUCF20199410-199707

sub63694-50020

main63694-50020iUCF20199707

6403

64101PANEL SUB-ASSY, UPPER BACK

main64101-50100iUCF20199410-199904

sub64101-50101

main64101-50101iUCF20199904-200008

main64101-50140iUCF20..USA199710-199904

TAIWAN SPEC

sub64101-50141

main64101-50141iUCF20..USA199904-199908

TAIWAN SPEC

main64101-50150iUCF20..USA199808-199904

TAIWAN SPEC & W(REAR POWER SEAT)

sub64101-50151

main64101-50151iUCF20..USA199904-199908

TAIWAN SPEC & W(REAR POWER SEAT)

main64101-50160iUCF20..USA199908-200008

TAIWAN SPEC

64194APAD, BACK PANEL SILENCER, UPPER

main64194-30010iUCF20199707

64811GLASS, BACK WINDOW

main64810-50180iUCF20199410-199707

*TT,T=4.0,GREEN

main64810-50200iUCF20199410-199707

*TT,T=4.0,GRAY

main64810-50260iUCF20199707

*UVCT,T=5.0,BRONZE

main64810-50270iUCF20199707

*UVCT,T=5.0,GREEN

64818SPACER, BACK WINDOW GLASS

main56115-30090iUCF20199410

TYPE A:REFER TO ILLUSTRATION

main64818-50030iUCF20199410

TYPE B:REFER TO ILLUSTRATION

75495CLIP, OUTSIDE MOULDING, NO.4

main75495-50030iUCF20199410-199707

main75495-50040iUCF20199707

9010506082

main90105-06082

9011906495

main90119-06495

9017906026

main90179-06026

9017906273

main90179-06273

9033330002

main90333-30002

9033340001

main90333-40001

9163140612

main91631-40612

24 parts on this diagram · 2 diagrams in section
