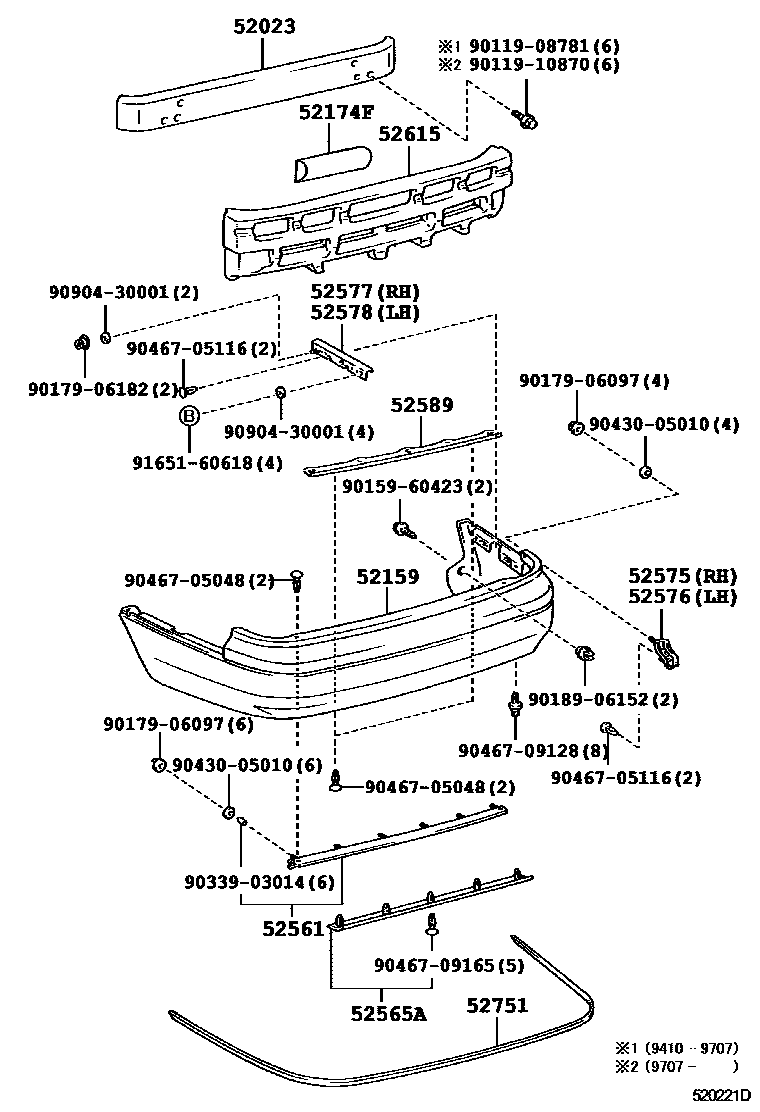

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
52174FREINFORCEMENT, REAR BUMPER, NO.4
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52589RETAINER, REAR BUMPER END, NO.2
52751MOULDING, REAR BUMPER
9011908781
main90119-08781
9011910870
main90119-10870
9015960423
main90159-60423
9017906097
main90179-06097
9017906182
main90179-06182
9018906152
main90189-06152
9033903014
main90339-03014
9043005010
main90430-05010
9046705048
main90467-05048
9046705116
main90467-05116
9046709128
main90467-09128
9046709165
main90467-09165
9090430001
main90904-30001
9165160618
main91651-60618
26 parts on this diagram · 1 diagram in section
