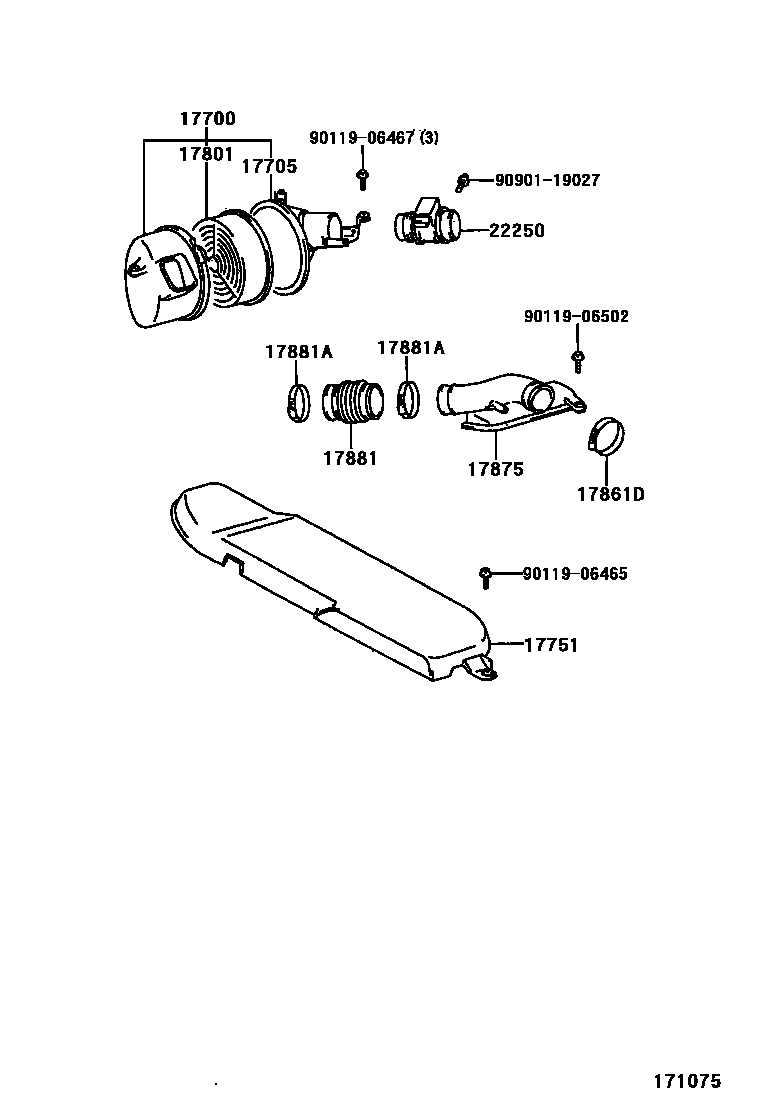

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-50100i1UZFE..UCF20199410-199707

main17700-50140i1UZFE..UCF20199707

17705CAP SUB-ASSY, AIR CLEANER

main17705-50060i1UZFE..UCF20199707

main17705-50070i1UZFE..UCF20199410-199707

17751INLET, AIR CLEANER, NO.1

main17750-50010i1UZFE..UCF20199410-199608

main17750-50011i1UZFE..UCF20199608-199707

main17750-50020i1UZFE..UCF20199707

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-50010i1UZFE..UCF20199410

17861DCLAMP(FOR INTAKE AIR CONNECTOR)

main90460-96001i1UZFE..UCF20199410-199707

sub96111-10950

17875PIPE, INTAKE AIR CONNECTOR

main17875-50111i1UZFE..UCF20199410-199508

main17875-50121i1UZFE..UCF20..USA199410-199508

CALIFORNIA SPEC

main17875-50121i1UZFE..UCF20199508-199707

main17875-50160i1UZFE..UCF20199707-199908

main17875-50161i1UZFE..UCF20199908

17881HOSE, AIR CLEANER, NO.1

main17881-50050i1UZFE..UCF20199410-199707

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-92001i1UZFE..UCF20199410-199707

PIPE SIDE

sub90460-92002

main90460-96001i1UZFE..UCF20199410-199707

AIR FLOW METER SIDE

sub96111-10950

22250METER ASSY, INTAKE AIR FLOW

main22250-50060i1UZFE..UCF20199410-199707

9011906465

main90119-06465

9011906467

main90119-06467

9011906502

main90119-06502

9090119027

main90901-19027

13 parts on this diagram · 2 diagrams in section
