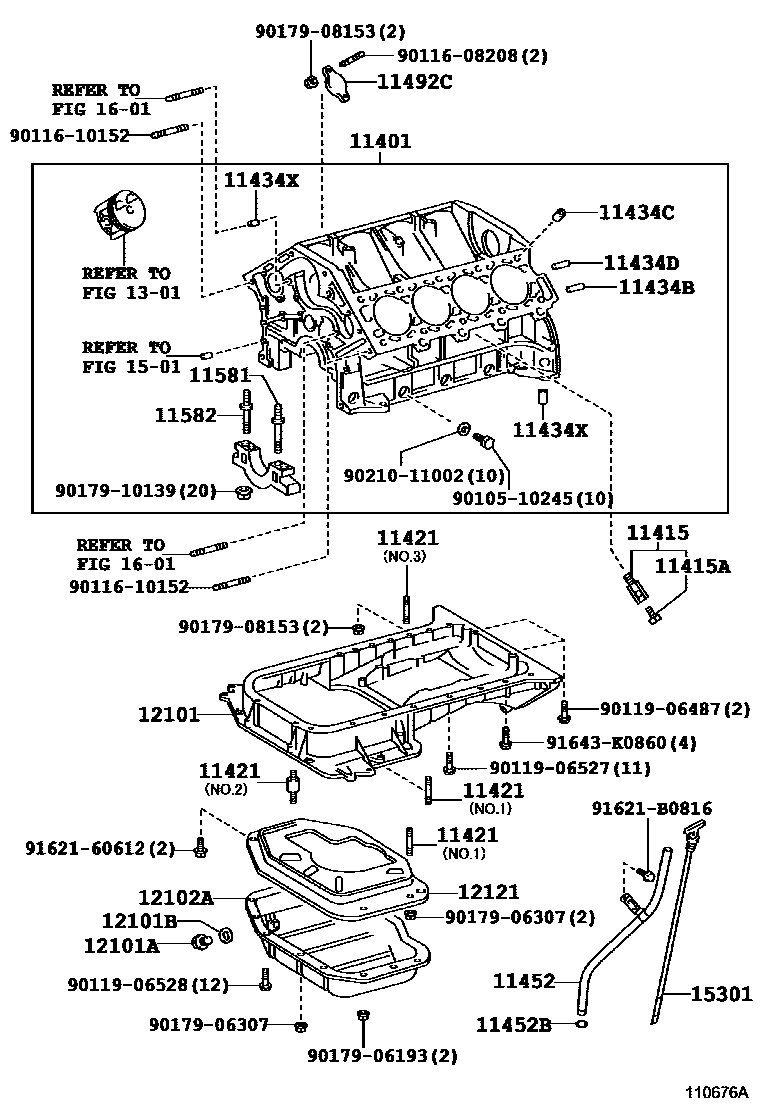

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11421BOLT, STUD(FOR OIL PAN)
NO.1
NO.2
NO.3
NO.3
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=20,OD=16
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11434XPIN, RING(FOR CHAIN CACE)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11492CPLATE, WATER SEAL
sub11492-20010
11581BOLT, CRANKSHAFT BEARING CAP, NO.1
11582BOLT, CRANKSHAFT BEARING CAP, NO.2
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1301
1501
15301GAGE SUB-ASSY, OIL LEVEL
1601
9010510245
main90105-10245
9011608208
main90116-08208
9011610152
main90116-10152
9011906487
main90119-06487
9011906527
main90119-06527
9011906528
main90119-06528
9017906193
main90179-06193
9017906307
main90179-06307
9017908153
main90179-08153
9017910139
main90179-10139
9021011002
main90210-11002
9162160612
main91621-60612
91621B0816
main91621-B0816
91643K0860
main91643-K0860
36 parts on this diagram · 2 diagrams in section
